52793-1870

ICC Number:	MOL52793-1870
Manufacturer:	Molex
Manufacturer Number:	52793-1870
Datasheet:	Datasheet
ECAD Model:

Description:

Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Right-Angle, Non-ZIF, Top Contact Style, 18 Circuits

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors FFC & FPC Connectors
Manufacturer:	Molex
Manufacturer Part Number:	Molex 52793-1870
Housing Material:	Polyphenylene Sulfide
Number of Contacts:	18
Contact Material:	Phosphor Bronze
Contact Plating:	Tin Bismuth
Pitch:	1 mm
Contact Orientation:	Top
Current Rating:	0.5 A
Voltage Rating:	50 V
Mated Stacking Height:	3.1 mm
Operating Temperature:	-20 to 85 °C
Mounting Angle:	Right Angle
Mounting Type:	Surface Mount
Insertion Force Type:	Non-ZIF
SKU:	MOL52793-1870

Detailed Description

The Molex Easy-On FFC/FPC Connector, part number 52793-1870, offers reliable performance in a compact design. With a low amperage rating of .5 A and a voltage of 50 V, this connector is perfect for small-scale applications. Featuring a right-angle body orientation and 1 mm pitch, it allows for efficient PCB connections in tight spaces. The phosphor bronze contact material with Tin-Bismuth plating ensures excellent conductivity and durability, even in harsh environments. With a wide operating temperature range of -20 to 85 °C and a minimum of 10 mating cycles, this connector is suitable for a variety of industrial and commercial uses. RoHS compliant and stackable, the Easy-On connector is a versatile and environmentally friendly choice for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 52793-1270	Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Right-Angle, Non-ZIF, Top Contact Style, 12 Circuits
	Molex 52806-0810	1.00mm Pitch Easy-On FFC/FPC Connector, Vertical, Surface Mount Compatible, Non-ZIF, Kinked PC Tails, 8 Circuits
	Molex 52808-0871	Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Vertical, Non-ZIF, Tin (Sn) Plating, with Pick-and-Place Polyimide Tape, 8 Circuits
	Molex 52808-1271	Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Vertical, Non-ZIF, Tin (Sn) Plating, with Pick-and-Place Polyimide Tape, 12 Circuits
	Molex 52808-1871	Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Vertical, Non-ZIF, Tin (Sn) Plating, with Pick-and-Place Polyimide Tape, 18 Circuits

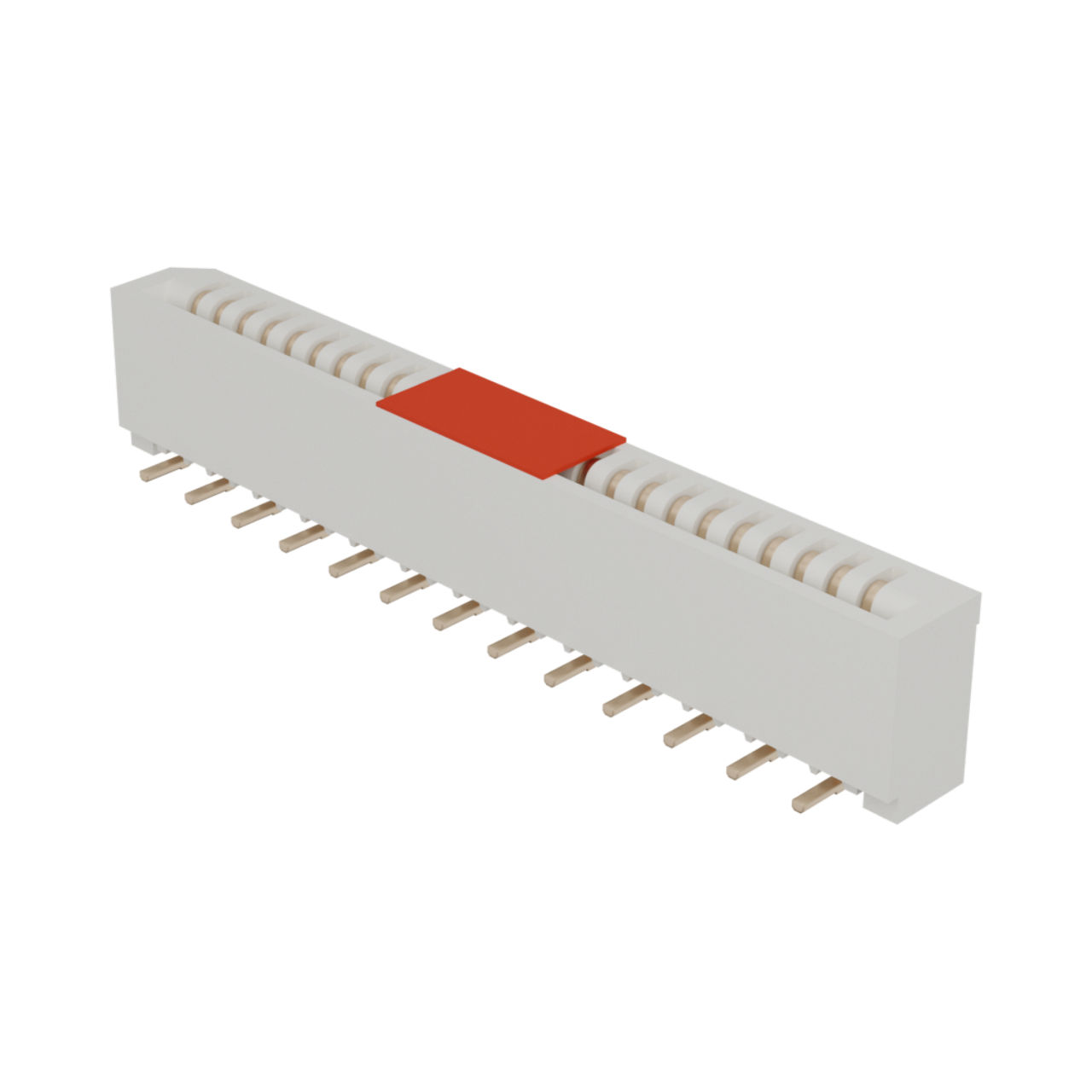

	Molex 52808-2571	Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Vertical, Non-ZIF, Tin (Sn) Plating, with Pick-and-Place Polyimide Tape, 25 Circuits
	Molex 70543-0036	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 2 Circuits, Tin (Sn) Plating
	Molex 70553-0036	2.54mm Pitch SL Header, Low Profile, Single Row, Right Angle, 3.05mm Pocket, Shrouded, 2 Circuits, Tin (Sn) Plating

Product Change Notice

Effective Date	Description of Change				Download
12/31/2017	502707 - Supplier Change. This letter is to inform you that Molex is adding a new supplier or the supplier is making a change affecting the part(s) identified in this notice. There will be no negative impact to product performance as a result of this change.				Download
06/11/2015	GCM 10662038 - Supplier Change.				Download
