| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 52271-1269 |
| Color: | Natural |
| Series: | 52271 |
| Amperage: | .5 A |
| Connector Type: | Easy-On |
| Housing Material: | Nylon |
| Number of Rows: | 1 |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| Body Orientation: | Right Angle |
| Pitch: | 1 mm |
| Voltage: | 50 V AC/DC |
| Material: | Nylon |
| Orientation: | Right Angle |
| Wire Type: | FFC/FPC |
| Actuator Type: | Slider |
| Operating Temperature Range: | -40 - 85 °C |
| Contact Mating Area Plating: | Gold |
| Number of Contacts Loaded: | 12 |
| Mating Cycles: | 30 |
| PCB Locator: | No |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Contact Termination Plating: | Tin |
| Termination Pitch: | 1 mm |
| Mated Height: | 3 mm |
| Stackable: | No |
| PCB Mount Alignment Type: | Surface Mount |
| Product Name: | Easy-On |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0522711269 |
| SKU: | MOL52271-1269 |
52271-1269
Specifications
Detailed Description
Introducing the 52271-1269, a high-performance Easy-On FFC/FPC Connector designed for seamless connectivity in electronic applications. With a 1.00mm Pitch and Slider Series configuration, this connector offers versatility and ease of use. Featuring Right-Angle, Bottom Contact layout and 3.00mm Height, it ensures reliable connections in tight spaces. Boasting 12 Circuits and Gold Plating, it guarantees excellent signal transmission. The Natural color and Nylon housing material provide durability and aesthetics. Crafted with Phosphor Bronze contacts and Gold plating, it ensures longevity and low contact resistance. With a wide operating temperature range of -40 to 85 °C and a voltage rating of 50 V AC/DC, it is suitable for various environments. RoHS compliant and with a mating cycle of 30, this connector is a reliable solution for your FFC/FPC connection needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 39-28-9128 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 12 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural |  |

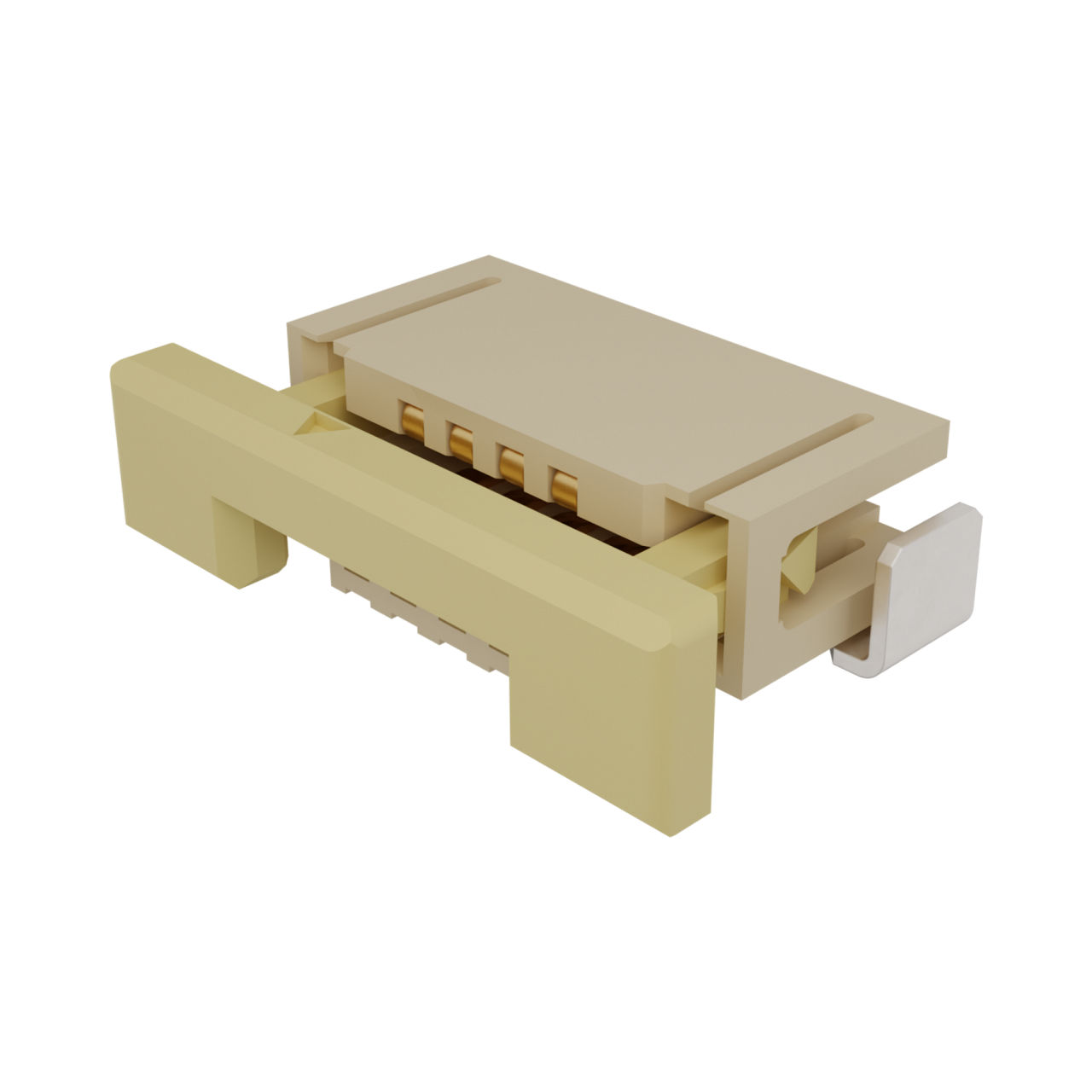

 | Molex 52271-0469 | Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 4 Circuits, Gold Plating | |
