| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 52207-1160 |
| Color: | Natural |
| Series: | 52207 |
| Amperage: | 1 A |
| Connector Type: | Easy-On |
| Housing Material: | Nylon |
| Number of Rows: | 1 |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -30 °C |
| Body Orientation: | Right Angle |
| Pitch: | 1 mm |
| Voltage: | 125 V |
| Material: | Nylon |
| Orientation: | Right Angle |
| Wire Type: | FFC/FPC |
| Actuator Type: | Slider |
| Tail Length: | 2 mm |
| Operating Temperature Range: | -30 - 85 °C |
| Contact Mating Area Plating: | Gold |
| Number of Contacts Loaded: | 11 |
| Mating Cycles: | 30 |
| PCB Locator: | No |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Contact Termination Plating: | Tin |
| Termination Pitch: | 1 mm |
| Mated Height: | 2.7 mm |
| Stackable: | No |
| PCB Mount Alignment Type: | Surface Mount |
| Product Name: | Easy-On |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0522071160 |
| SKU: | MOL52207-1160 |
52207-1160
Specifications
Detailed Description
Introducing the Molex Easy-On FFC/FPC Connector, featuring a 1.00mm pitch and belonging to the Slider Series. This right-angle connector with top contact design boasts 11 circuits and is meticulously crafted with gold plating for enhanced conductivity. With a compact 2.70mm height, it is perfect for space-constrained applications. Constructed with high-quality nylon housing and phosphor bronze contact material, this connector ensures durability and reliable performance. Operating efficiently in temperatures ranging from -30 to 85 °C, it is suitable for a wide range of environments. Ideal for FFC/FPC wire types, this connector is RoHS compliant and guarantees quality and compliance. With 11 contacts loaded and featuring PCB retention, it offers secure connectivity. Trust Molex for premium FFC/FPC connectors that meet your high-speed and high-density application needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

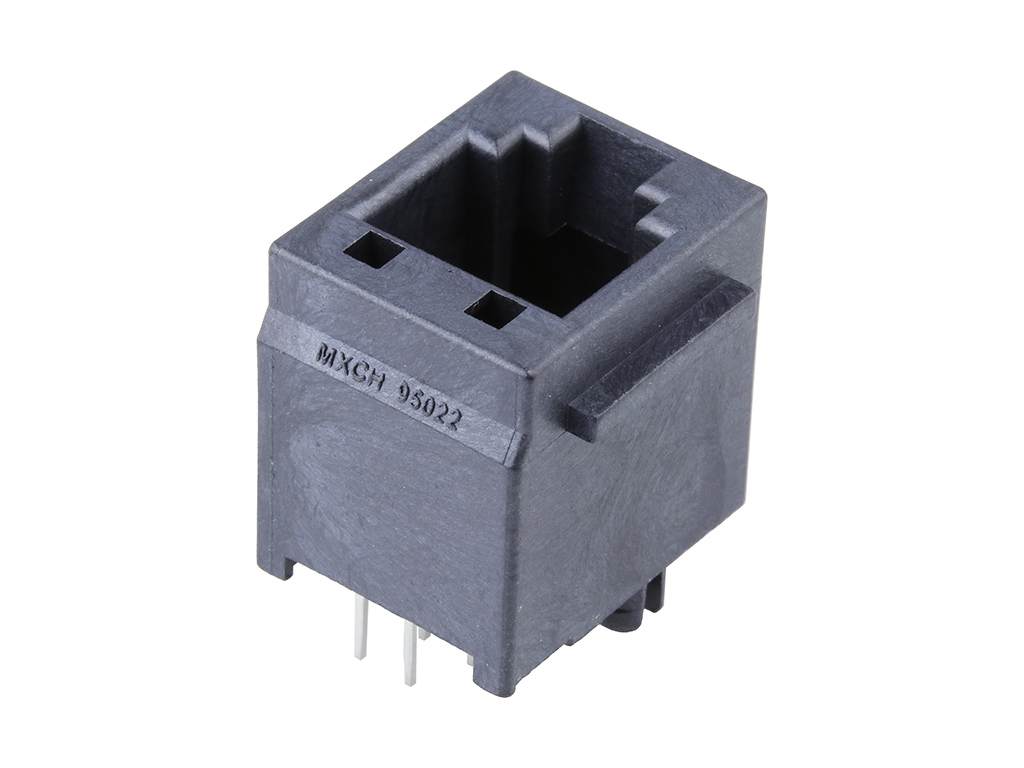

 | Molex 95522-2647 | Modular Jack, Vertical, Top Entry, Through Hole, 6/4, High Profile, with Ribs, Tray |  |
