| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 504050-0791 |
| Color: | Black |
| Series: | 504050 |
| Amperage: | 3 A |
| Connector Type: | Pico-Lock |
| Number of Contacts: | 7 |
| Number of Rows: | 1 |
| Termination Method: | Surface Mount |
| Contact Material: | Copper Alloy |
| Body Orientation: | Right Angle |
| Pitch: | 1.5 mm |
| Voltage: | 150 V |
| Material: | High Temperature Thermoplastic |
| Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Gold over Nickel |
| Number of Contacts Loaded: | 7 |
| Mating Cycles: | 30 |
| Connector System: | Wire to Board |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Mated Height: | 2 mm |
| Surface Mount Compatible: | Yes |
| Breakaway: | No |
| Make First / Break Last: | No |
| Product Name: | Pico-Lock |
| Part Aliases: | 5040500791 |
| SKU: | MOL504050-0791 |
504050-0791
Specifications
Detailed Description
Introducing the Pico-Lock Connector System, a reliable solution for wire-to-board and wire-to-wire connections in your electronic projects. This black, right-angle connector features 7 gold-plated copper alloy contacts, ensuring excellent conductivity with a low 3A rating. With a compact 1.5mm pitch and surface mount termination, it's ideal for space-constrained applications. Constructed from high-temperature thermoplastic, it offers durability in harsh environments, operating flawlessly between -40 and 105°C. RoHS compliant and with a mating cycle of 30, this connector guarantees both performance and environmental responsibility. Upgrade your PCB designs with the Pico-Lock for secure and efficient power and signal transmission.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

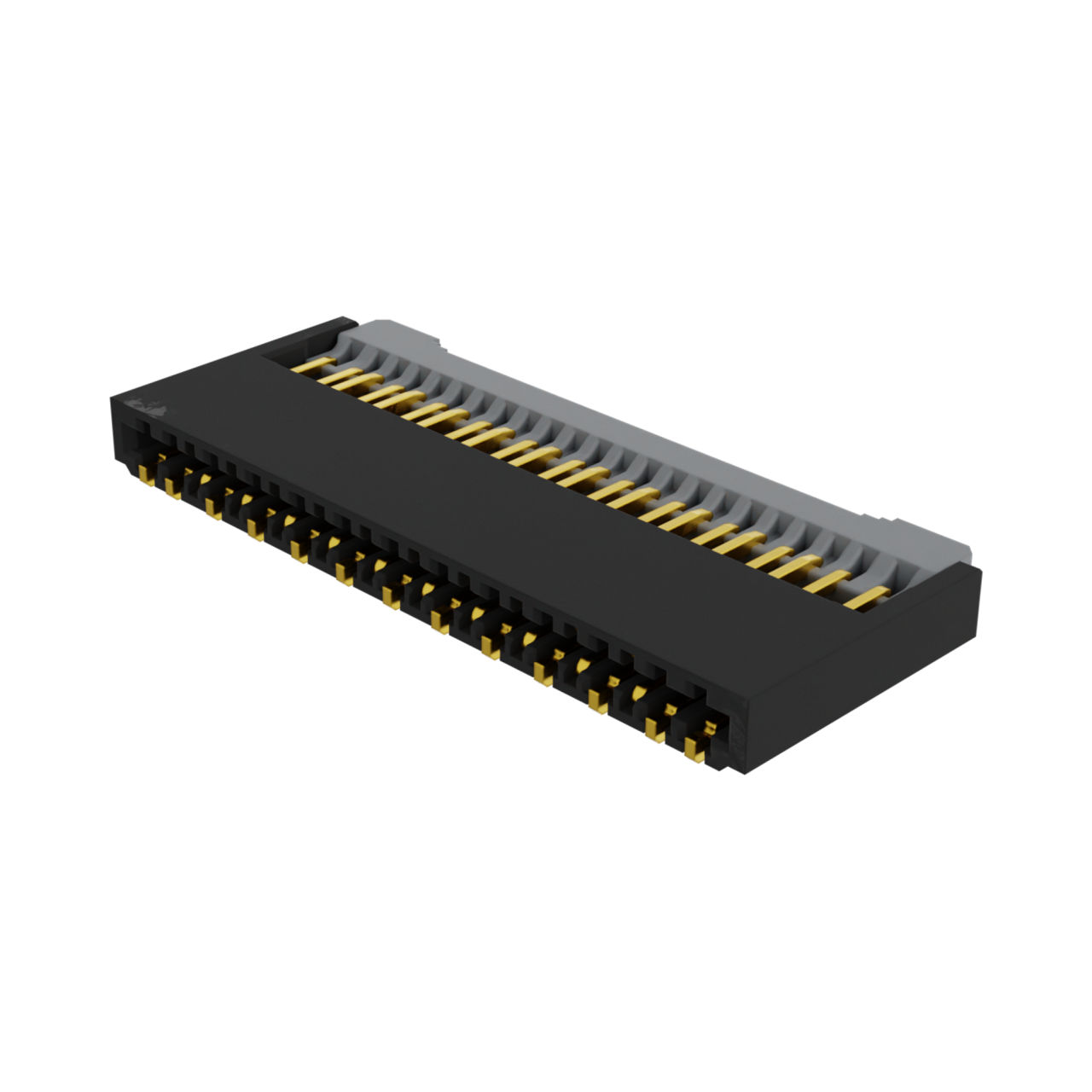

 | Molex 504754-2100 | 0.30mm Pitch Easy-On Back Flip FPC Connector with Lock Terminal, LA75 Series, Right-Angle, Surface Mount, Dual Contact Style, 0.75mm Height, 21 Circuits |  |
