| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 504050-0691 |
| Color: | Black |
| Series: | 504050 |
| Amperage: | 3 A |
| Connector Type: | Pico-Lock |
| Number of Contacts: | 6 |
| Number of Rows: | 1 |
| Termination Method: | Surface Mount |
| Contact Material: | Copper Alloy |
| Body Orientation: | Right Angle |
| Pitch: | 1.5 mm |
| Voltage: | 150 V |
| Material: | High Temperature Thermoplastic |
| Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Gold over Nickel |
| Number of Contacts Loaded: | 6 |
| Mating Cycles: | 30 |
| Connector System: | Wire to Board |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Mated Height: | 2 mm |
| Surface Mount Compatible: | Yes |
| Breakaway: | No |
| Make First / Break Last: | No |
| Product Name: | Pico-Lock |
| Part Aliases: | 5040500691 |
| SKU: | MOL504050-0691 |
504050-0691
| Heilind Number: | MOL504050-0691 |
| Manufacturer: | Molex |
| Manufacturer Number: | 504050-0691 |
| Datasheet: | Application Specification |
| ECAD Model: | |
Description:
1.50mm Pitch Pico-Lock Surface Mount Wire-to-Board Header, Right Angle, 2.00mm Mated Height, Positive Side Locks, 6 Circuits
More >>Specifications
Detailed Description
Introducing the Pico-Lock Connector System, a versatile and reliable solution for your wire-to-board and wire-to-wire connectivity needs. This black connector, featuring a right angle body orientation and six contacts, is designed for surface mount termination with a low amperage of 3A. Constructed with a durable high temperature thermoplastic housing and gold over nickel contact mating area plating, it ensures long-lasting performance even in harsh environments. With a pitch of 1.5mm and a voltage rating of 150V, this connector is suitable for a wide range of applications. RoHS compliant and with a mating cycle of 30, it guarantees both environmental sustainability and durability. Upgrade your PCB connectivity with the Pico-Lock Connector System.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-50-0105 | KK® 396 Crimp Terminal 2478, 18-24 AWG, Reel, Brass Tin (Sn) |  |
 | Molex 09-50-7061 | KK 3.96mm Crimp Terminal Housing, 6 Circuits, Natural | |

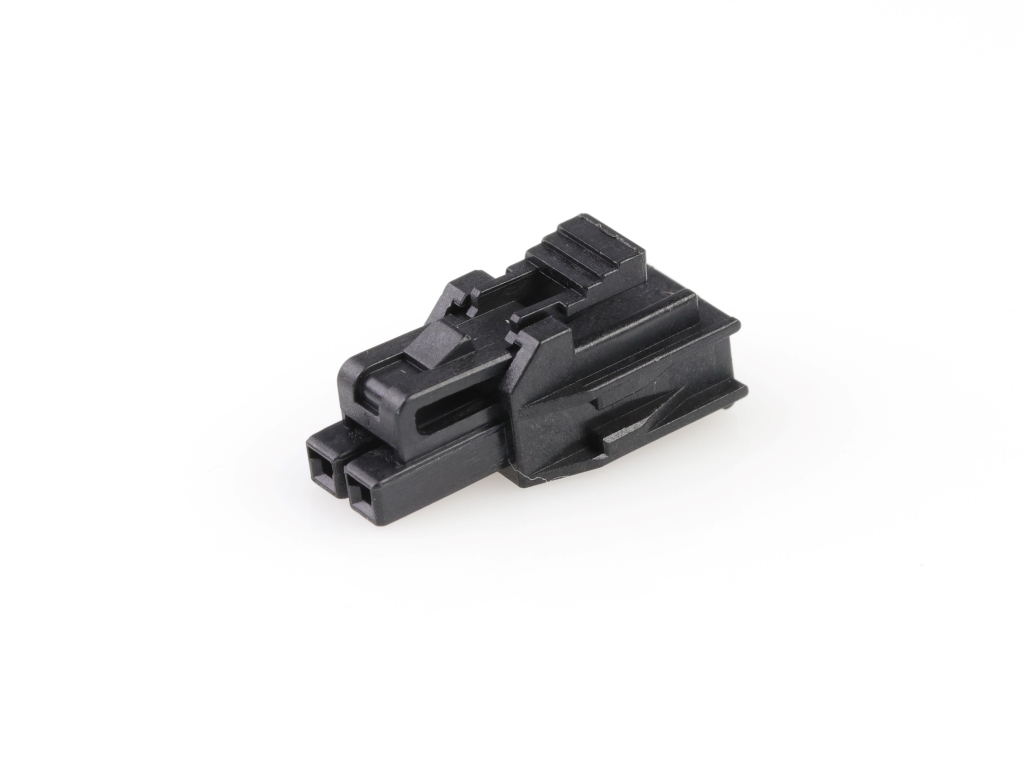

 | Molex 105307-1202 | Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Single Row, 2 Circuits, Black, Glow-Wire Capable | |
 | Molex 105307-1204 | Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Single Row, 4 Circuits, Black, Glow-Wire Capable | |
 | Molex 43025-0400 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43045-0407 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black | |
 | Molex 43045-0816 | Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 8 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black | |
 | Molex 43249-8104 | Modular Jack, Right Angle, Low Profile, 8/8, Panel Stops | |

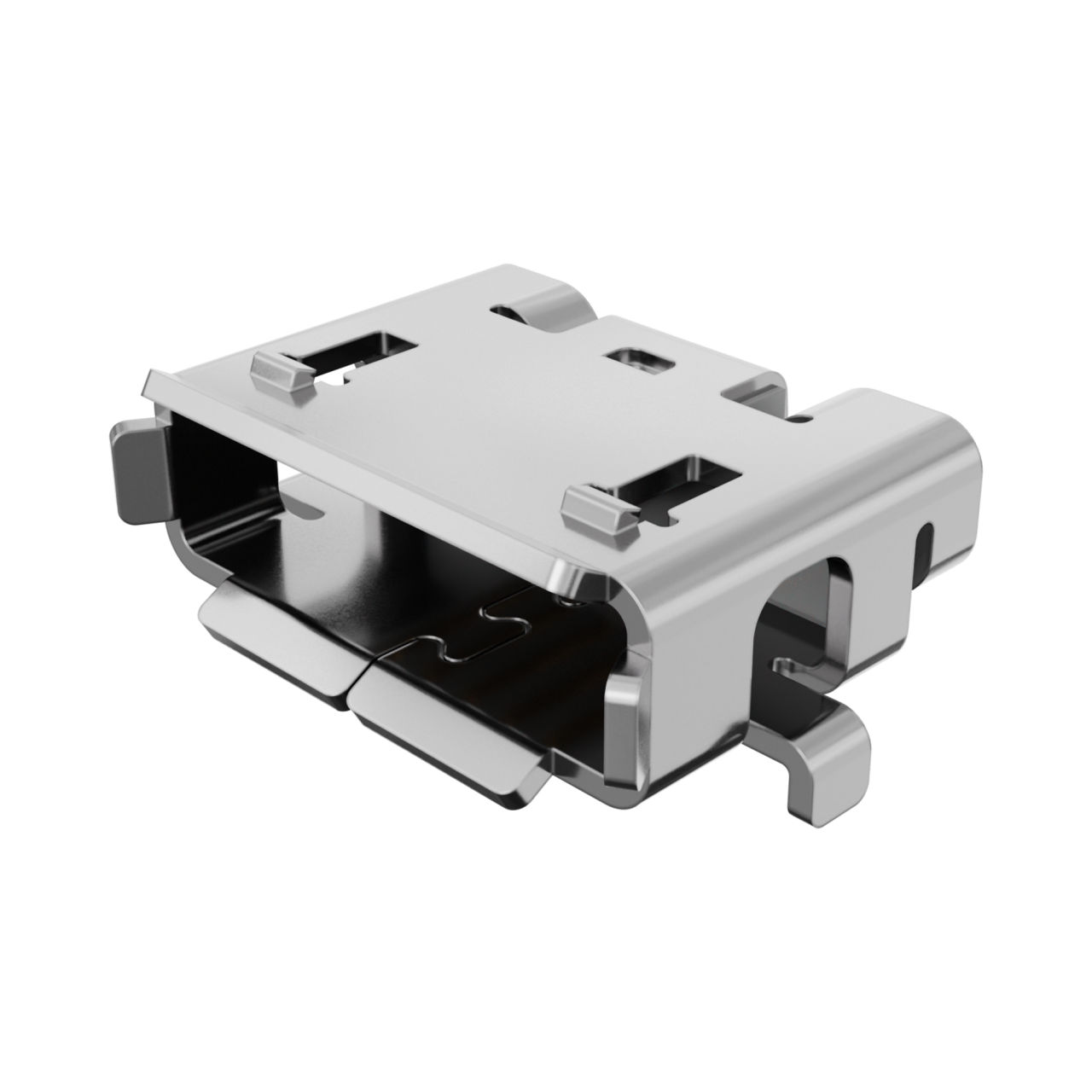

 | Molex 47589-0001 | Micro-USB AB Receptacle, Bottom Mount, Surface Mount, Lead-Free | |
 | Molex 502570-0893 | 1.10mm Pitch microSD Memory Card Connector, Normal Mount Surface Mount, Push-Push Type | |
 | Molex 504050-0691 | Cut Strip - 1.50mm Pitch, Pico-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Gold (Au) Plating, Positive Lock, 6 Circuits, Tape and Reel | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 05/30/2025 | 516083 - Manufacturing Process Change. removal of Hi-coat on listed series it will make the series PFAS free to meet foreseen industry requirement from store | Download | |||
| 03/28/2025 | 516649 - Partial Retraction of PCN 516083. Molex Malaysia is revising the decision to retract/ withdraw 503763, 504050, 205338 PCN#516083 due to the removal hi-coat will not implement yet. | Download | |||
| 06/05/2018 | 503199 - Supplier Change. This letter is to inform you that Molex is adding a new supplier or the supplier is making a change affecting the part(s) identified in this notice. There will be no negative impact to product performance as a result of this change. | Download | |||
| 09/30/2016 | 501325 - Supplier Change. This letter is to inform you that Molex is adding a new supplier or the supplier is making a change affecting the part(s) identified in this notice. There will be no negative impact to product performance as a result of this change. | Download | |||
