503480-0800

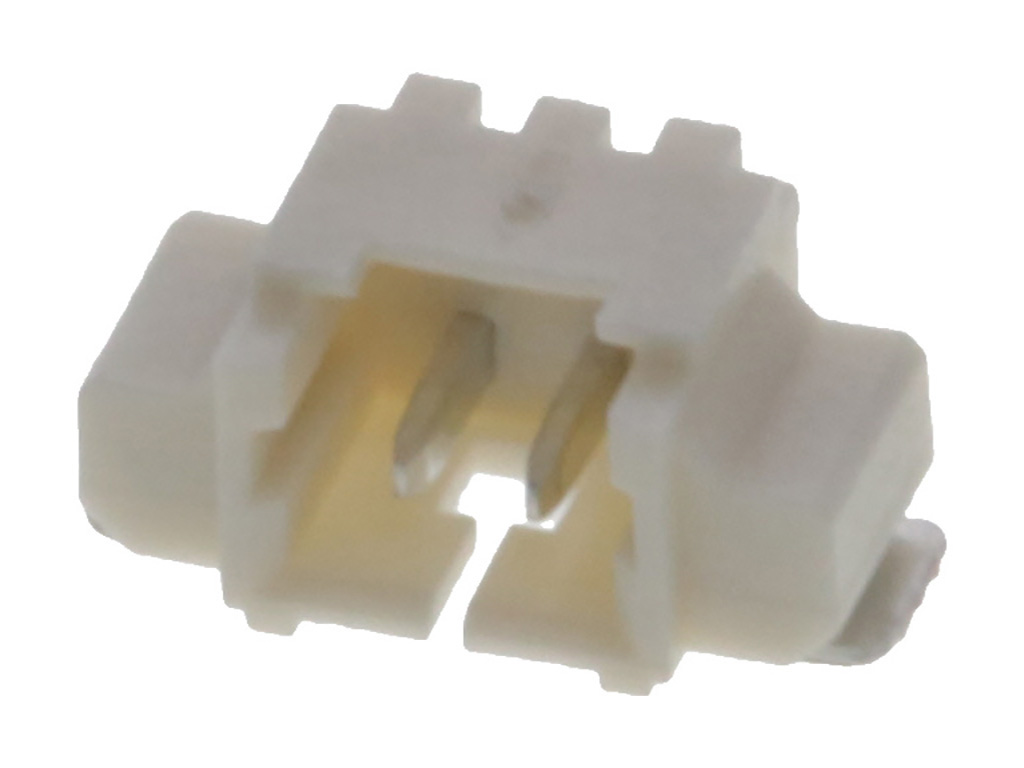

Easy-On FFC/FPC Connector, 0.50mm Pitch, FBH1 Series, Right-Angle, Dual Contact, 1.00mm Height, 8 Circuits, Gold over Nickel Plating
Part Aliases: Molex 5034800800
The Molex Easy-On FFC/FPC Connector, part number 503480-0800, offers a convenient and reliable solution for your flexible circuitry needs. With a narrow 0.50mm pitch and a low profile 1.00mm height, this right-angle connector is perfect for space-constrained applications. Featuring 8 gold-plated contacts for enhanced conductivity and signal integrity, it is suitable for high-speed data transmission. Constructed with a durable Liquid Crystal Polymer housing and phosphor bronze contacts, it ensures long-lasting performance even in harsh environments. RoHS compliant and lead-free reflow solder compatible, this connector is not only environmentally friendly but also easy to integrate into your manufacturing process. Trust in the Molex FBH1 Series connector for secure and efficient board-to-board or cable-to-board connections in your electronic devices.
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 503480-0800 |
| Color: | Natural (White) |
| Series: | 503480 |
| Amperage: | .5 A |
| Connector Type: | Easy-On |
| Housing Material: | Liquid Crystal Polymer |
| Number of Rows: | 1 |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Gold Over Nickel |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| Body Orientation: | Right Angle |
| Pitch: | 5 mm |
| Voltage: | 50 V AC/DC |
| Material: | Liquid Crystal Polymer |
| Orientation: | Right Angle |
| Wire Type: | FPC |
| Actuator Type: | Flip |
| Operating Temperature Range: | -40 - 85 °C |
| Contact Mating Area Plating: | Gold over Nickel |
| Number of Contacts Loaded: | 8 |
| Mating Cycles: | 10 |
| PCB Locator: | No |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Contact Termination Plating: | Gold over Nickel |
| Maximum Solder Process Temperature: | 250 °C |
| Lead Free Process Capability: | REFLOW |
| Duration at Max. Process Temperature (seconds): | 003 |
| Max. Cycles at Max. Process Temperature: | 002 |
| Mated Height: | 1 mm |
| Stackable: | No |
| PCB Mount Alignment Type: | Surface Mount |
| Product Name: | Easy-On |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 5034800800 |
| SKU: | MOL503480-0800 |
