| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 503149-1800 |
| Color: | Beige |
| Series: | 503149 |
| Amperage: | 2 A |
| Connector Type: | CLIK-Mate |
| Gender: | Plug |
| Number of Contacts: | 18 |
| Number of Rows: | 2 |
| Pitch: | 1.5 mm |
| Keying: | Yes |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Signal |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Product Name: | CLIK-Mate |
| Part Aliases: | 5031491800 |
| SKU: | MOL503149-1800 |
503149-1800
Specifications
Detailed Description
Introducing the 503149-1800 CLIK-Mate Wire-to-Board Connector, a crucial component for your signal circuit applications. This beige connector features 18 contacts arranged in 2 rows, with a low amperage of 2A, perfect for efficient power delivery. Designed for durability, it is UL certified and RoHS compliant, with an operating temperature range of -40 to 105°C. The 1.5mm pitch and keying mechanism ensure secure and accurate connections, while the locking feature adds extra stability. Whether you're working on consumer electronics or industrial machinery, this connector guarantees reliable performance in any environment. Upgrade your connectivity solutions with the CLIK-Mate Wire-to-Board Connector.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105300-2300 | Nano-Fit Crimp Terminal, Female, 0.76 |  |

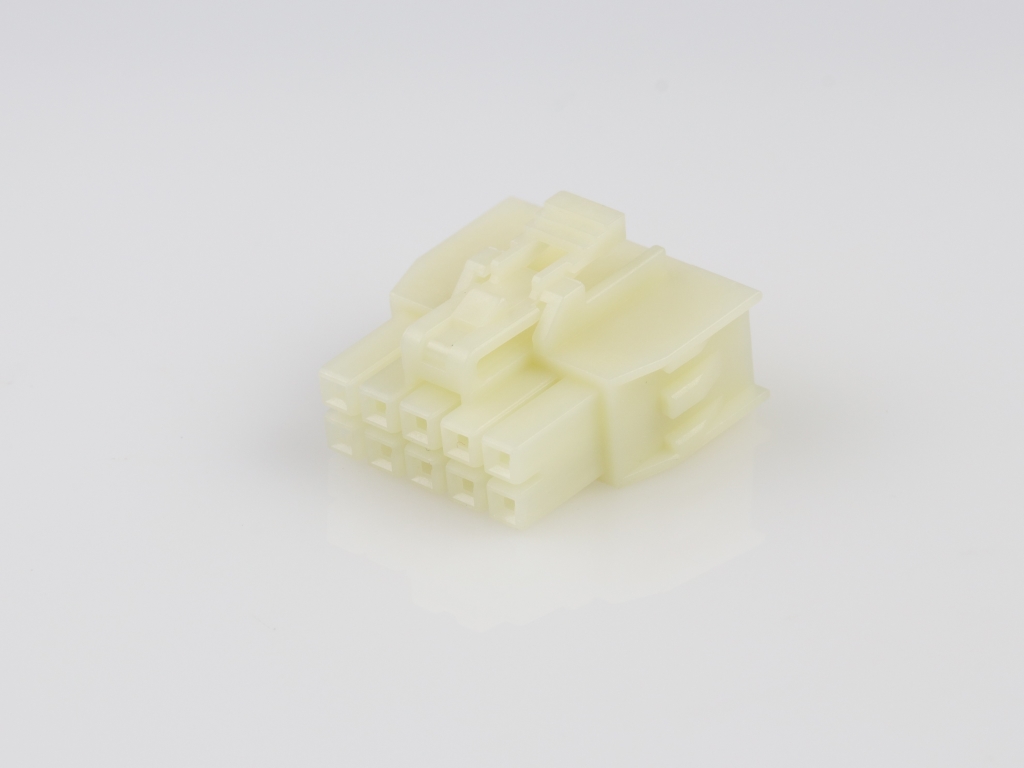

 | Molex 105308-2210 | Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Dual Row, 10 Circuits, Natural, Glow-Wire Capable | |
 | Molex 173111-0060 | FCT Metal Backshell for D-Sub Connector, Shell Size 2, Straight Large Diameter Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 50-37-5083 | 2.50mm Pitch Mini-SPOX Wire-to-Board Crimp Housing, Friction Lock, 8 Circuits, Natural | |
 | Molex 502578-0500 | CLIK-Mate Wire-to-Board Housing, Single Row, Positive Lock, 5 Circuits, Beige | |
 | Molex 502578-0600 | CLIK-Mate Wire-to-Board Housing, Single Row, Positive Lock, 6 Circuits, Beige | |

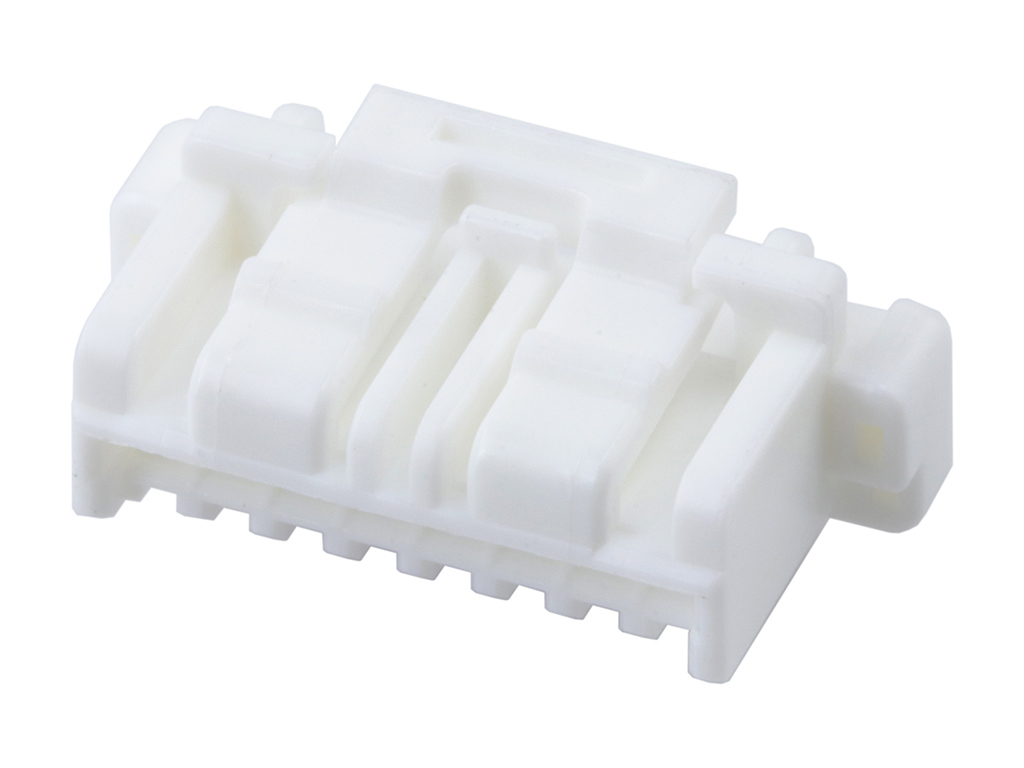

 | Molex 502578-0800 | CLIK-Mate Wire-to-Board Housing, Single Row, Positive Lock, 8 Circuits, Beige | |
 | Molex 502579-0000 | CLIK-Mate 1.50mm Pitch Wire-to-Board Crimp Terminal, Tin Plating, 24-28 AWG, Reel | |
 | Molex 503149-0800 | 1.50mm Pitch CLIK-Mate Wire-to-Board Housing, Dual Row, Positive Lock, 8 Circuits, Beige | |
 | Molex 503149-1000 | 1.50mm Pitch CLIK-Mate Wire-to-Board Housing, Dual Row, Positive Lock, 10 Circuits, Beige | |

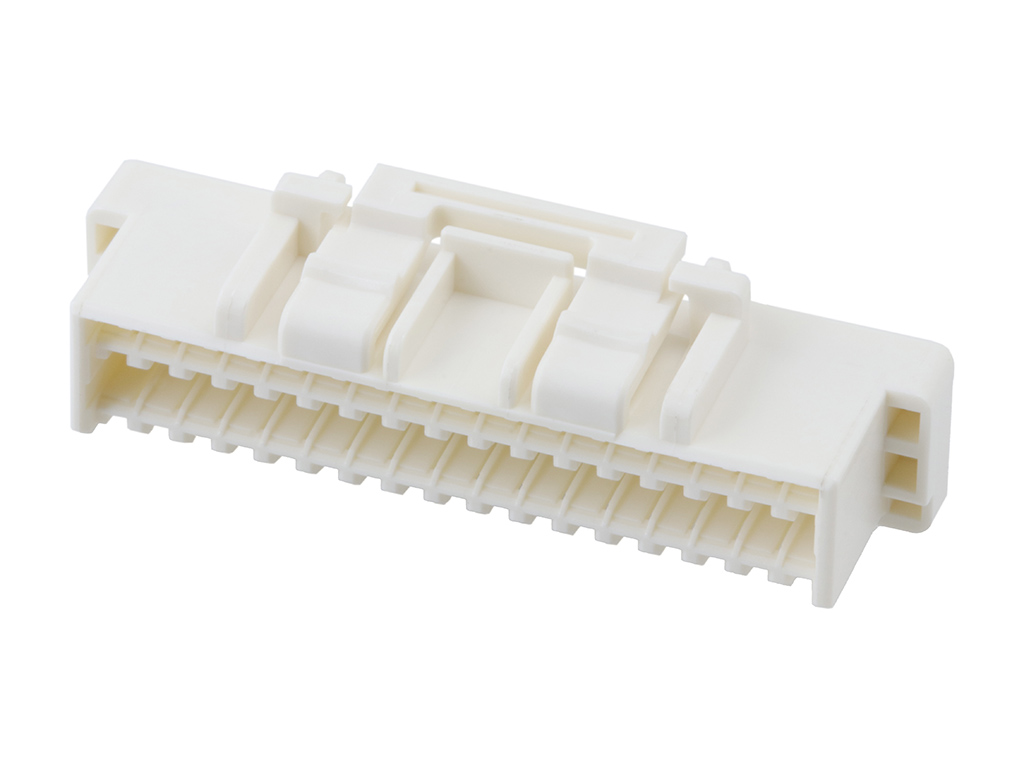

 | Molex 503149-3400 | 1.50mm Pitch CLIK-Mate Wire-to-Board Housing, Dual Row, Positive Lock, 34 Circuits, Beige | |
