| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 50-57-9313 |
| Color: | Black |
| Series: | 70066 |
| Amperage: | 3 A |
| Connector Type: | SL |
| Gender: | Receptacle |
| Number of Contacts: | 13 |
| Number of Rows: | 1 |
| Pitch: | 2.54 mm |
| Material: | Polyester Alloy |
| Keying: | Yes |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Signal |
| Connector System: | Wire to Board |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Stackable: | Yes |
| Product Name: | SL |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0050579313 70066-0117 |
| SKU: | MOL50-57-9313 |
50-57-9313
| Heilind Number: | MOL50-57-9313 |
| Manufacturer: | Molex |
| Manufacturer Number: | 50-57-9313 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the Molex SL Crimp Housing, a versatile connector designed for wire-to-board applications. This single-row housing, featuring 13 circuits, is crafted from durable black polyester alloy with back ribs for added strength. With a pitch of 2.54mm and operating temperatures ranging from -40 to 105°C, it is suitable for a wide range of signal transmission tasks. The SL connector, part of the 70066 series, is RoHS compliant and stackable, offering convenience and flexibility in assembly. Its keying feature ensures proper alignment, while its low amperage rating of 3A makes it ideal for various electronic devices. Trust in the reliability and performance of the Molex SL Crimp Housing for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 22-55-2141 | 2.54mm Pitch SL Crimp Housing, Dual Row, Version A, Non-polarized, 14 Circuits, Black |  |
 | Molex 39-01-2105 | Mini-Fit Jr. Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Natural | |

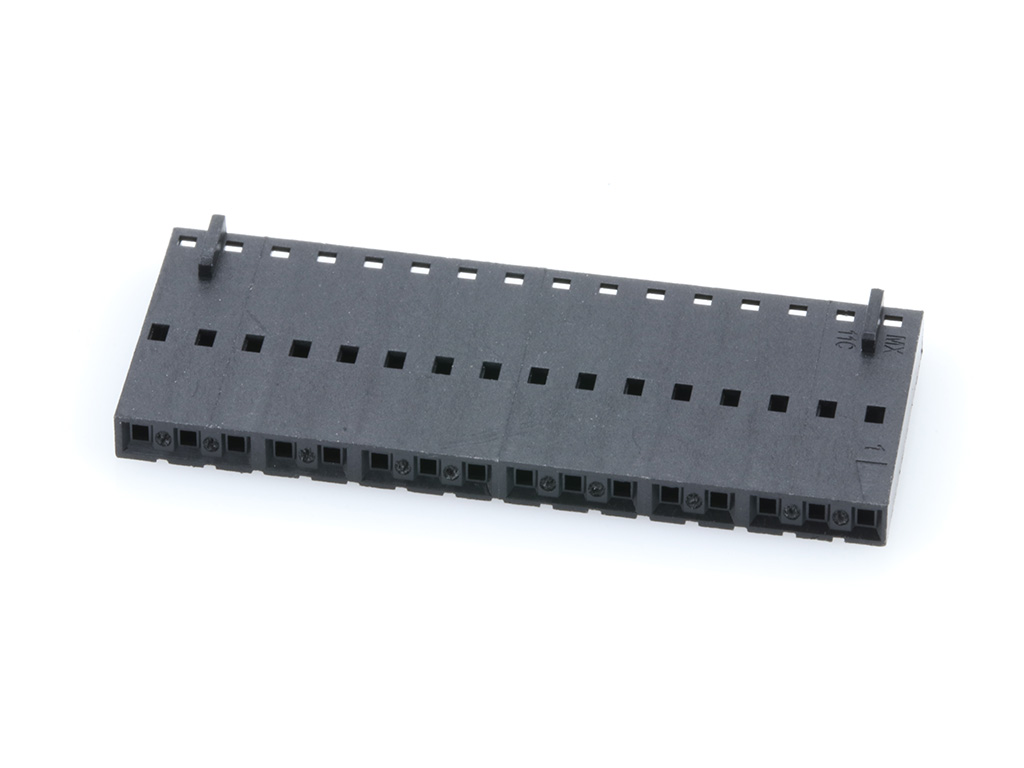

 | Molex 50-57-9316 | SL Crimp Housing, Single Row, Version D, Back Ribs, 16 Circuits, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/28/2022 | 510396 - Packaging method/Quantity Changing. previously not following standard packaging, correct DU size following general packaging. no impact to form fit or function. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 50-57-9313 |
| Other Names: | 0050579313 70066-0117 |
