50-57-9303

Heilind Number:	MOL50-57-9303
Manufacturer:	Molex
Manufacturer Number:	50-57-9303
Datasheet:	Product Specification
ECAD Model:

Description:

SL Crimp Housing, Single Row, Version D, Back Ribs, 3 Circuits, Black

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 50-57-9303
Color:	Black
Series:	70066
Amperage:	3 A
Connector Type:	SL
Gender:	Receptacle
Number of Contacts:	3
Number of Rows:	1
Pitch:	2.54 mm
Material:	Polyester Alloy
Keying:	Yes
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Signal
Connector System:	Wire to Board
Glow Wire Capable:	No
Lock to Mating Part:	No
Stackable:	Yes
Product Name:	SL
Material Flammability Standard:	94V-0
Part Aliases:	0050579303 70066-0107
SKU:	MOL50-57-9303

Detailed Description

Introducing the 50-57-9303, a single-row SL Crimp Housing designed for reliable wire-to-board connections in signal applications. With 3 circuits and a pitch of 2.54mm, this black housing features back ribs for added stability. Crafted from a durable polyester alloy, it ensures longevity even in harsh environments with an operating temperature range of -40 to 105°C. RoHS compliant and stackable, the 50-57-9303 offers convenience and peace of mind. Perfect for use in various electronic devices, this connector is a dependable solution for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 08-52-0112	KK Trifurcon Crimp Terminal 6838, 18-20 AWG, Reel, Phosphor Bronze Tin(Sn)
	Molex 08-65-0815	KK 254 Crimp Terminal 6459, 22-30 AWG, Reel, Phosphor Bronze Selective Gold (Au)
	Molex 15-04-5061	2.54mm SL Interim Clip, 6 Circuits

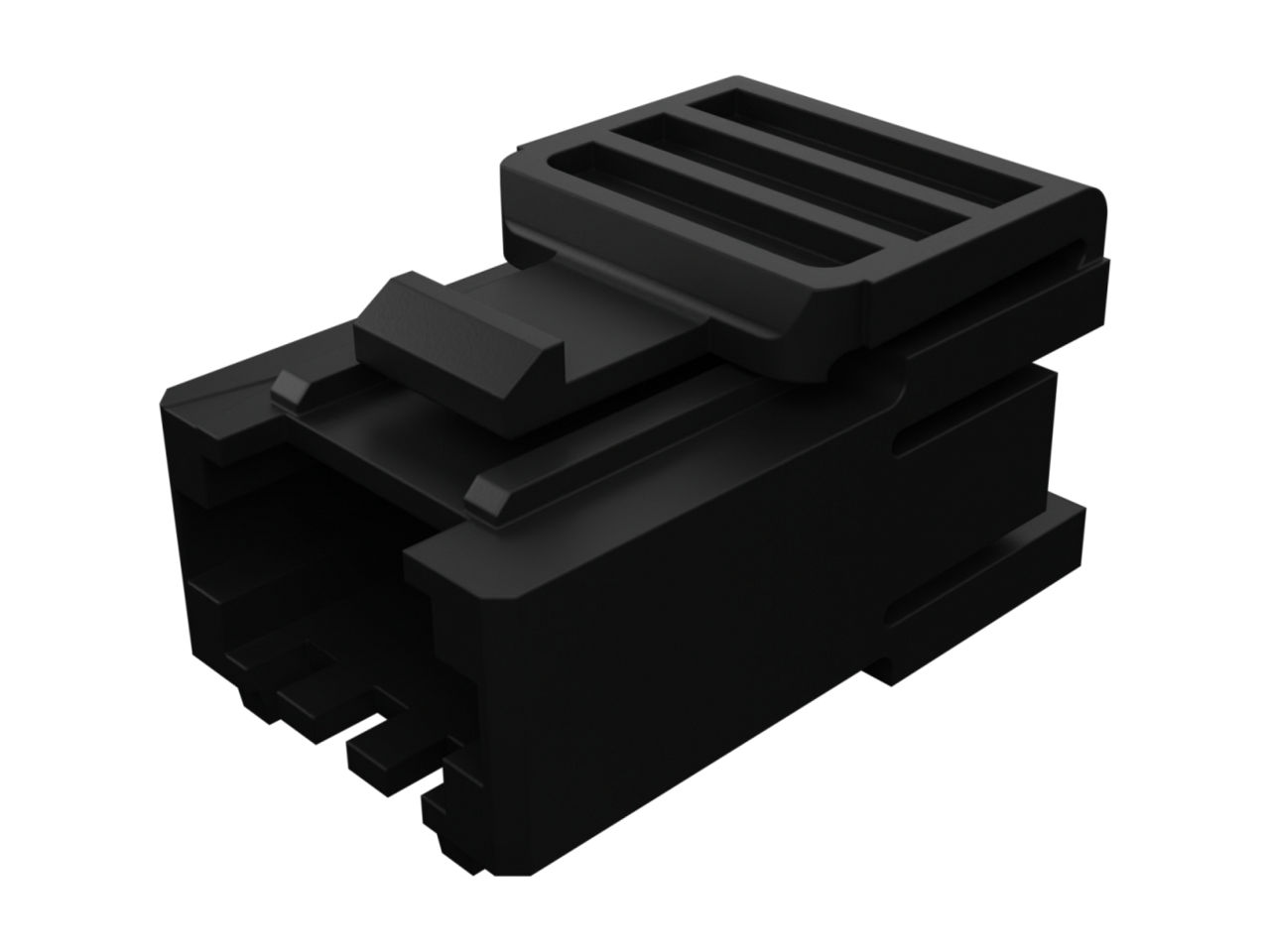

	Molex 15-04-5064	2.54mm SL Interim Clip, 6 Circuits, Polarized
	Molex 15-04-5084	2.54mm SL Interim Clip, 8 Circuits, Polarized
	Molex 15-04-5104	2.54mm SL Interim Clip, 10 Circuits, Polarized
	Molex 15-04-5204	2.54mm SL Interim Clip, 20 Circuits, Polarized
	Molex 16-02-0110	SL Crimp Terminal, Series 70021, Male, with 0.76µm Selective Gold (Au) Plated Contact, 30-24 AWG
	Molex 16-02-1124	SL Crimp Terminal, Series 71851, Female, with 0.38µm Selective Gold (Au) Plated Contact, 24-22 AWG, Reel
	Molex 19070-0033	InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire
	Molex 22-55-2083	2.54mm Pitch SL Crimp Housing, Dual Row, Version C, Back Ribs, 8 Circuits, Black
	Molex 39-00-0059	Mini-Fit Female Crimp Terminal, Tin (Sn) over Phosphor Bronze, Double 22+22 or Single 24-18 AWG, Reel
	Molex 39-00-0181	Mini-Fit Female Crimp Terminal, Selective Gold (Au) over Phosphor Bronze, 24-18 AWG, Reel
	Molex 39-00-0183	Mini-Fit Female Crimp Terminal, Selective Gold (Au) over Phosphor Bronze, 28-22 AWG, Reel
	Molex 39-01-2040	Mini-Fit Jr. Receptacle Housing, Dual Row, 4 Circuits, UL 94V-2, Natural
	Molex 50-57-9403	SL Crimp Housing, Single Row, Version G, Positive Latch, 3 Circuits, Black
	Molex 50-57-9404	SL Crimp Housing, Single Row, Version G, Positive Latch, 4 Circuits, Black

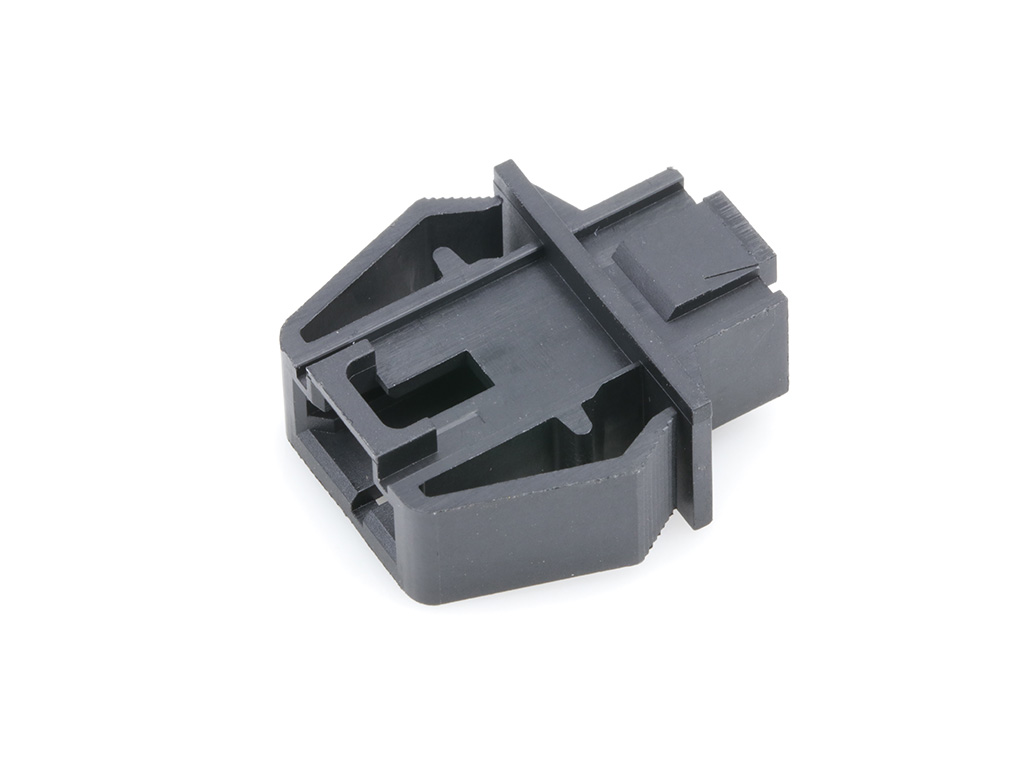

	Molex 50-65-0203	2.54mm Pitch, SL Single Row Wire-to-Wire Panel Mount, 3 Circuits

Product Change Notice

Effective Date	Description of Change				Download
02/28/2022	510396 - Packaging method/Quantity Changing. previously not following standard packaging, correct DU size following general packaging. no impact to form fit or function.				Download
03/31/2020	507616 - Equipment Transfer, Production Transfer or Rearrangement. This letter is to inform you that production of the part(s) identified in this notice is being moved to a different production location. No changes will be made to the product as a result of this move.				Download
