50-57-9003

Heilind Number:	MOL50-57-9003
Manufacturer:	Molex
Manufacturer Number:	50-57-9003
Datasheet:	Product Specification
ECAD Model:

Description:

SL Crimp Housing, Single Row, Version A, Non-polarized, 3 Circuits, Black

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 50-57-9003
Color:	Black
Series:	70066
Amperage:	3 A
Connector Type:	SL
Gender:	Receptacle
Number of Contacts:	3
Number of Rows:	1
Pitch:	2.54 mm
Material:	Polyester Alloy
Keying:	No
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Signal
Connector System:	Wire to Board
Glow Wire Capable:	No
Lock to Mating Part:	No
Stackable:	Yes
Product Name:	SL
Material Flammability Standard:	94V-0
Part Aliases:	0050579003 70066-0002
SKU:	MOL50-57-9003

Detailed Description

Introducing the 50-57-9003 SL Crimp Housing, a single-row connector designed for signal applications. This black housing, part of the 70066 series, features three circuits with a low amperage rating of 3A. Constructed from a durable polyester alloy, it offers reliable performance in a wide operating temperature range from -40 to 105°C. With a 2.54mm pitch and stackable design, this connector is versatile and easy to use in wire-to-board setups. RoHS compliant and non-polarized, it ensures compatibility and safety in various electronic systems. Upgrade your connectivity with the SL Crimp Housing for efficient wire management.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 10-84-4032	6.35mm Pitch MLX Power Connector, 2.13mm Contact Diameter, Vertical, PA Polyamide (Nylon) 6/6, Tin (Sn), White, 3 Circuits
	Molex 105307-1204	Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Single Row, 4 Circuits, Black, Glow-Wire Capable
	Molex 15-04-0292	Universal Polarizing Key, Black
	Molex 16-02-0096	SL Crimp Terminal, Series 70058, Female, 30-24 AWG, with Tin (Sn) Plated Contact
	Molex 16-02-0103	SL Crimp Terminal, Series 70058, Female, 24-22 AWG, with 0.38µm Selective Gold (Au) Plated Contact
	Molex 19003-0068	InsulKrimp Quick Disconnect, Female, for 24-26 (0.20-0.12mm?), Box, Tab 4.75 x 0.81mm
	Molex 39-00-0038	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel
	Molex 39-00-0039	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 24-18 AWG
	Molex 43025-2200	Micro-Fit 3.0 Receptacle Housing, Dual Row, 22 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43645-0200	Micro-Fit 3.0 Receptacle Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 50-37-5023	2.50mm Pitch Mini-SPOX Wire-to-Board Crimp Housing, Friction Lock, 2 Circuits
	Molex 50-57-9002	SL Crimp Housing, Single Row, Version A, Non-polarized, 2 Circuits, Black

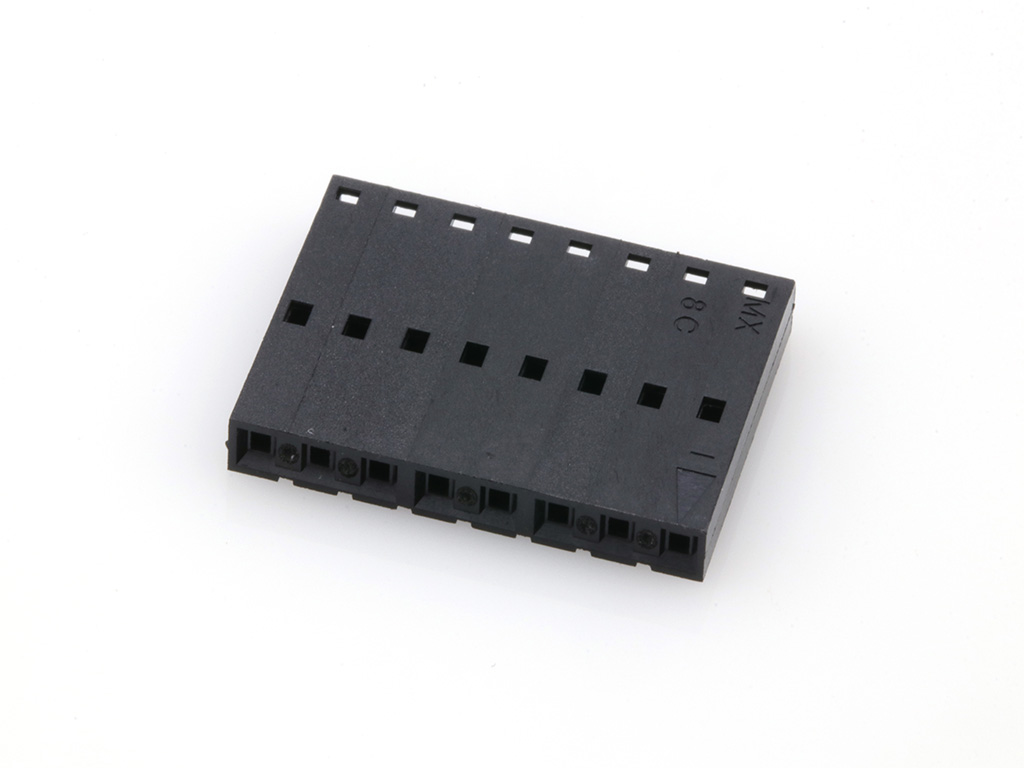

	Molex 50-57-9008	SL Crimp Housing, Single Row, Version A, Non-polarized, 8 Circuits, Black
