| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 48037-0001 |
| Series: | 48037 - USB 2.0 |
| Amperage: | 1.5 A |
| Connector Type: | USB |
| Gender: | Male |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Mount Type: | Panel Mount |
| Termination Method: | Through Hole |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -20 °C |
| Body Orientation: | Right Angle |
| Pitch: | 2 mm, 2.5 mm |
| Voltage: | 150 V AC/DC |
| Shield Type: | Full Shield |
| Number of Ports: | 1 |
| Orientation: | Right Angle |
| Keying: | Yes |
| USB Type: | A |
| Component Type: | Plug |
| Tail Length: | 2.4 mm |
| Operating Temperature Range: | -20 - 85 °C |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Number of Contacts Loaded: | 4 |
| Panel Mount: | Yes |
| PCB Locator: | Yes |
| Shielded: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.2 mm, 1.6 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Termination Pitch: | 2 mm, 2.5 mm |
| Lock to Mating Part: | Yes |
| Surface Mount Compatible: | No |
| Waterproof Dustproof: | No |
| Part Aliases: | 0480370001 |
| SKU: | MOL48037-0001 |
48037-0001
Specifications
Detailed Description

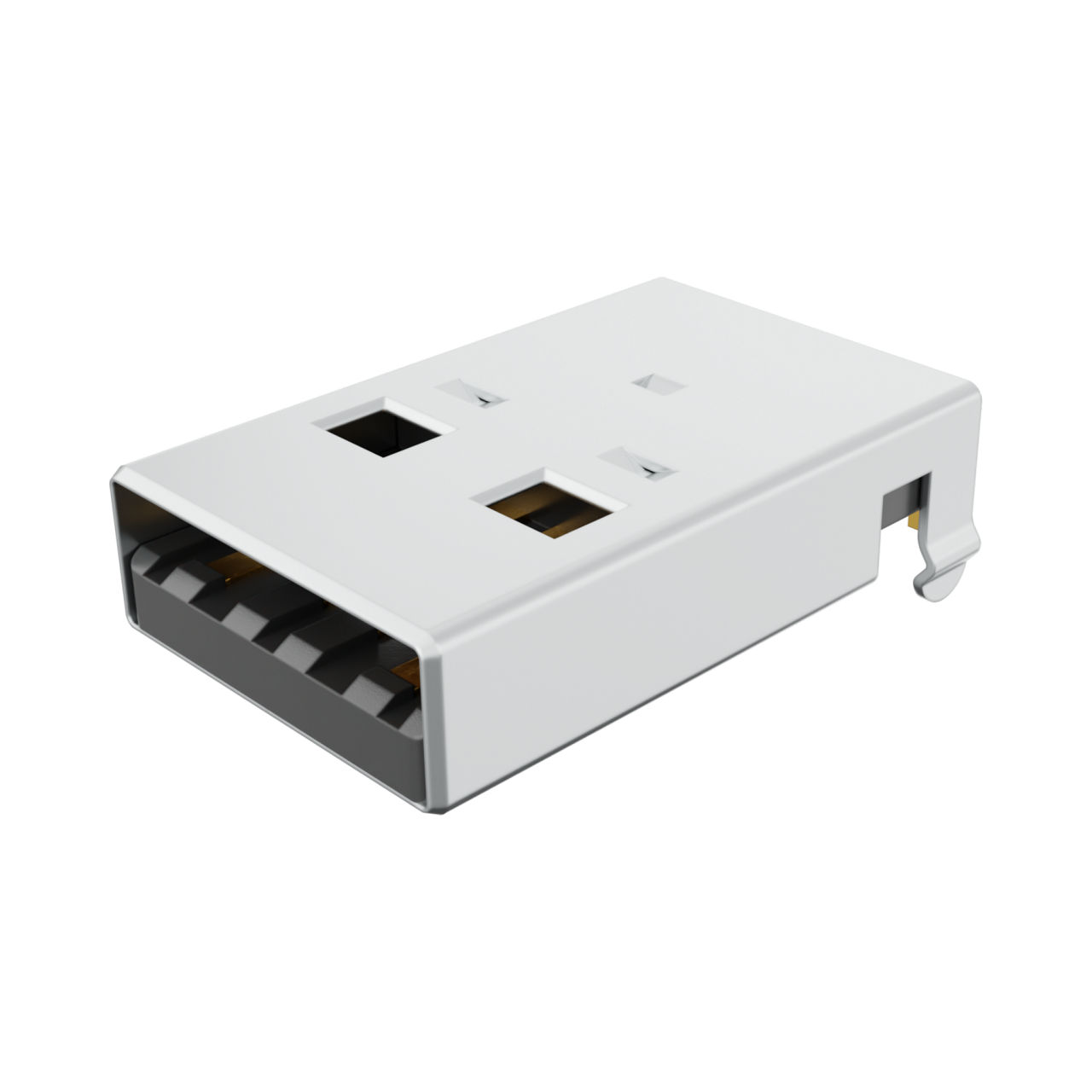

Introducing the 48037-0001, a high-speed Universal Serial Bus (USB) Shielded I/O Plug designed for reliable data transfer in electronic devices. This Type A connector features a rugged Right Angle, Through Hole construction, ensuring secure PCB mounting. With 4 gold-plated contacts and a maximum amperage of 1.5 A, it guarantees efficient power and signal transmission. The Full Shield design minimizes interference, while the 150 V AC/DC voltage rating offers enhanced safety. Engineered for durability, this USB plug operates flawlessly in temperatures ranging from -20 to 85 °C. RoHS compliant and available in bulk, it is the perfect choice for high-speed USB applications in various industries.
