44516-0012

Heilind Number:	MOL44516-0012
Manufacturer:	Molex
Manufacturer Number:	44516-0012
Datasheet:	Drawing
ECAD Model:

Description:

Mini-Fit BMI Receptacle Housing, 4.20mm Pitch, Dual Row, Panel Mount, Slide-and-Lock, PBT Polyester, UL 94V-0, 24 Circuits

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 44516-0012
Color:	Black
Series:	44516 - Mini-Fit BMI
Amperage:	13 A
Connector Type:	Mini-Fit BMI
Gender:	Receptacle
Housing Material:	Polyester
Number of Contacts:	24
Number of Rows:	2
Mount Type:	Panel Mount
Pitch:	4.2 mm
Material:	Polyester
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board, Wire to Wire
Glow Wire Capable:	No
Lock to Mating Part:	No
Stackable:	No
Material Flammability Standard:	94V-0
Part Aliases:	0445160012
SKU:	MOL44516-0012

Detailed Description

Introducing the Mini-Fit BMI Receptacle Housing, a versatile and durable connectivity solution for your power applications. With a compact 4.20mm pitch and featuring dual rows, this panel mount housing ensures secure and efficient connections. Constructed from high-quality PBT polyester that is UL 94V-0 rated, it guarantees safety and reliability. Boasting 24 circuits, this black housing accommodates high-density wiring needs. Designed for a current rating of 13 A, it is ideal for power transmission. With its slide-and-lock mechanism and polarized mating feature, it offers easy and foolproof installation. Whether for wire-to-wire or wire-to-board connections, this Molex Mini-Fit BMI housing is RoHS compliant and suitable for various industries. Upgrade your connectivity infrastructure with this premium housing for seamless and dependable performance.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 03-06-1032	1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 3 Circuits, without Mounting Ears, Natural

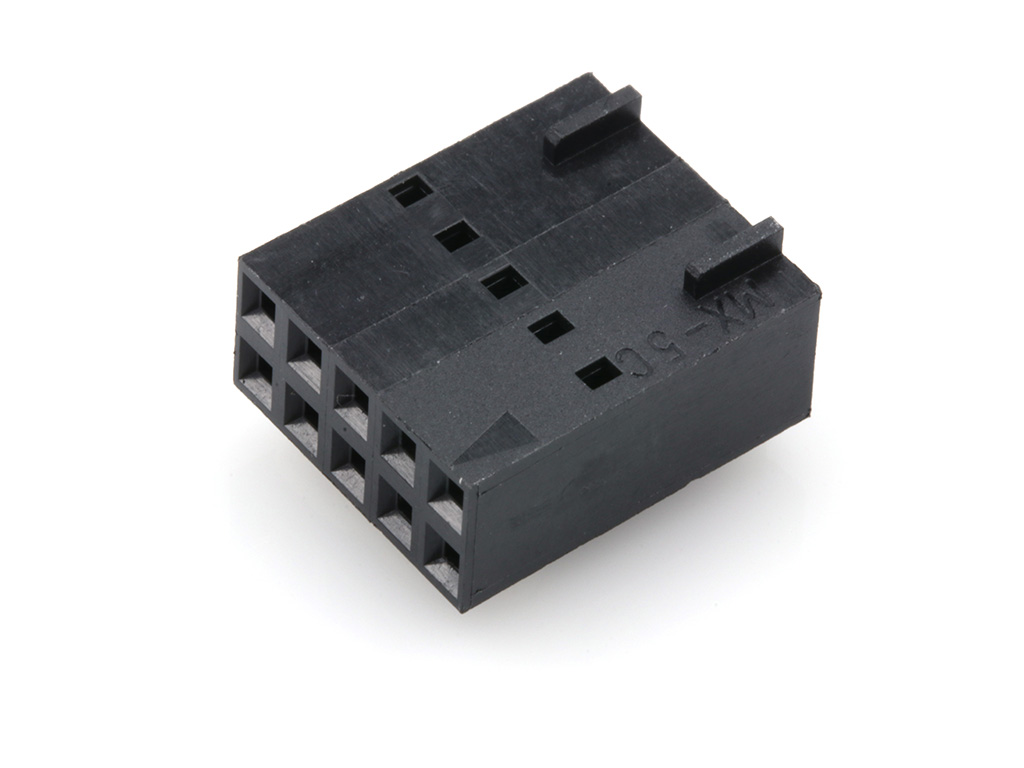

	Molex 22-55-2103	2.54mm Pitch SL Crimp Housing, Dual Row, Version C, Back Ribs, 10 Circuits, Black
	Molex 39-00-0077	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+20, 22+18, 20+20 or Single 16 AWG, Reel
	Molex 39-01-3043	Mini-Fit Jr. Plug Housing, Dual Row, 4 Circuits, UL 94V-2, without Panel Mounting Ears, Natural

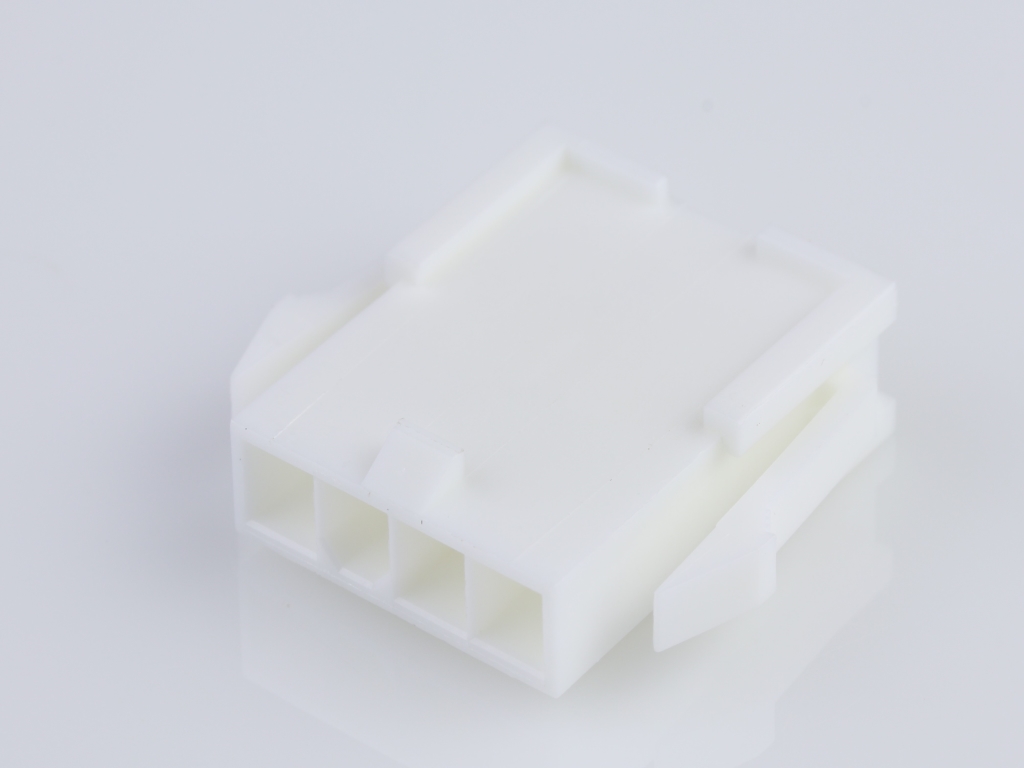

	Molex 39-01-4043	Mini-Fit Jr. Plug Housing, Single Row, 4 Circuits, UL 94V-0, with Panel Mounting Ears, Natural
	Molex 43020-0801	Micro-Fit 3.0 Plug Housing, Dual Row, 8 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43020-1000	Micro-Fit 3.0 Plug Housing, Dual Row, 10 Circuits, UL 94V-0, Panel Mount Ears, Low-Halogen, Black
	Molex 43020-1001	Micro-Fit 3.0 Plug Housing, Dual Row, 10 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43020-1200	Micro-Fit 3.0 Plug Housing, Dual Row, 12 Circuits, UL 94V-0, Panel Mount Ears, Low-Halogen, Black
	Molex 43025-1200	Micro-Fit 3.0 Receptacle Housing, Dual Row, 12 Circuits, UL 94V-0, Black
	Molex 43640-0301	Micro-Fit 3.0 Plug Housing, Single Row, 3 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 44476-3111	Mini-Fit HCS Crimp Terminal, 16 AWG, Reel, Copper (Cu) Alloy, Tin (Sn)

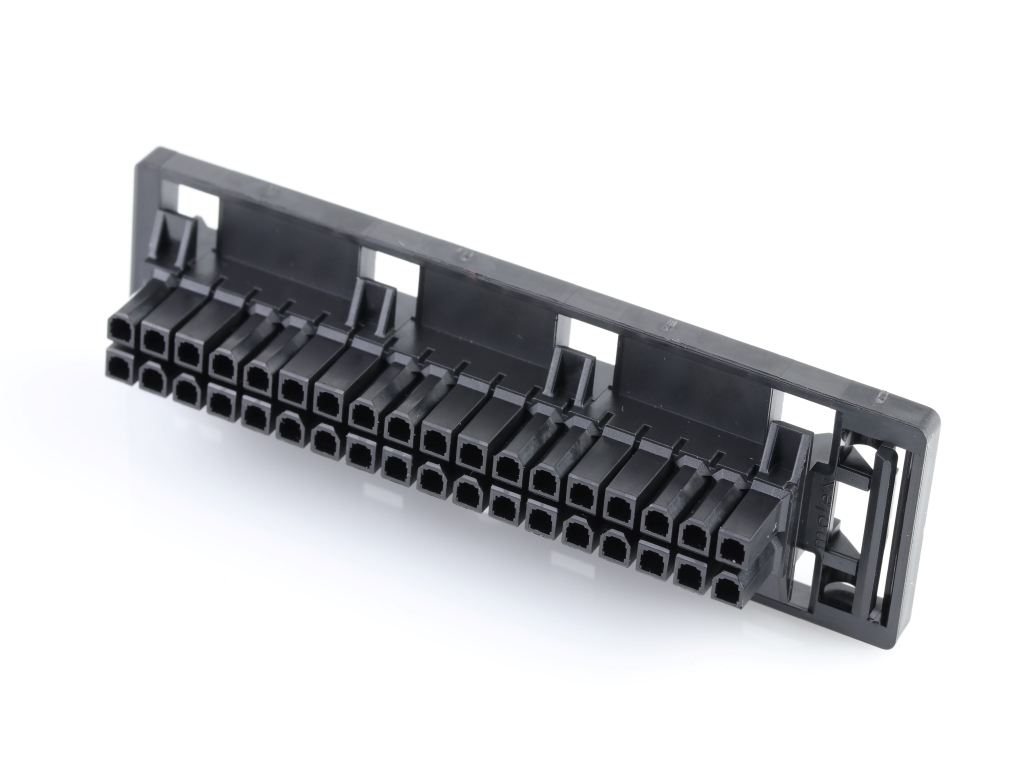

	Molex 44516-0013	Mini-Fit BMI Receptacle Housing, 4.20mm Pitch, Dual Row, Panel Mount, Slide-and-Lock, PBT Polyester, UL 94V-0, 36 Circuits
	Molex 44915-0021	Modular Plug, Category 6, Long Body, Shielded, 8/8, with Strain Relief

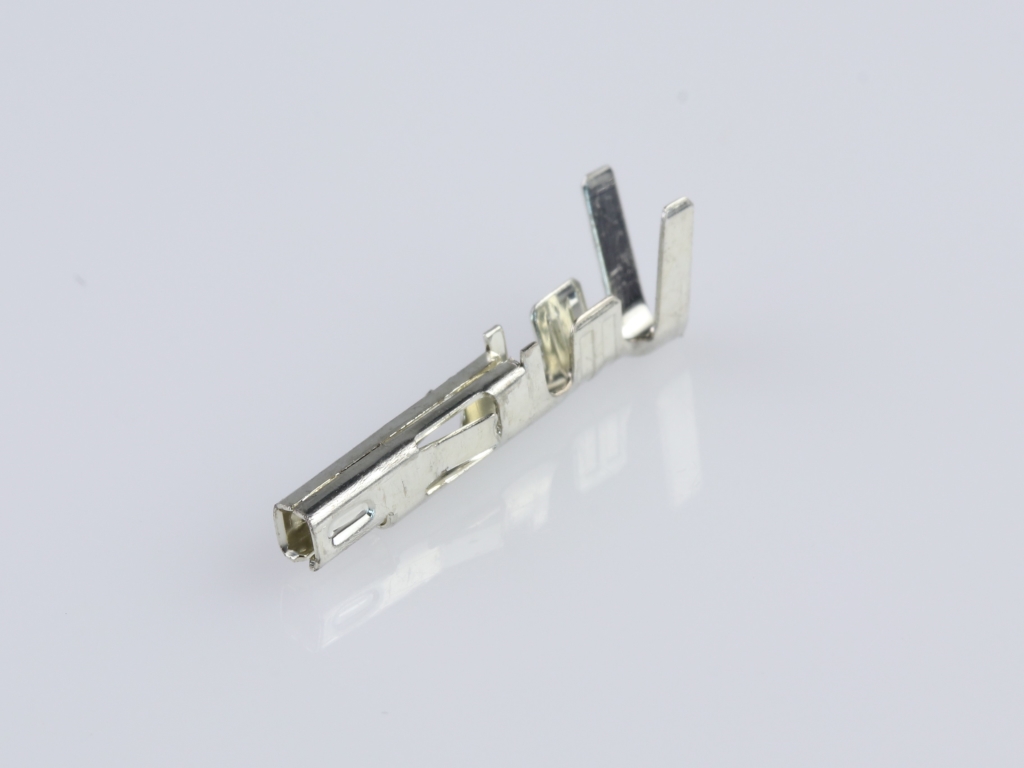

	Molex 45750-3111	Mini-Fit Plus Crimp Terminal, 16 AWG, Reel, Copper (Cu) Alloy, Tin (Sn)
