43860-0013

Heilind Number:	MOL43860-0013
Manufacturer:	Molex
Manufacturer Number:	43860-0013
Datasheet:	RoHS Certificate of Compliance
ECAD Model:

Description:

Modular Jack, Right Angle, Low Profile, Inverted, Shielded, Offset Panel Grounding Tabs, 8/8

More >>

Specifications

Attribute	Value
Product Category:	RJ Connectors & Kits RJ Connectors
Manufacturer:	Molex
Manufacturer Part Number:	Molex 43860-0013
Color:	Black
Series:	43860 - Modular Jack 8/8 - RJ45
Amperage:	1.5 A
Connector Type:	Modular Jack 8/8, RJ45
Gender:	Female
Mount Type:	Panel Mount
Termination Method:	Through Hole
Contact Material:	Brass, Phosphor Bronze
Contact Plating:	Gold
Body Orientation:	Right Angle
Pitch:	1.02 mm
Voltage:	150 V AC/DC
Material:	High Temperature Thermoplastic
Number of Ports:	1
Orientation:	90° Angle
Component Type:	PCB Jack
Packaging:	Tray
Operating Temperature Range:	-40 - 85 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	1.27 µm
Ground to Panel / PCB:	Yes
Mating Cycles:	500
Panel Mount:	With
PCB Locator:	Yes
PCB Retention:	Yes
Contact Termination Plating Thickness:	2.540 µm
PCB Thickness (Recommended):	1.57 mm
CSA Agency Certification:	LR19980
UL Agency Certification:	E107635
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	260 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	005
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	1.02 mm
Surface Mount Compatible:	No
Non Magnetic:	Yes
Material Flammability Standard:	94V-0
Part Aliases:	0438600013
SKU:	MOL43860-0013

Detailed Description

Introducing the 43860-0013, a high-performance Modular Jack designed for seamless connectivity in networking applications. This Right Angle, Low Profile jack features an Inverted design with Shielding for enhanced signal integrity. Its Offset Panel Grounding Tabs ensure reliable grounding, while the 8/8 configuration offers full compatibility with RJ45 connectors. Crafted from durable High Temperature Thermoplastic, this jack is built to last in demanding environments. With a female gender and Panel Mount installation, it provides easy and secure connections. Gold-plated contacts and Tin termination guarantee optimal conductivity and corrosion resistance. UL and CSA certified, RoHS compliant, and lead-free solder capable, this jack meets stringent quality and environmental standards. Perfect for use in a wide range of industries, from telecommunications to industrial automation, the 43860-0013 is the ideal choice for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 08-52-0072	KK 396 Crimp Terminal 2478, 18-24 AWG, Bag, Phosphor Bronze, Tin (Sn)
	Molex 09-50-3031	KK 3.96mm Crimp Terminal Housing, Friction Ramp, 3 Circuits, Natural
	Molex 10-89-7061	2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 6 Circuits, Tin (Sn) Plating, 2.72mm PC Tail Length
	Molex 19002-0024	Avikrimp Fully Insulated Quick Disconnect, Female, for 14-16 AWG Wire, Box

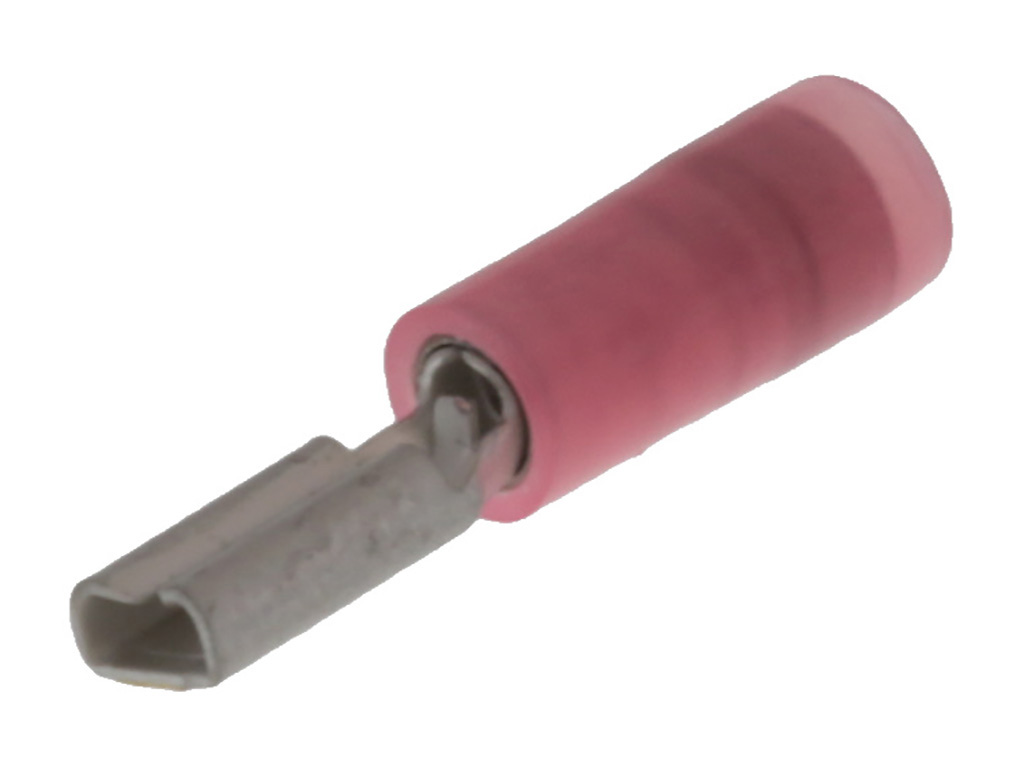

	Molex 19019-0004	Avikrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?) Wire, Box, Tab 2.79 x 0.81mm
