| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 43375-2001 |
| Series: | 43375 - Sabre |
| Amperage: | 18 A |
| Connector Type: | Sabre |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .508 µm |
| Mating Cycles: | 25 |
| Contact Termination Plating Thickness: | .508 µm |
| Wire Size: | 18 AWG, 20 AWG |
| Connector System: | Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.3 mm |
| Part Aliases: | 0433752001 |
| SKU: | MOL43375-2001 |
43375-2001
| Heilind Number: | MOL43375-2001 |
| Manufacturer: | Molex |
| Manufacturer Number: | 43375-2001 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
Sabre Single Crimp Terminal, Female, 18-20 AWG, 2.85mm Max. Insulation Diameter, Reel Packaged, Tin (Sn) Plated Brass Contact with TPA
More >>Specifications
Detailed Description
Introducing the 43375-2001 Sabre Single Crimp Terminal, a high-performance solution for your power connectivity needs. This female terminal, suitable for 18-20 AWG wires, features a durable tin-plated brass contact with TPA for secure and reliable connections. With a maximum insulation diameter of 2.85mm, it ensures proper safety and protection. Designed for wire-to-wire applications, this connector is rated for up to 18 A and 600 V, making it ideal for various power circuit setups. Packaged conveniently on a reel, it offers ease of use and organization. Rest assured, this product is RoHS compliant, guaranteeing its environmental responsibility. Upgrade your connectivity system with the 43375-2001 Sabre Single Crimp Terminal.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 03-06-1062 | 1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 6 Circuits, without Mounting Ears, Natural |  |
 | Molex 08-58-0110 | KK Trifurcon Crimp Terminal 6438, 18-20 AWG, Reel, Phosphor Bronze Selective Gold (Au) | |
 | Molex 09-50-3141 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 14 Circuits | |
 | Molex 19002-0001 | Avikrimp Fully Insulated Quick Disconnect, Female for 18-22 AWG Wire, Box | |
 | Molex 19006-0013 | Flag Avikrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm?) Wire, Mylar Tape, Tab 6.35 x 0.81mm | |
 | Molex 33000-1003 | MX150 Male Terminal, Tin Plating, 22 AWG, Left Reel Payoff | |

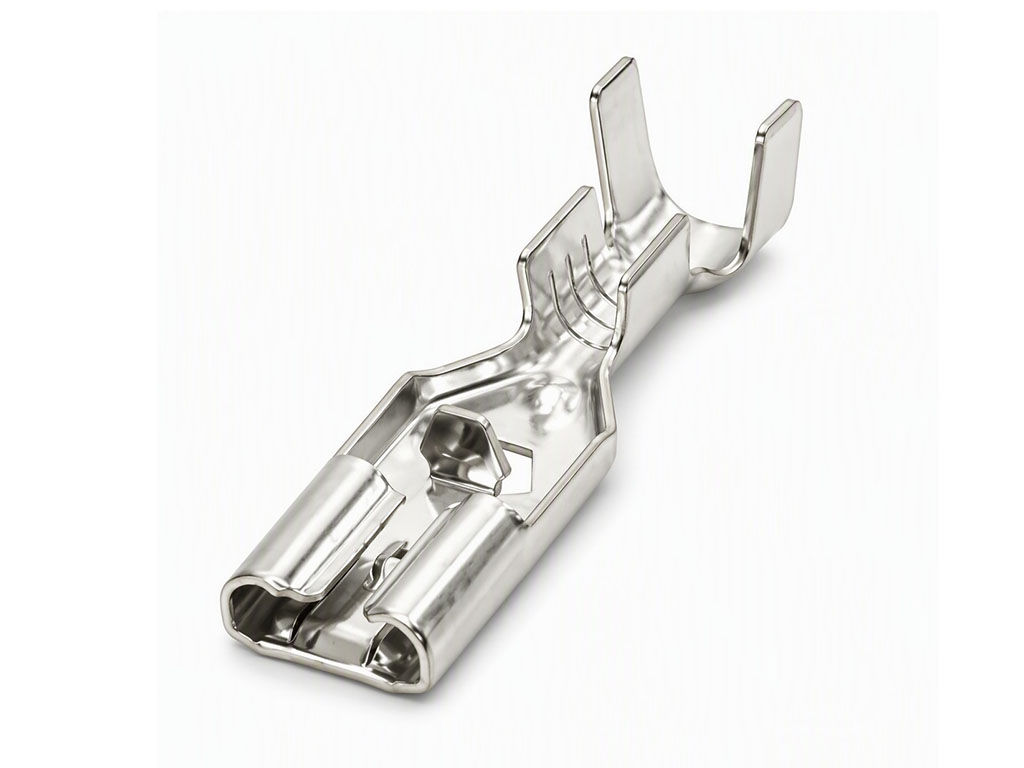

 | Molex 35068-9702 | MP-Lock Quick Disconnect, Female, for 20-22 AWG (0.52-0.33mm?), Metal Strip, Tab 4.75 x 0.51mm, Pre-Tin Plated | |
 | Molex 35745-0110 | VersaBlade .070 Male Crimp Terminal, 20-22 AWG, Type A | |
 | Molex 39-00-0181 | Mini-Fit Female Crimp Terminal, Selective Gold (Au) over Phosphor Bronze, 24-18 AWG, Reel | |
 | Molex 39-01-2100 | Mini-Fit Jr. Receptacle Housing, Dual Row, 10 Circuits, UL 94V-2, Natural | |
 | Molex 39-01-4057 | Mini-Fit Jr. Plug Housing, Single Row, 5 Circuits, UL 94V-0, without Panel Mounting Ears, Natural | |
 | Molex 43030-0001 | Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 24-20 AWG, Reel | |
 | Molex 43030-0003 | Micro-Fit 3.0 Crimp Terminal, Female, with Select Gold (Au) Plated Phosphor Bronze Contact, 24-20 AWG, Reel | |
 | Molex 43375-0001 | Sabre Crimp Terminal, Female, 14-16 AWG, 3.30mm max. Insulation Diameter, Reel Packaged, Tin (Sn) Plated Brass Contact with TPA | |
 | Molex 43375-1001 | Sabre Crimp Terminal, Female, Double 18 AWG, 4.57mm Max. Insulation Diameter, Reel Packaged, Tin (Sn) Plated Brass Contact with TPA | |
 | Molex 44441-2002 | 7.50mm Pitch Sabre Receptacle Crimp Housing, UL 94V-0, 2 Circuits, Black | |
 | Molex 44441-2004 | 7.50mm Pitch Sabre Receptacle Crimp Housing, UL 94V-0, 4 Circuits, Black | |
 | Molex 87568-1073 | Milli-Grid Cable-to-Board Receptacle, Dual Row, IDT, Lead-Free, 10 Circuits, 0.38 | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 11/15/2025 | 517215 - Equipment/ Production Transfer or Rearrangement. The purpose of the change is Additional site of production in Molex Shanghai. New tool added and material source added local supplier. No change to material level and product quality. | Download | |||
| 08/01/2020 | 508485 - Warehouse transfer. moving from Lincoln (duns# 967495487) to Bolingbrook (Duns# 103340709) | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
