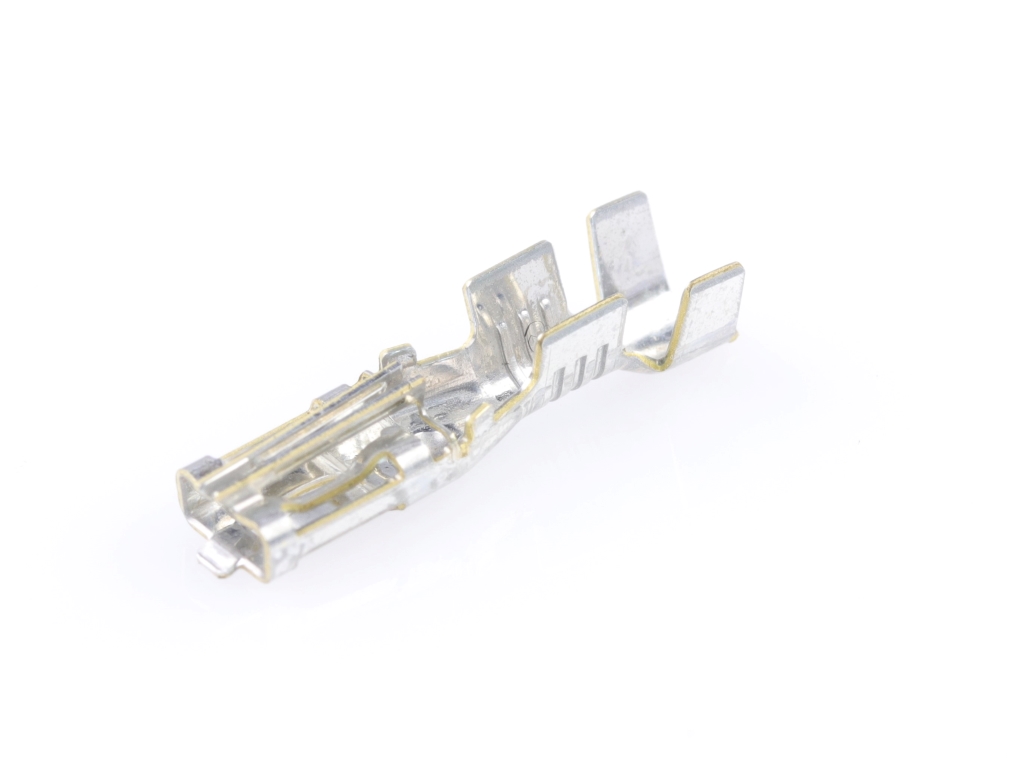

43374-0001
Sabre Crimp Terminal, Female, 14-16 AWG, 0.79mm max. Insulation Diameter, Reel Packaged, Tin (Sn) Plated Brass Contact without TPA
Part Aliases: Molex 0433740001
The Molex Sabre Crimp Terminal, a high-performance connectivity solution for your power applications. This female terminal, with a contact rating of 18 A and a voltage tolerance of 600 V, is designed to deliver reliable power transmission in various environments. Suitable for 14-16 AWG wires with a maximum insulation diameter of 0.79mm, this tin-plated brass terminal ensures excellent conductivity while minimizing the risk of corrosion. Packaged on a convenient reel for easy handling, it is ideal for high-volume assembly. With a lifespan of 25 mating cycles and full RoHS compliance, the Sabre Crimp Terminal guarantees both durability and environmental responsibility, making it a top choice for your wire-to-wire or wire-to-board connections. Upgrade your system's performance with this essential component from Molex.
Details
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 43374-0001 |
| Series: | 43374 - Sabre |
| Amperage: | 18 A |
| Connector Type: | Sabre |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Packaging: | Reel |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .508 µm |
| Mating Cycles: | 25 |
| Contact Termination Plating Thickness: | .508 µm |
| Wire Size: | 14 AWG, 16 AWG |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | .79 mm |
| Part Aliases: | 0433740001 |
| SKU: | MOL43374-0001 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
