| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 43045-1009 |
| Color: | Black |
| Series: | 43045 |
| Amperage: | 8.5 A |
| Connector Type: | Micro-Fit 3.0 |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Termination Method: | Surface Mount |
| Contact Material: | Brass |
| Body Orientation: | Right Angle |
| Pitch: | 3 mm |
| Voltage: | 600 V |
| Material: | High Temperature Thermoplastic |
| Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .254 µm |
| Number of Contacts Loaded: | 10 |
| Mating Cycles: | 30 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | REFLOW |
| Duration at Max. Process Temperature (seconds): | 030 |
| Max. Cycles at Max. Process Temperature: | 003 |
| Glow Wire Capable: | Yes |
| Mated Height: | 10.29 mm |
| Stackable: | No |
| Breakaway: | No |
| Shroud Type: | Fully |
| Product Name: | Micro-Fit 3.0 |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0430451009 |
| SKU: | MOL43045-1009 |
43045-1009
| Heilind Number: | MOL43045-1009 |
| Manufacturer: | Molex |
| Manufacturer Number: | 43045-1009 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 10 Circuits, with Solder Tab, Tin, Glow-Wire Capable, Black
More >>Specifications
Detailed Description
Introducing the 43045-1009, a high-performance Micro-Fit 3.0 Right-Angle Header designed for seamless PCB connectivity. With a pitch of 3.00mm and featuring dual rows, this header offers 10 circuits for versatile applications. Each contact is equipped with a solder tab for secure termination, plated with tin for enhanced conductivity. With a current rating of 8.5 A and a voltage tolerance of 600 V, this header is suitable for power and signal transmission. Constructed from high temperature thermoplastic, it ensures durability in harsh environments. Its right-angle body orientation and PCB locator guarantee easy and accurate installation. RoHS compliant and lead-free process capable, the 43045-1009 is the perfect choice for reliable wire-to-board connections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 15-97-5121 | Mini-Fit TPA Receptacle Housing, 4.20mm Pitch, Dual Row with Secondary Terminal Retention, 12 Circuits, Black |  |
 | Molex 15-97-9041 | Mini-Fit TPA Key for 2 and 4 Circuit | |
 | Molex 16-02-0105 | SL Crimp Terminal, Series 70021, Male, with Tin (Sn) Plated Contact, 30-24 AWG, Reel | |

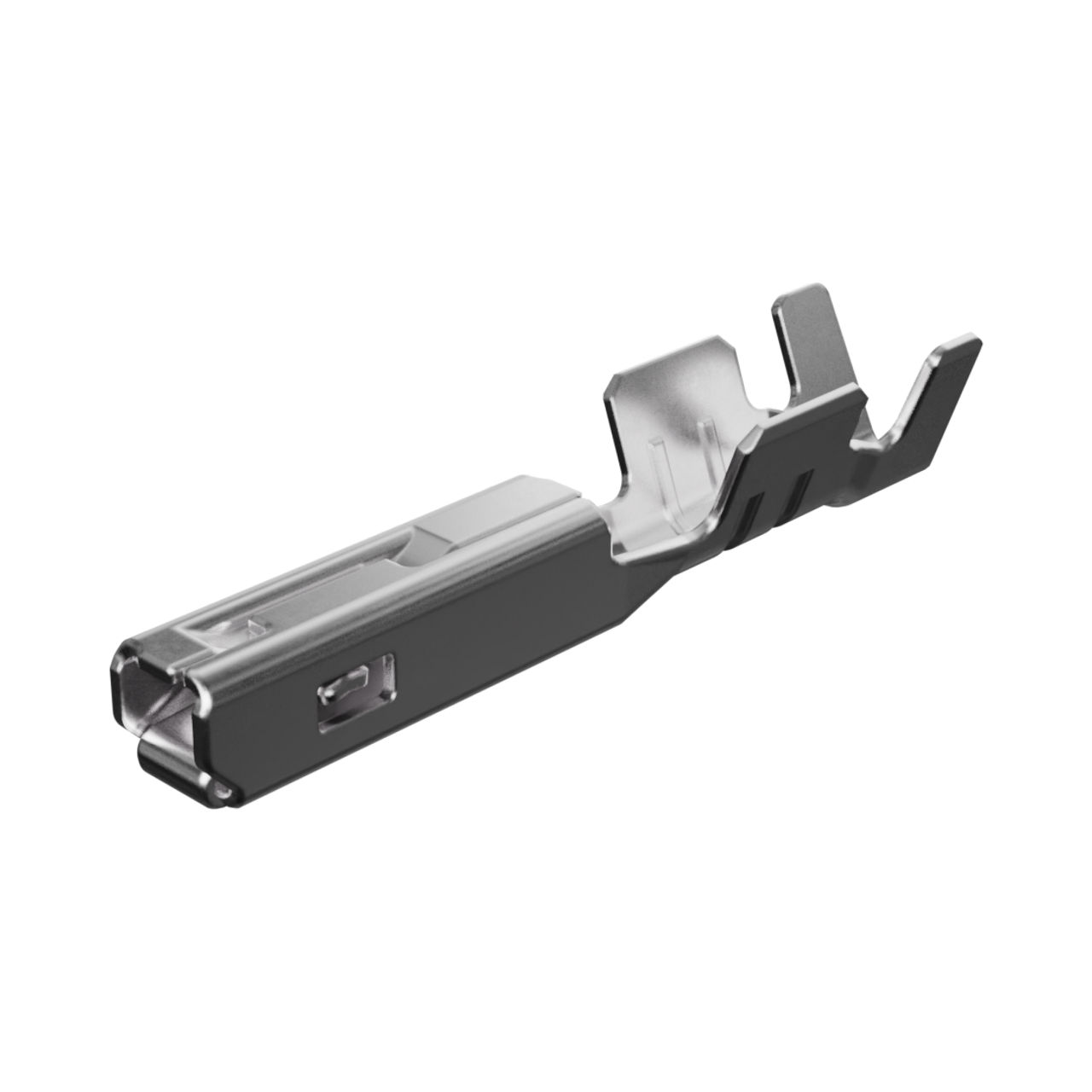

 | Molex 33001-4001 | MX150 Female Terminal Sealed, Silver Plating, 14 and 16 AWG, Right Reel Payoff | |
