| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 43045-0218 |
| Color: | Black |
| Series: | 43045 |
| Amperage: | 8.5 A |
| Connector Type: | Micro-Fit 3.0 |
| Number of Contacts: | 2 |
| Number of Rows: | 2 |
| Termination Method: | Surface Mount |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 3 mm |
| Voltage: | 600 V |
| Material: | High Temperature Thermoplastic |
| Orientation: | Vertical |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .254 µm |
| Number of Contacts Loaded: | 2 |
| Mating Cycles: | 30 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | REFLOW |
| Duration at Max. Process Temperature (seconds): | 030 |
| Max. Cycles at Max. Process Temperature: | 003 |
| Glow Wire Capable: | Yes |
| Mated Height: | 17.64 mm |
| Stackable: | No |
| Breakaway: | No |
| Shroud Type: | Fully |
| Product Name: | Micro-Fit 3.0 |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0430450218 |
| SKU: | MOL43045-0218 |
43045-0218
| Heilind Number: | MOL43045-0218 |
| Manufacturer: | Molex |
| Manufacturer Number: | 43045-0218 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:

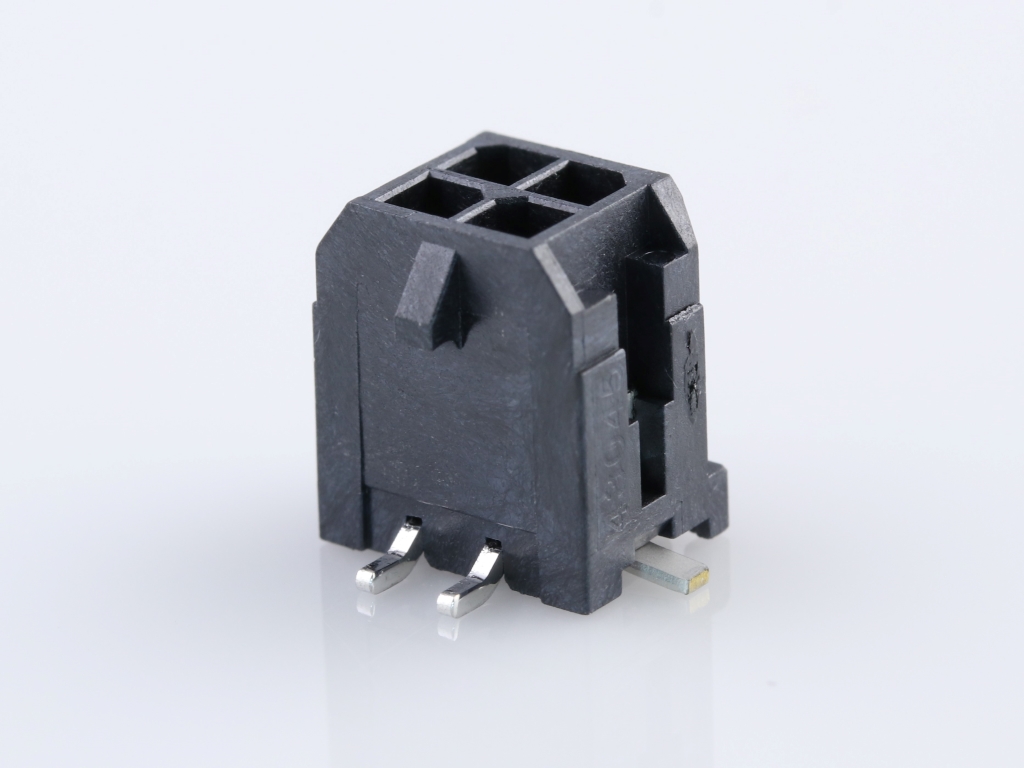

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 Circuits, with Solder Tab, Tin, Glow-Wire Capable, Black
More >>Specifications
Detailed Description
The Micro-Fit 3.0 Vertical Header is a high-performance connectivity solution for your PCB projects. With a 3.00mm pitch and featuring dual rows, this header accommodates 2 circuits, ensuring efficient power and signal transmission. Its solder tab termination method, along with Tin plating, guarantees secure and reliable connections, even in high-temperature environments. Rated for 8.5A and 600V, this header is suitable for a wide range of applications. Its black, glow-wire capable housing, constructed from high-temperature thermoplastic, offers durability and safety. Fully shrouded and polarized to the PCB, it provides added protection and ensures proper mating. RoHS compliant and lead-free process capable, the Micro-Fit 3.0 is not only reliable but also environmentally friendly, making it the perfect choice for your design needs.
