| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 42817-1014 |
| Series: | 42817 - Mini-Fit Sr. |
| Connector Type: | Mini-Fit Sr. |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Performance Alloy (HPA) |
| Contact Plating: | Tin Over Nickel |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Silver over Nickel |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 10 AWG, 12 AWG |
| Connector System: | Wire to Wire |
| Contact Termination Plating: | Tin over Nickel |
| Wire Insulation Diameter: | 5.3 mm |
| Part Aliases: | 889056244749 42817-1014 0428171014 |
| SKU: | MOL42817-1014.P |
42817-1014
Specifications
Detailed Description

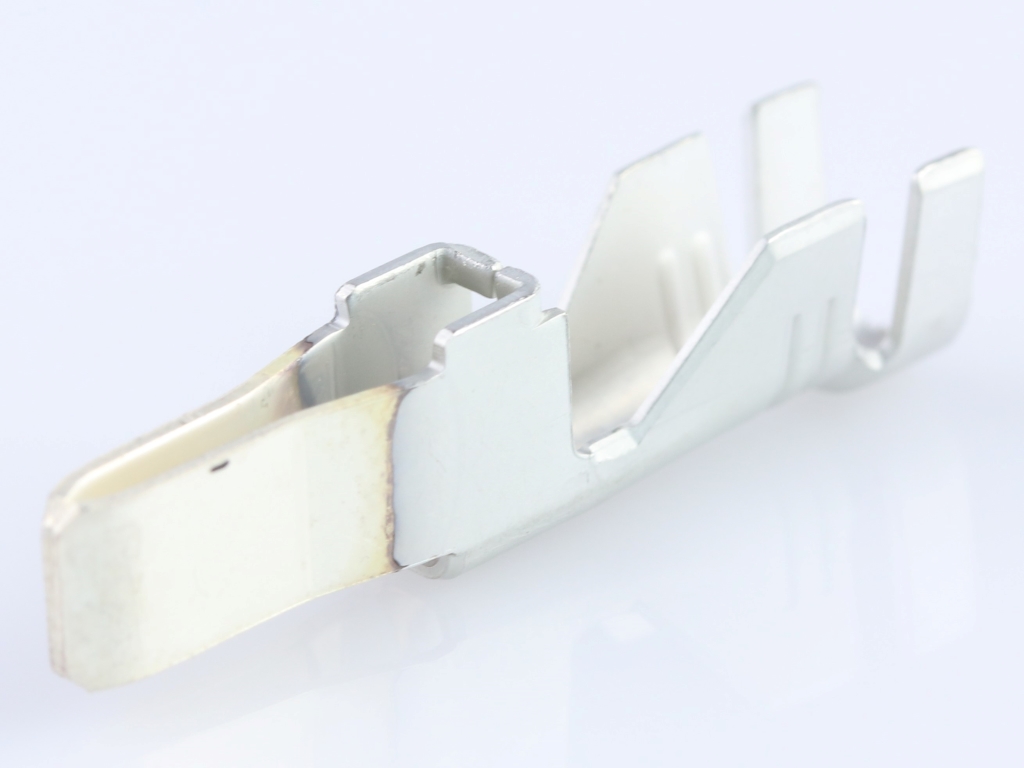

Introducing the 42817-1014 Cut Strip Mini-Fit Sr. Crimp Terminal for robust power connectivity in wire-to-wire applications. Designed for 10-12 AWG wires, this male terminal features a durable High Performance Alloy construction with Tin over Nickel plating for enhanced longevity. Its silver contact mating area ensures reliable conductivity, while the easy crimp or compression termination method guarantees secure installation. With a wide wire insulation diameter of 5.3mm, this terminal is versatile and efficient. RoHS compliant and currently in stock, it is the perfect choice for high-power circuit applications, offering unparalleled performance and durability.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 42817-1014 | Mini-Fit Sr. Crimp Terminal, Male, 10-12 AWG, Silver (Ag) |  |
 | Molex 42818-0312 | 10.00mm Pitch Mini-Fit Sr. Plug Housing, Single Row, Panel Mount, 3 Circuit, Black | |
 | Molex 43938-2103 | 10.00mm Pitch Mini-Fit Sr. Plug Housing, Dual Row, Panel Mount, 10 Circuits, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 05/13/2022 | 511664 - Change supplier. his notification is to inform you that a supplier to Molex Lincoln Nebraska, plant 3104, is changing it's mill source for raw material used for the impacted parts listed. This change is being completed so that the supplier can keep up with current and future demand for material. No changes will be made to product as part of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 42817-1014 |
| Other Names: | 889056244749 0428171014 |
