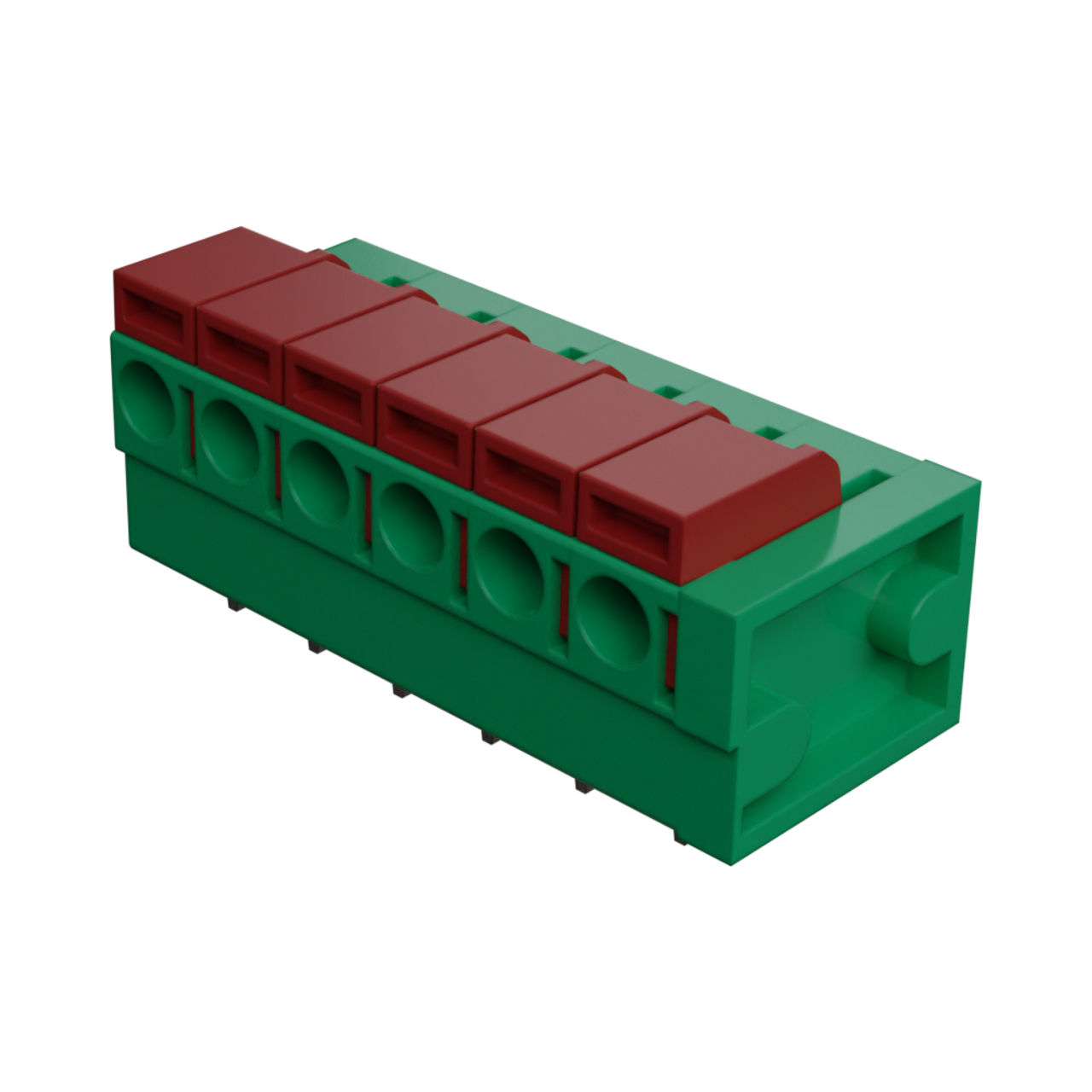

39700-0806
5.00mm Pitch, Eurostyle Fixed-Mount Push-Button Terminal Block, Horizontal, 10A, 22-14 AWG, Green, 6 Circuits
Part Aliases: Molex 0397000806 Molex M851-00-1-06-3
The 39700-0806, a high-performance Eurostyle Fixed Mount terminal block in a sleek green color. This panel-mount connector features 6 contacts arranged in a single row, with a durable nylon construction and a right-angle body orientation for convenient installation. Rated for 10 A and 300 V, it is suitable for a wide range of applications. The push-button design allows for easy and secure wire termination, accommodating wire sizes from 22 AWG to 18 AWG. With tin-plated contact termination and RoHS compliance, this terminal block ensures reliable and environmentally friendly connectivity. Perfect for wire-to-board connections in various electronic systems, the 39700-0806 guarantees efficient performance even in harsh operating conditions.
Details
Product Category: | |
Manufacturer: | Molex |
Manufacturer Part Number: | Molex 39700-0806 |
Color: | Green |
Series: | 39700 - ESE - Eurostyle Fixed Mount |
Amperage: | 10 A |
Connector Type: | ESE, Eurostyle Fixed Mount |
Number of Contacts: | 6 |
Number of Rows: | 1 |
Mount Type: | Panel Mount |
Body Orientation: | Right Angle |
Pitch: | 5 mm |
Voltage: | 300 V |
Material: | Nylon |
Orientation: | Horizontal |
Component Type: | Push-Button |
Operating Temperature Range: | -40 - 105 °C |
Number of Contacts Loaded: | 6 |
Polarized to Mate: | No |
Wire Size: | 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG |
Connector System: | Wire to Board |
Contact Termination Plating: | Tin |
Lock to Mating Part: | No |
Stackable: | No |
Part Aliases: | 0397000806 M851-00-1-06-3 |
SKU: | MOL39700-0806 |
Compliance
Environmental Initiative Details
Environmental Initiative: | RoHS |
---|---|
Compliant: | Unknown |
Date of this Information: | Unknown |
Notes: |
