| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39700-0805 |
| Color: | Green |
| Series: | 39700 - ESE - Eurostyle Fixed Mount |
| Amperage: | 10 A |
| Connector Type: | ESE, Eurostyle Fixed Mount |
| Number of Contacts: | 5 |
| Number of Rows: | 1 |
| Mount Type: | Panel Mount |
| Body Orientation: | Right Angle |
| Pitch: | 5 mm |
| Voltage: | 300 V |
| Material: | Nylon |
| Orientation: | Horizontal |
| Component Type: | Push-Button |
| Operating Temperature Range: | -40 - 105 °C |
| Number of Contacts Loaded: | 5 |
| Polarized to Mate: | No |
| Wire Size: | 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Lock to Mating Part: | No |
| Stackable: | No |
| Part Aliases: | 0397000805 M851-00-1-05-3 |
| SKU: | MOL39700-0805 |
39700-0805
Specifications
Detailed Description

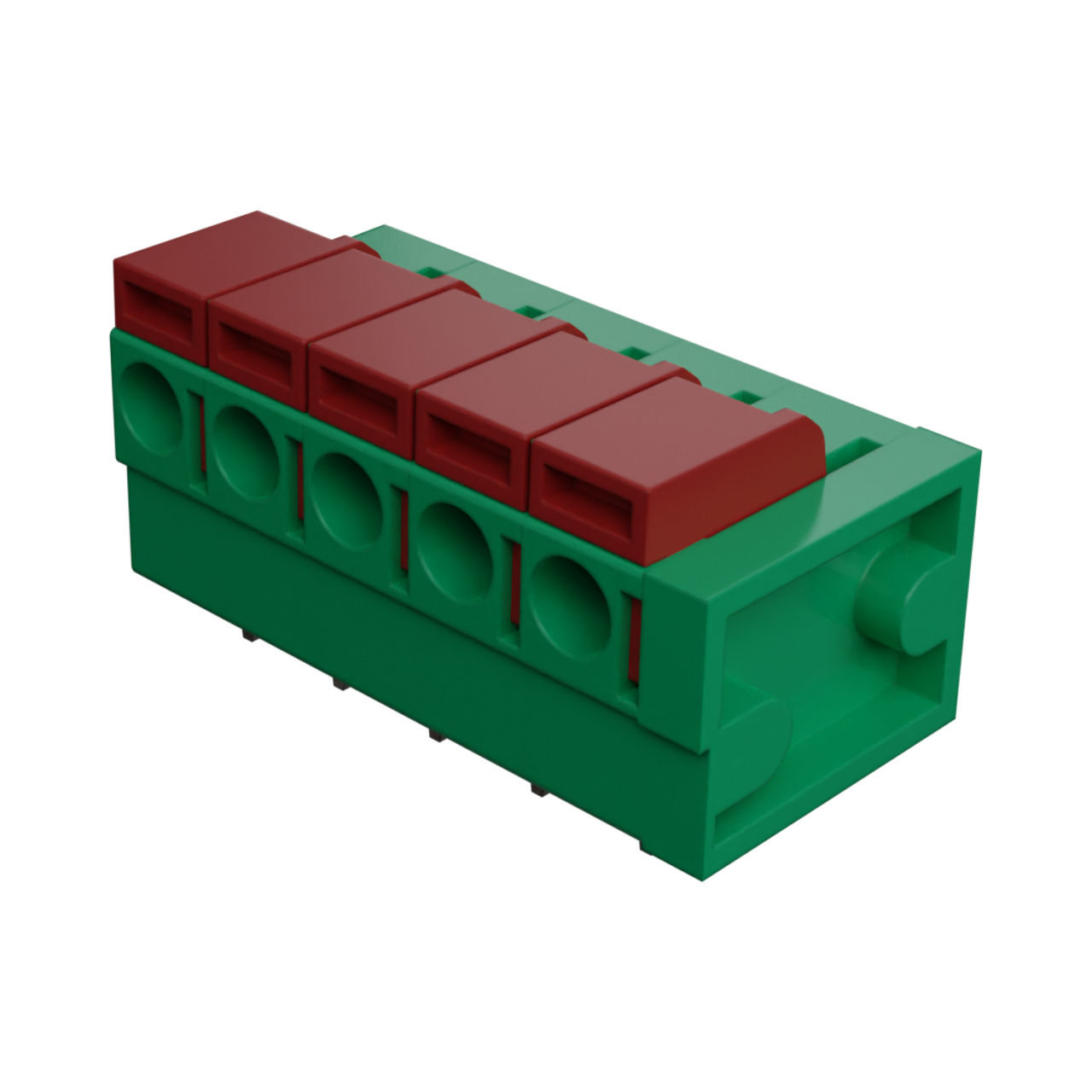

Introducing the 39700-0805, a durable and versatile Eurostyle Fixed Mount terminal block designed for efficient panel installation. This green connector features 5 contacts arranged in a single row, with a current rating of 10 A and a voltage capacity of 300 V. Constructed from high-quality nylon and tin-plated for enhanced conductivity, it offers reliable performance in a wide operating temperature range from -40 to 105 °C. The right-angle body orientation and horizontal layout make it ideal for space-restricted applications. Suitable for wire sizes ranging from 22 to 14 AWG, this RoHS-compliant terminal block is a perfect choice for your PCB mounting needs.
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 39700-0805 |
| Other Names: | 0397000805 M851-00-1-05-3 |
