| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39371-0011 |
| Series: | 39371 - Eurostyle Pluggable |
| Amperage: | 15 A |
| Connector Type: | Eurostyle Pluggable |
| Number of Rows: | 1 |
| Maximum Operating Temperature: | 110 °C |
| Pitch: | 7.5 mm |
| Voltage: | 300 V |
| Orientation: | Right Angle |
| Component Type: | Plug |
| Operating Temperature Range: | 110 °C |
| Number of Contacts Loaded: | 11 |
| Polarized to Mate: | Yes |
| Wire Size: | .05 - 2.50 mm², 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG |
| UL Agency Certification: | E48521 |
| Termination Pitch: | 7.5 mm |
| Lock to Mating Part: | No |
| Stackable: | Yes |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0393710011 MX-CIF11003-0N |
| SKU: | MOL39371-0011 |

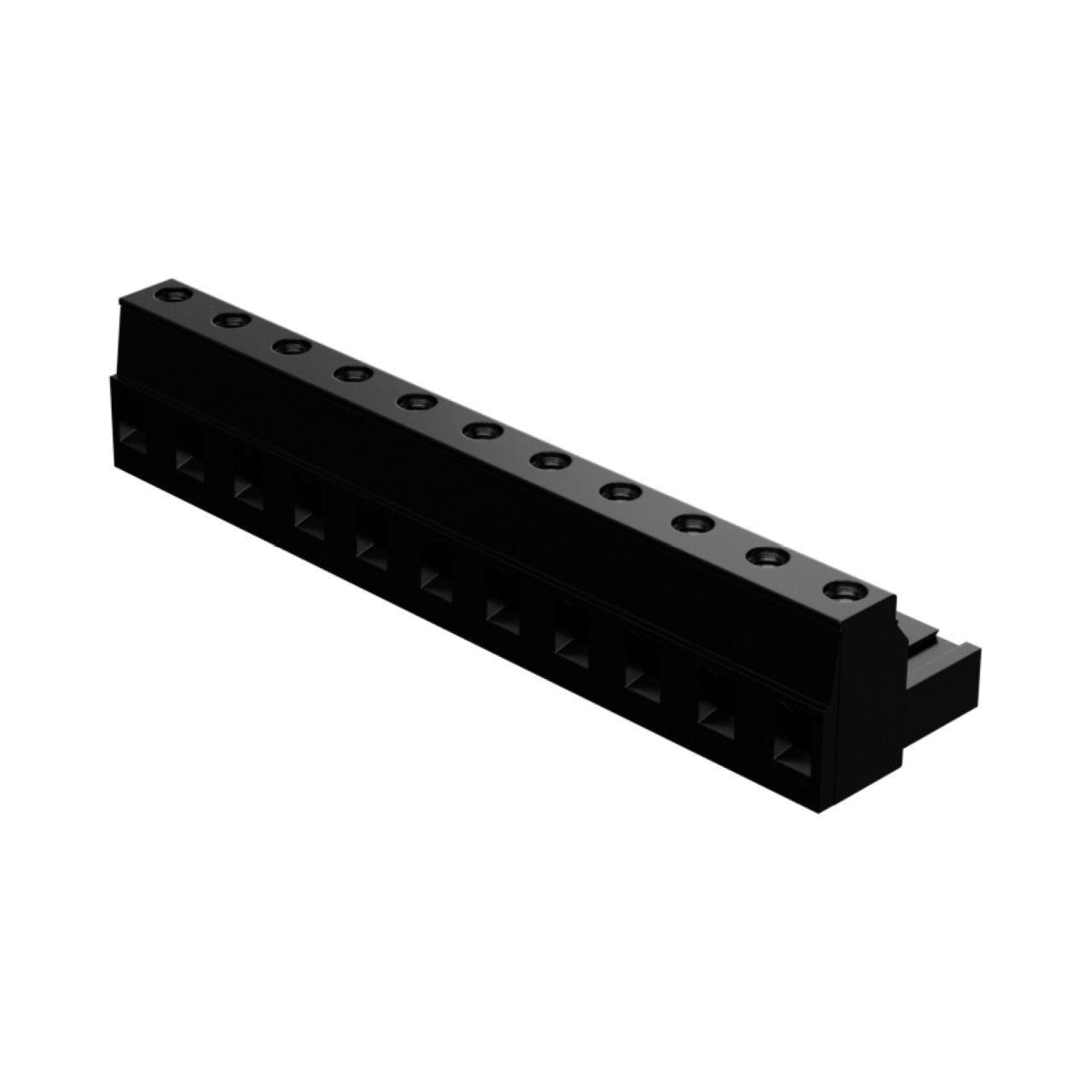

39371-0011
Specifications
Detailed Description
Introducing the 39371-0011, a high-performance Eurostyle Pluggable terminal block for your connectivity needs. With a compact design featuring 11 contacts loaded in a single row, this terminal block allows for efficient wire termination ranging from 24 AWG to 12 AWG. Rated for 15 A and 300 V, it ensures reliable power and signal transmission. The right-angle orientation and polarized mating feature offer easy and secure connections, while its 110 °C operating temperature range suits various environments. UL agency certified (E48521) for quality assurance, this terminal block is stackable for added versatility. Upgrade your systems with the 39371-0011 for robust and dependable wire management.
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 39371-0011 |
| Other Names: | 0393710011 MX-CIF11003-0N |
