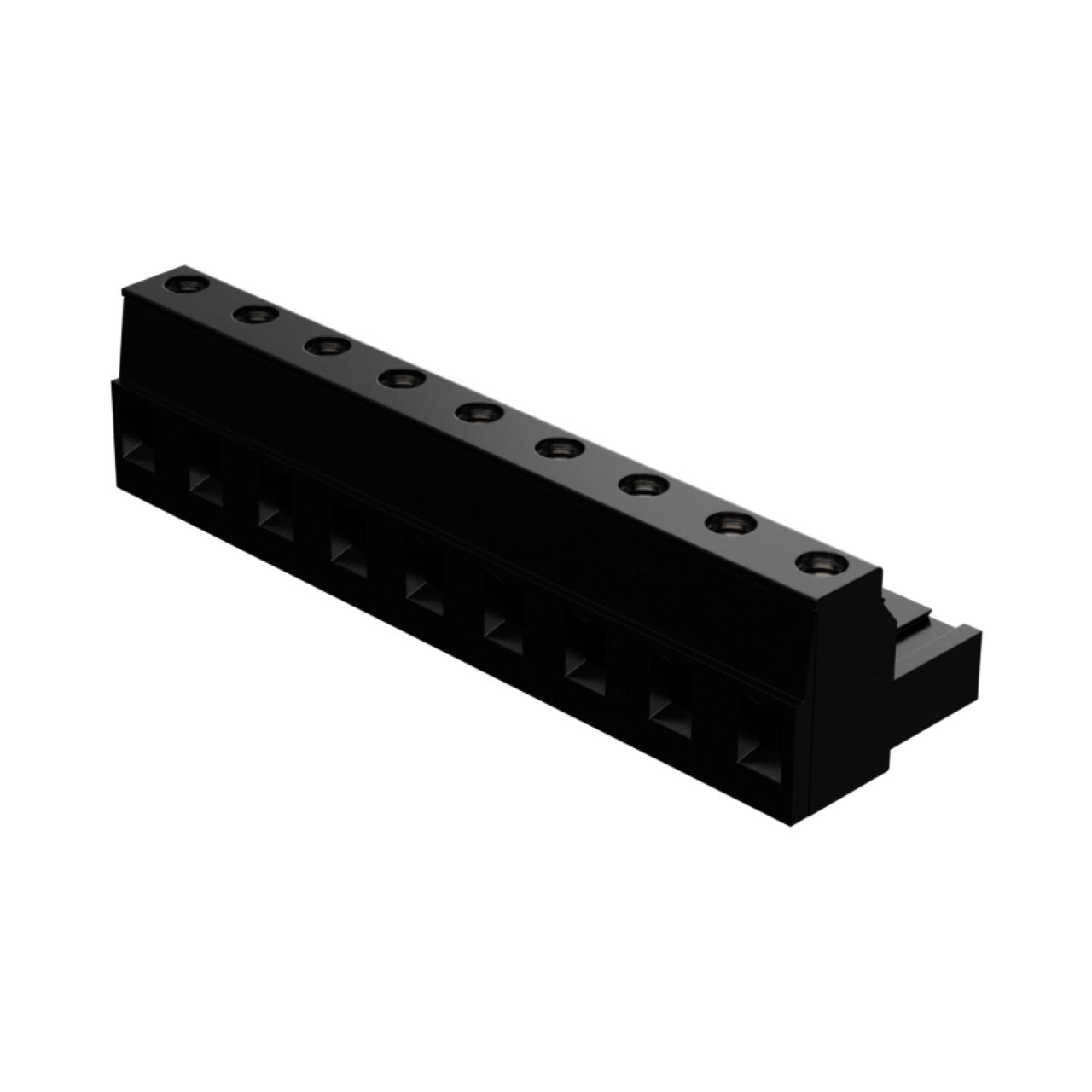

39371-0009
7.50mm Beau Eurostyle Pluggable PCB Terminal Block, 180
Part Aliases: Molex 0393710009 Molex MX-CIF09003-0N
The 39371-0009, a high-performance Eurostyle Pluggable Terminal Block rated for 15 A and 300 V. With a compact design featuring 1 row of 9 contacts loaded, this terminal block is ideal for space-constrained applications. Its right-angle orientation and polarized mating ensure secure and reliable connections. Constructed with high-temperature materials, it offers a wide operating temperature range of up to 110 °C. UL certified (E48521) for safety and reliability, this terminal block accommodates wire sizes ranging from 24 AWG to 18 AWG, making it suitable for a variety of industrial and commercial uses. Its stackable design further enhances versatility, although please note that it is not RoHS compliant. Upgrade your connectivity solutions with the 39371-0009 Eurostyle Pluggable Terminal Block.
Details
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39371-0009 |
| Series: | 39371 - Eurostyle Pluggable |
| Amperage: | 15 A |
| Connector Type: | Eurostyle Pluggable |
| Number of Rows: | 1 |
| Maximum Operating Temperature: | 110 °C |
| Pitch: | 7.5 mm |
| Voltage: | 300 V |
| Orientation: | Right Angle |
| Component Type: | Plug |
| Operating Temperature Range: | 110 °C |
| Number of Contacts Loaded: | 9 |
| Polarized to Mate: | Yes |
| Wire Size: | .05 - 2.50 mm², 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG |
| UL Agency Certification: | E48521 |
| Termination Pitch: | 7.5 mm |
| Lock to Mating Part: | No |
| Stackable: | Yes |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0393710009 MX-CIF09003-0N |
| SKU: | MOL39371-0009 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
