| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39371-0006 |
| Series: | 39371 - Eurostyle Pluggable |
| Amperage: | 15 A |
| Connector Type: | Eurostyle Pluggable |
| Number of Rows: | 1 |
| Maximum Operating Temperature: | 110 °C |
| Pitch: | 7.5 mm |
| Voltage: | 300 V |
| Orientation: | Right Angle |
| Component Type: | Plug |
| Operating Temperature Range: | 110 °C |
| Number of Contacts Loaded: | 6 |
| Polarized to Mate: | Yes |
| Wire Size: | .05 - 2.50 mm², 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG |
| UL Agency Certification: | E48521 |
| Termination Pitch: | 7.5 mm |
| Lock to Mating Part: | No |
| Stackable: | Yes |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0393710006 MX-CIF06003-0N |
| SKU: | MOL39371-0006 |

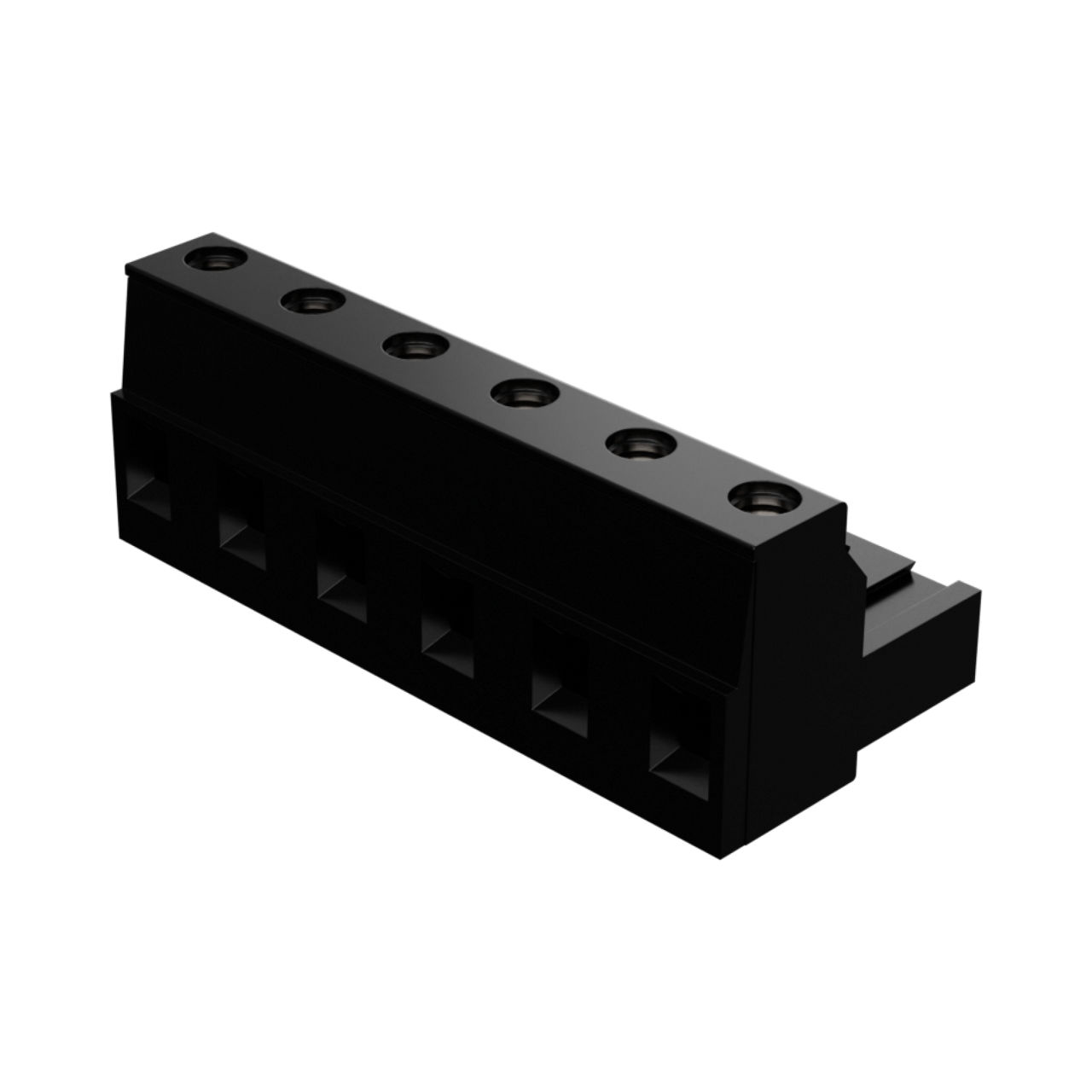

39371-0006
Specifications
Detailed Description
Introducing the 39371-0006, a high-performance Eurostyle Pluggable Terminal Block designed for maximum reliability in your electronic connections. With a robust 15A and 300V rating, this terminal block is ideal for power and signal applications. Featuring a right-angle orientation and polarized mating for easy and secure installation, it ensures a stable connection in any environment. With UL agency certification E48521, you can trust in its safety and quality. The 39371-0006 accommodates up to 6 contacts, with a wire size range from 24 to 12 AWG, making it versatile for various applications. Its stackable design further enhances flexibility in your setup. Trust in the durability and performance of this terminal block for your critical connectivity needs. Please note, this product is not RoHS compliant.
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 39371-0006 |
| Other Names: | 0393710006 MX-CIF06003-0N |
