| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39-53-2144 |
| Color: | Natural |
| Series: | 5597 |
| Amperage: | 1 A |
| Connector Type: | Easy-On |
| Housing Material: | Polyester |
| Number of Contacts: | 14 |
| Number of Rows: | 1 |
| Contact Material: | Phosphor Bronze |
| Maximum Operating Temperature: | 80 °C |
| Minimum Operating Temperature: | -20 °C |
| Body Orientation: | Right Angle |
| Pitch: | 1.25 mm |
| Voltage: | 200 V |
| Material: | Polyester |
| Orientation: | Right Angle |
| Wire Type: | FFC/FPC |
| Actuator Type: | Slider |
| Tail Length: | 3.5 mm |
| Operating Temperature Range: | -20 - 80 °C |
| Contact Mating Area Plating: | Tin-Bismuth |
| Contact Mating Area Plating Thickness: | 1.016 µm |
| Number of Contacts Loaded: | 14 |
| Mating Cycles: | 30 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Contact Termination Plating Thickness: | 1.016 µm |
| Contact Termination Plating: | Tin-Bismuth |
| Mated Height: | 5 mm |
| Stackable: | No |
| Surface Mount Compatible: | No |
| PCB Mount Alignment Type: | Through Hole |
| Product Name: | Easy-On |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0039532144 5597-14APB7F |
| SKU: | MOL39-53-2144 |
39-53-2144
| Heilind Number: | MOL39-53-2144 |
| Manufacturer: | Molex |
| Manufacturer Number: | 39-53-2144 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:
1.25mm Pitch Easy-On FFC/FPC Connector, Through-Hole, Right-Angle, ZIF, Top Contact Style, 14 Circuits
More >>Specifications
Detailed Description
The Molex Easy-On FFC/FPC connector, part number 39-53-2144, offers reliable and efficient cable connections in electronic applications. With a low operating temperature of -20°C and a maximum of 80°C, this connector is suitable for a wide range of environments. Featuring 14 contacts loaded in a single row, it allows for secure and seamless connections. The housing is made of durable polyester, with phosphor bronze contact material plated with tin-bismuth for enhanced conductivity. Designed for right-angle orientation and with a pitch of 1.25mm, it offers flexibility in PCB layouts. RoHS compliant and rated for 30 mating cycles, the Easy-On connector ensures both performance and environmental responsibility.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 172256-3103 | Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 3 Circuits, Black, Glow-Wire Capable |  |
 | Molex 172264-4003 | Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 3 Circuits, Natural | |
 | Molex 22-05-3021 | KK 254 Solid Header, Right Angle, with Friction Lock, 2 Circuits, Tin (Sn) Plating | |
 | Molex 22-05-3031 | KK 254 Solid Header, Right Angle, with Friction Lock, 3 Circuits, Tin (Sn) Plating | |

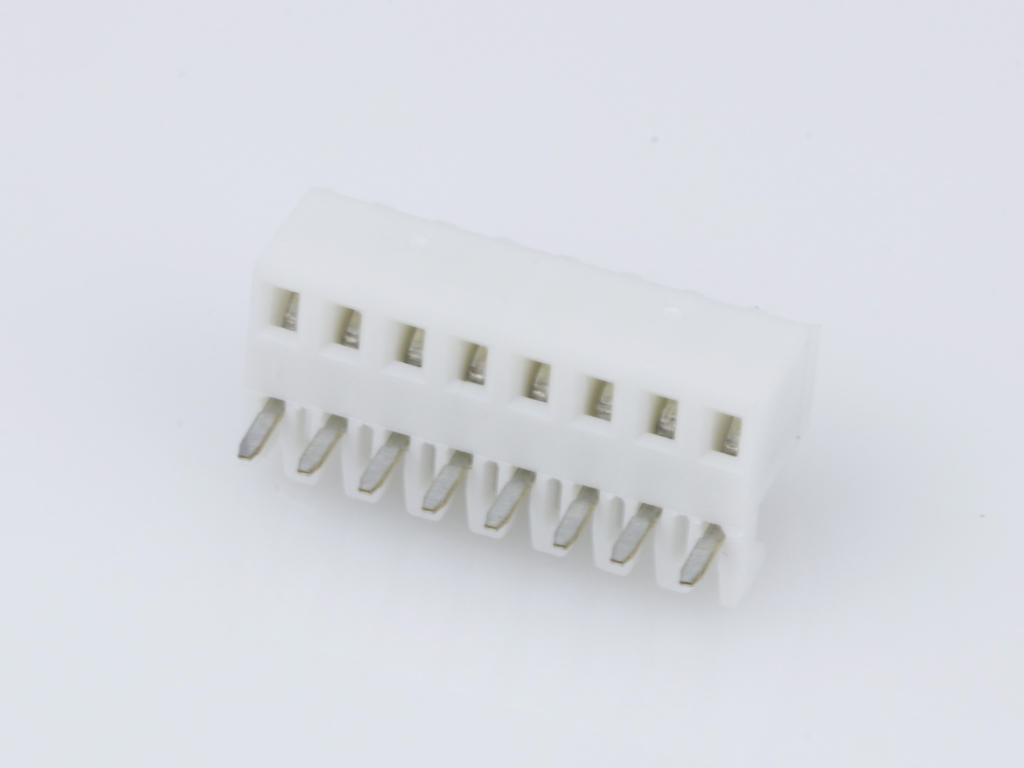

 | Molex 22-14-2084 | KK 254 PC Board Connector, Bottom Entry, 2.54?m Tin (Sn), 8 Circuits | |
