39-29-9089

Heilind Number:	MOL39-29-9089
Manufacturer:	Molex
Manufacturer Number:	39-29-9089
Datasheet:	Packaging Specifications
ECAD Model:

Description:

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39-29-9089
Color:	Natural
Series:	5566 - Mini-Fit Jr.
Amperage:	9 A
Connector Type:	Mini-Fit Jr.
Number of Contacts:	8
Number of Rows:	2
Termination Method:	Through Hole
Contact Material:	Brass
Body Orientation:	Straight
Pitch:	4.2 mm
Voltage:	600 V
Material:	Nylon
Orientation:	Vertical
Keying:	No
Tail Length:	3.5 mm
Operating Temperature Range:	-40 - 105 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.762 µm
Number of Contacts Loaded:	8
Mating Cycles:	30
PCB Locator:	Yes
PCB Retention:	Yes
Polarized to PCB:	Yes
Contact Termination Plating Thickness:	2.540 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Matte Tin
Maximum Solder Process Temperature:	240 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	005
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	4.2 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Material Flammability Standard:	94V-0
Part Aliases:	0039299089 5566-08A2GS-210
SKU:	MOL39-29-9089

Detailed Description

Introducing the Molex Mini-Fit Jr. Vertical Header, a high-performance PCB connector designed for reliable power and signal transmission in various electronic applications. With a compact 4.20mm pitch and featuring dual rows, this header accommodates 8 circuits, ensuring efficient connectivity. The snap-in plastic peg PCB lock offers secure attachment, while the gold-plated brass contacts guarantee excellent conductivity. Constructed with durable nylon housing and rated for up to 600V, this connector is suitable for demanding environments. Its straight body orientation and through-hole termination method make for easy installation, and with RoHS compliance, it meets international standards for environmental responsibility. Trust the Mini-Fit Jr. Vertical Header for seamless wire-to-board connections in your projects.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 15-47-7620	2.54mm Pitch C-Grid Header, Through Hole, Dual Row, Vertical, High Temperature, Shrouded, with Peg, 20 Circuits, 0.38
	Molex 26-60-4030	KK 396 Header, Vertical, Friction Lock, 3 Circuits, Tin (Sn) Plating
	Molex 39-00-0184	Mini-Fit Female Crimp Terminal, Selective Gold (Au) over Phosphor Bronze, 28-22 AWG, Loose-piece in bag

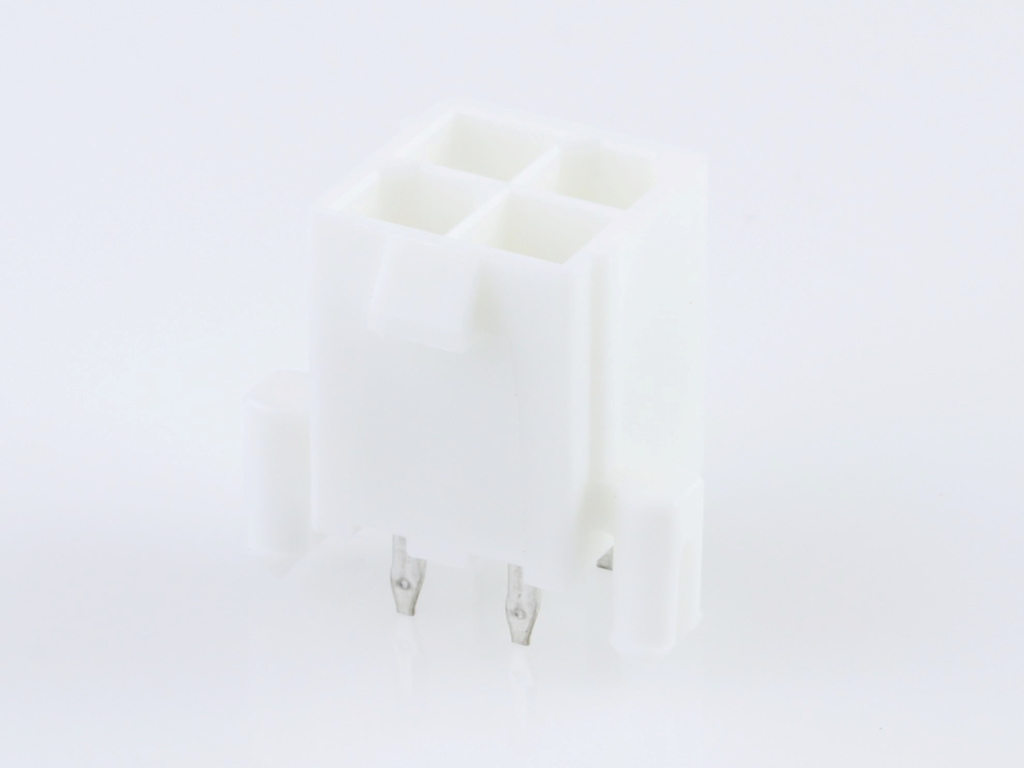

	Molex 39-29-9049	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural
	Molex 39-30-2031	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Single Row, 3 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural

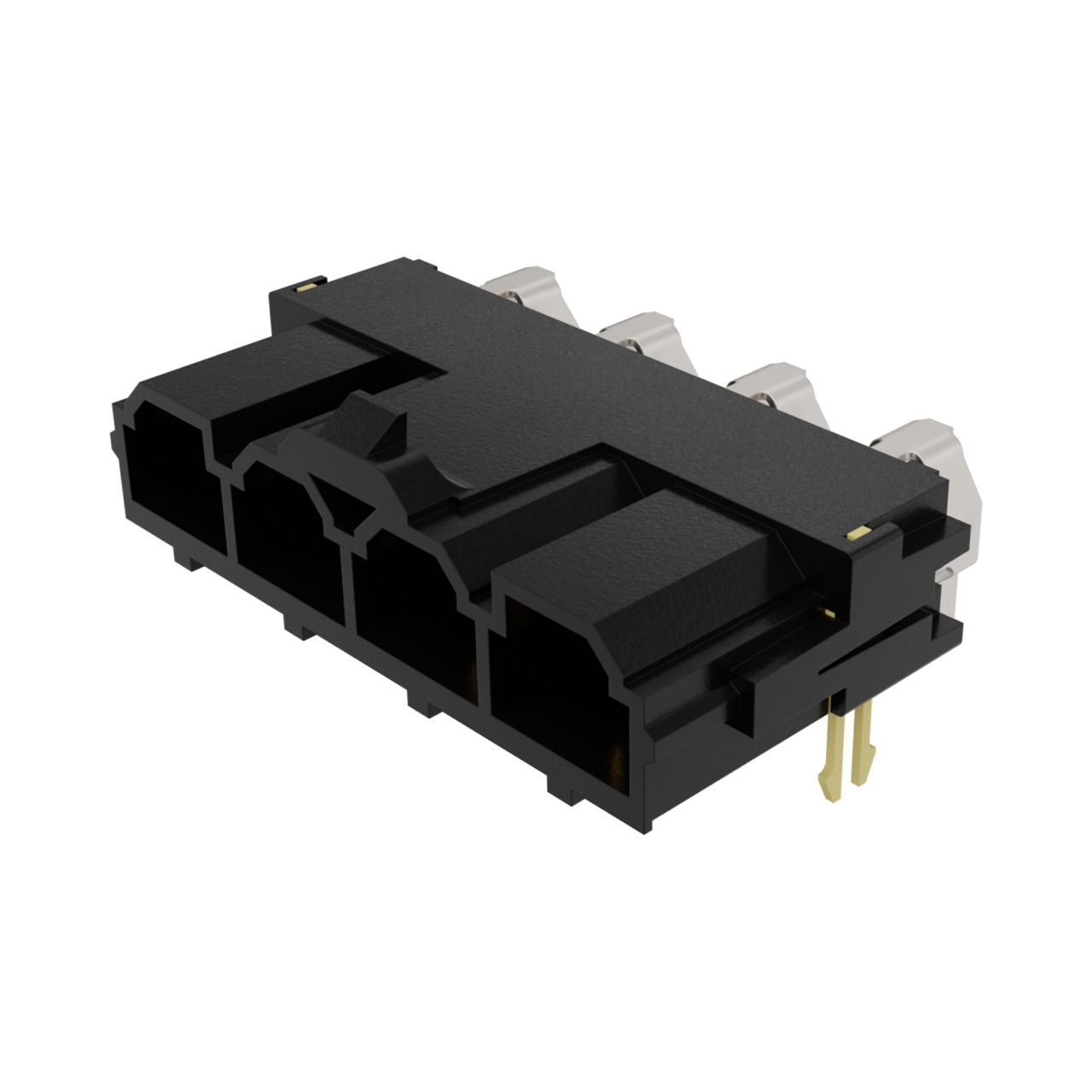

	Molex 42820-4213	10.00mm Pitch Mini-Fit Sr. Header, Single Row, Right Angle, 1.57mm PCB Thickness, 0.76
	Molex 43045-0228	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
	Molex 43045-0802	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 8 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Glow-Wire Capable, Black

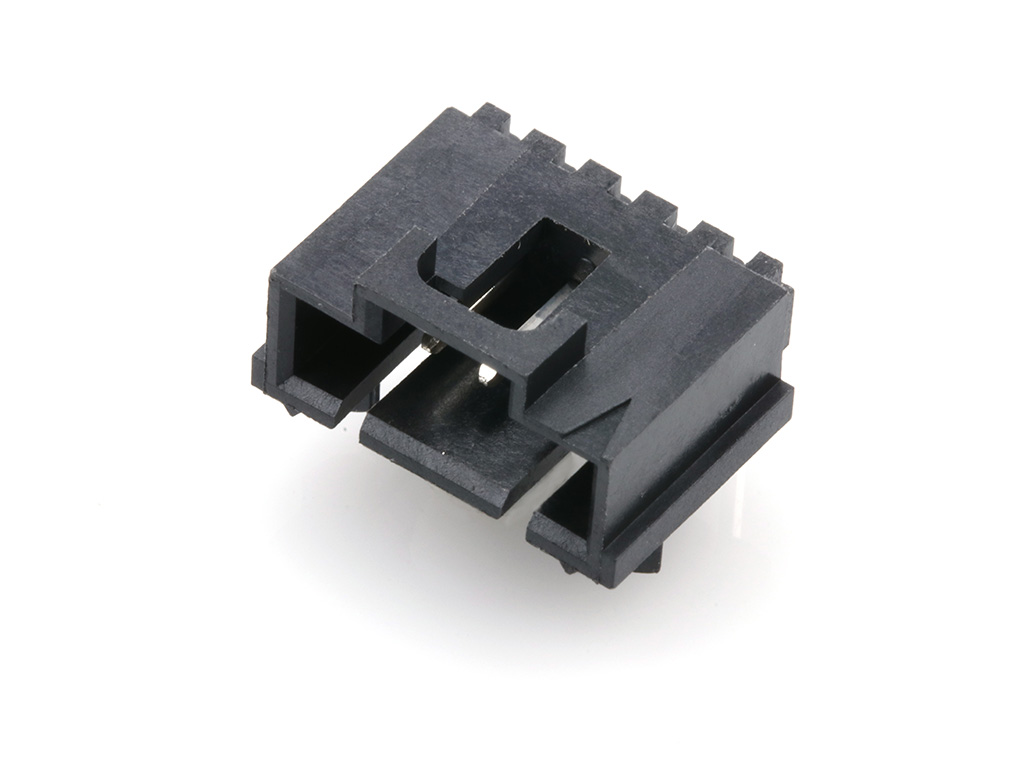

	Molex 70555-0039	2.54mm Pitch SL Header, Single Row, Right Angle, 3.05mm Pocket, Shrouded, with Press-fit Plastic Peg, 5 Circuits, 0.38
	Molex 90120-0123	2.54mm Pitch C-Grid III Header, Single Row, Vertical, 3 Circuits, Tin (Sn) Plating

Product Change Notice

Effective Date	Description of Change	Download
07/18/2022	510809 - Change to product. current vertical header housings have a drain hole and non-drain hole version housing the drain holes are no longer needed (they were used in the past when PCB boards were being washed and are no longer needed) therefore we are eliminating the drain hole option going forward	Download
02/14/2022	511607 - Retraction of PCN 510948. This PCN is a retraction/ recall of PCN 510809 communicated on 1/18/22 for "current vertical header housings have a drain hole and non-drain hole version housing the drain holes are no longer needed (they were used in the past when PCB boards were being washed and are no longer needed) therefore we are eliminating the drain hole option going forward." the reason for retraction is that part numbers that did not contain the drain hole option were included in the impacted parts list used to create pcn 510809 a new pcn will be created and customers will be notified	Download
12/31/2020	508352 - Supplier Change. actual molex tray supplier will close operations, molex is working getting new try supplier.	Download
12/24/2018	506262 - Capacity Change or Tool Replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling.	Download
02/18/2016	GCM 10706217 - New, Modified, Or Replacement Tooling.	Download
