39-29-6128

Heilind Number:	MOL39-29-6128
Manufacturer:	Molex
Manufacturer Number:	39-29-6128
Datasheet:	Application Specification
ECAD Model:

Description:

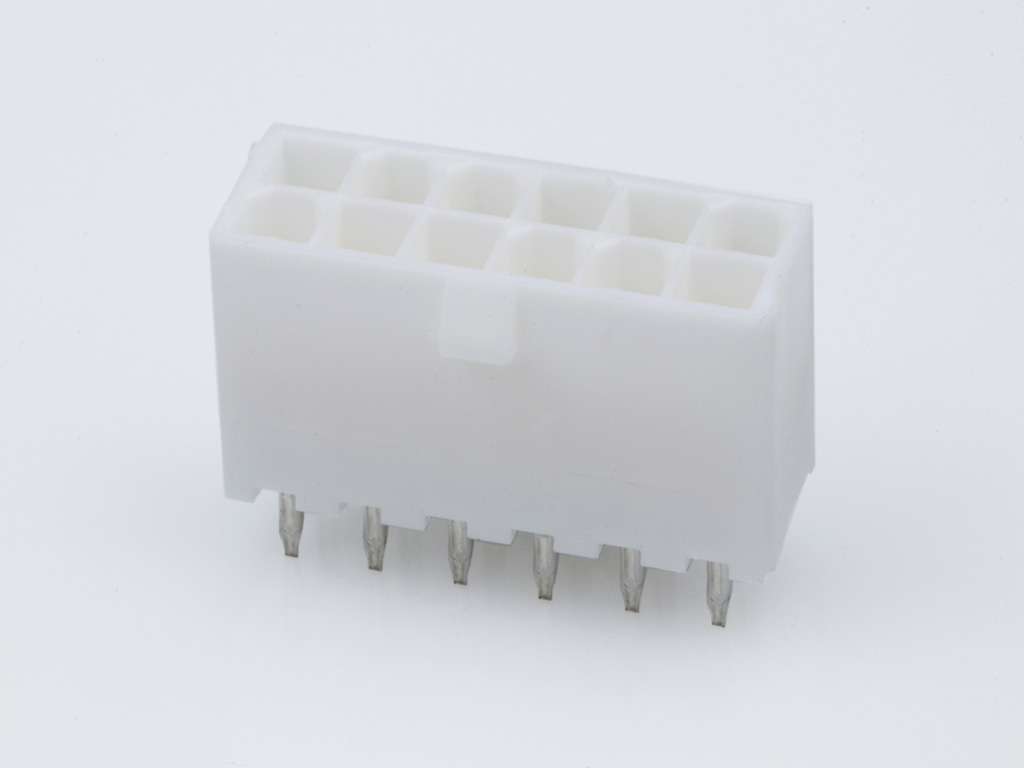

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 12 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39-29-6128
Color:	Natural
Series:	5566 - Mini-Fit Jr.
Amperage:	9 A
Connector Type:	Mini-Fit Jr.
Number of Contacts:	12
Number of Rows:	2
Termination Method:	Through Hole
Contact Material:	Brass
Body Orientation:	Straight
Pitch:	4.2 mm
Voltage:	600 V
Material:	Nylon
Orientation:	Vertical
Keying:	No
Tail Length:	3.5 mm
Operating Temperature Range:	-40 - 105 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.762 µm
Number of Contacts Loaded:	12
Mating Cycles:	30
PCB Locator:	Yes
PCB Retention:	Without
Polarized to PCB:	Yes
Contact Termination Plating Thickness:	2.540 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Matte Tin
Maximum Solder Process Temperature:	260 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	005
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	4.2 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Material Flammability Standard:	94V-0
Part Aliases:	0039296128 5566-12AGS-210
SKU:	MOL39-29-6128

Detailed Description

The Mini-Fit Jr. Vertical Header is a reliable and high-performance connector for your PCB applications. With a pitch of 4.20mm and featuring 12 circuits in a dual row configuration, it offers ample connectivity options. This version comes without a snap-in plastic peg PCB lock, making it versatile for various setups. Constructed with durable nylon material and gold-plated brass contacts, it ensures longevity and excellent conductivity. Rated for 600V and 9A, it is suitable for power and signal transmission. Its straight body orientation and through-hole termination method provide easy installation. RoHS compliant and lead-free process capable, it meets environmental standards. The connector is part of the Molex Wire-to-Board/Wire-to-Wire family, guaranteeing compatibility and reliability for your designs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 09-65-2028	SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 2 Circuits
	Molex 09-65-2058	SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 5 Circuits
	Molex 09-65-2068	SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 6 Circuits
	Molex 39-29-0043	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
	Molex 39-29-0063	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
	Molex 39-29-0103	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 10 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
	Molex 39-29-6088	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural

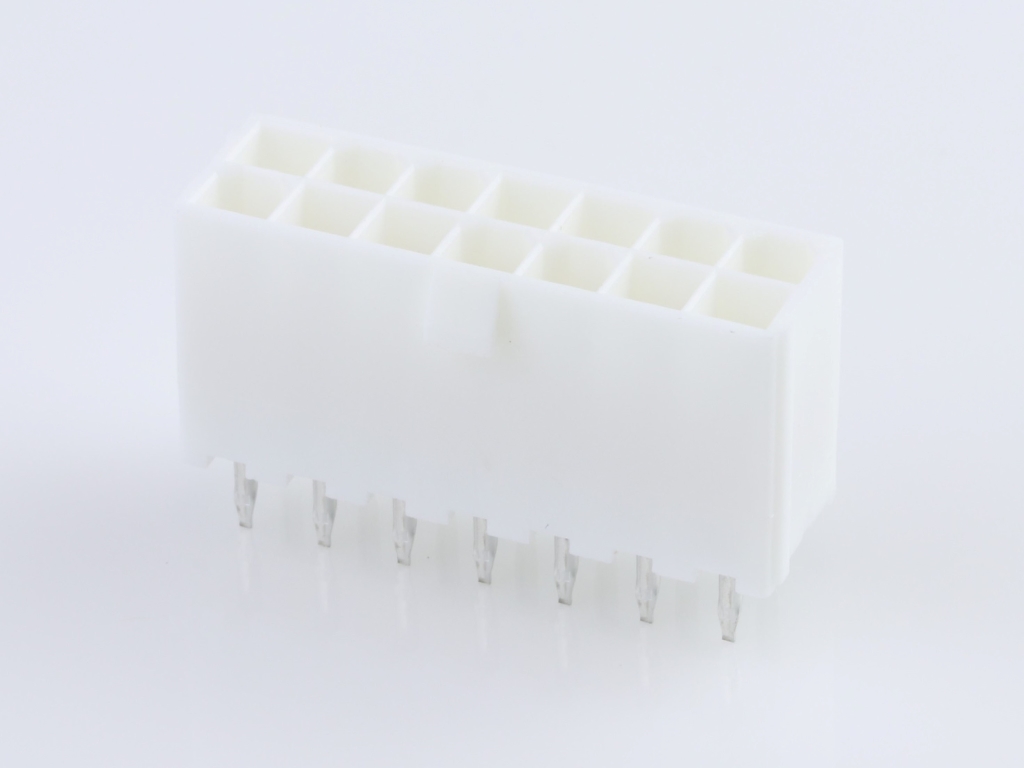

	Molex 39-29-6148	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 14 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
