| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39-28-8040 |
| Gender: | Male |
| Number of Contacts: | 4 |
| Number of Rows: | 2 |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Pitch: | 4.2 mm |
| Shroud Type: | Yes |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 9 A |
| Voltage Rating: | 600 V |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Straight |
| Mounting Type: | Through Hole |
| PCB Connector Type: | PCB Mount Header |
| SKU: | MOL39-28-8040 |
39-28-8040
Specifications
Detailed Description
Introducing the Mini-Fit Jr. Vertical Header, a high-performance connectivity solution for your PCB projects. This dual-row header features 4 circuits, each accommodating up to 9A of current, with a pitch of 4.20mm for efficient signal transmission. Constructed with durable nylon and brass contacts plated with tin, it ensures reliable conductivity in straight orientation. With a voltage rating of 600V and operating temperature range from -40 to 105°C, it guarantees robust performance in various environments. This RoHS-compliant connector is suitable for wire-to-board applications, offering secure and polarized mating with PCBs. Whether in industrial machinery or consumer electronics, the Mini-Fit Jr. Header provides a dependable and space-saving solution for your design needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 22-28-4360 | KK 254 Breakaway Header, Vertical, 36 Circuits, Tin (Sn) Plating, Mating Pin Length 6.09mm |  |
 | Molex 39-00-0077 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+20, 22+18, 20+20 or Single 16 AWG, Reel | |
 | Molex 39-01-2021 | Mini-Fit Jr. Plug Housing, Dual Row, 2 Circuits, UL 94V-2, with Panel Mounting Ears, Natural | |
 | Molex 39-01-2040 | Mini-Fit Jr. Receptacle Housing, Dual Row, 4 Circuits, UL 94V-2, Natural | |
 | Molex 39-28-8020 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural | |
 | Molex 39-28-8060 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural | |
 | Molex 39-28-8080 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural | |
 | Molex 39-28-8100 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 10 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural | |
 | Molex 43045-0214 | Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 Circuits, with PCB Polarizing Peg, 0.76µm Gold Plating, Glow-Wire Capable, Black | |
 | Molex 43045-0414 | Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Polarizing Peg, 0.76µm Gold Plating, Glow-Wire Capable, Black | |

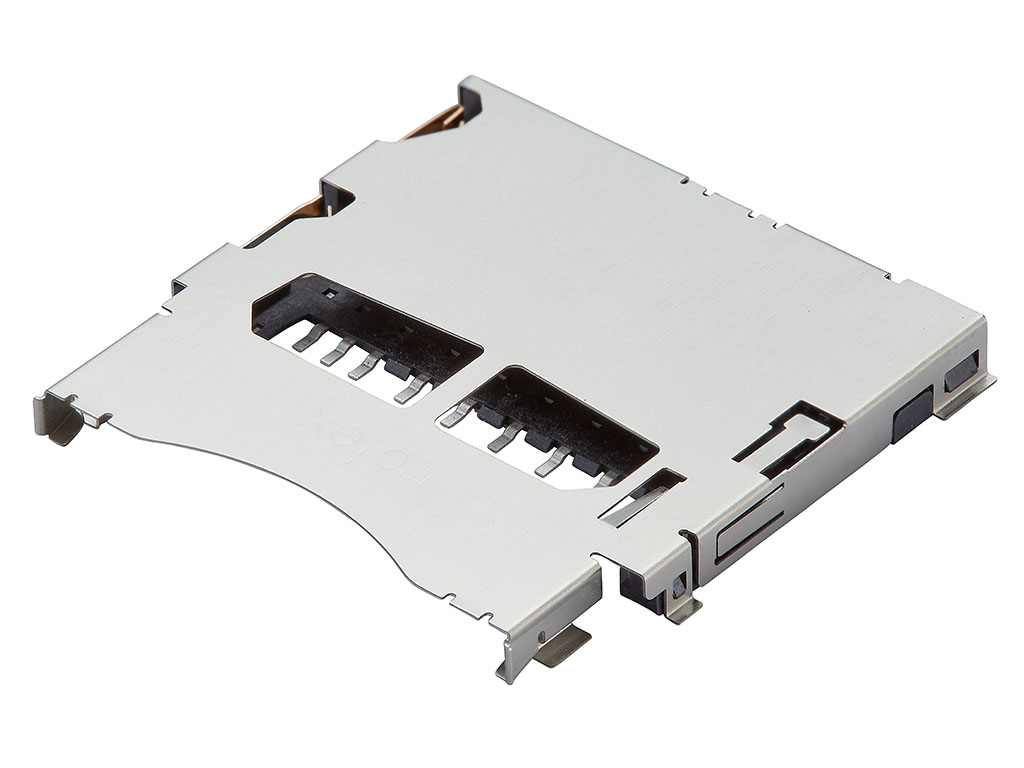

 | Molex 503500-0991 | 2.50mm Pitch SD Memory Card Connector, 2.95mm Height, Normal Mount, Push-Push, with Detect, Protect and Anti-Card-Fly-Out Features | |
