| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39-01-2246 |
| Color: | Natural |
| Series: | 5559 - Mini-Fit Jr. |
| Amperage: | 13 A |
| Connector Type: | Mini-Fit Jr. |
| Gender: | Plug |
| Housing Material: | Nylon |
| Number of Contacts: | 24 |
| Number of Rows: | 2 |
| Mount Type: | Panel Mount |
| Pitch: | 4.2 mm |
| Material: | Nylon |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board, Wire to Wire |
| Termination Pitch: | 4.2 mm |
| Glow Wire Capable: | No |
| Stackable: | No |
| Breakaway: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0039012246 5559-24P-210 |
| SKU: | MOL39-01-2246 |
39-01-2246
Specifications
Detailed Description
Introducing the 39-01-2246, a high-performance Mini-Fit Jr. Plug Housing designed for robust power applications. This dual-row housing features 24 circuits for efficient connectivity, with each contact rated for 13 A. Constructed from UL 94V-0 rated nylon, it ensures superior durability and safety. The natural color housing includes panel mounting ears for easy installation. With a pitch of 4.2 mm and operating temperature range of -40 to 105 °C, it is suitable for a wide range of environments. This connector is polarized to mate, guaranteeing proper alignment, and is RoHS compliant for environmentally friendly usage. Perfect for wire-to-wire and wire-to-board connections, the 39-01-2246 is a reliable solution for your power transmission needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

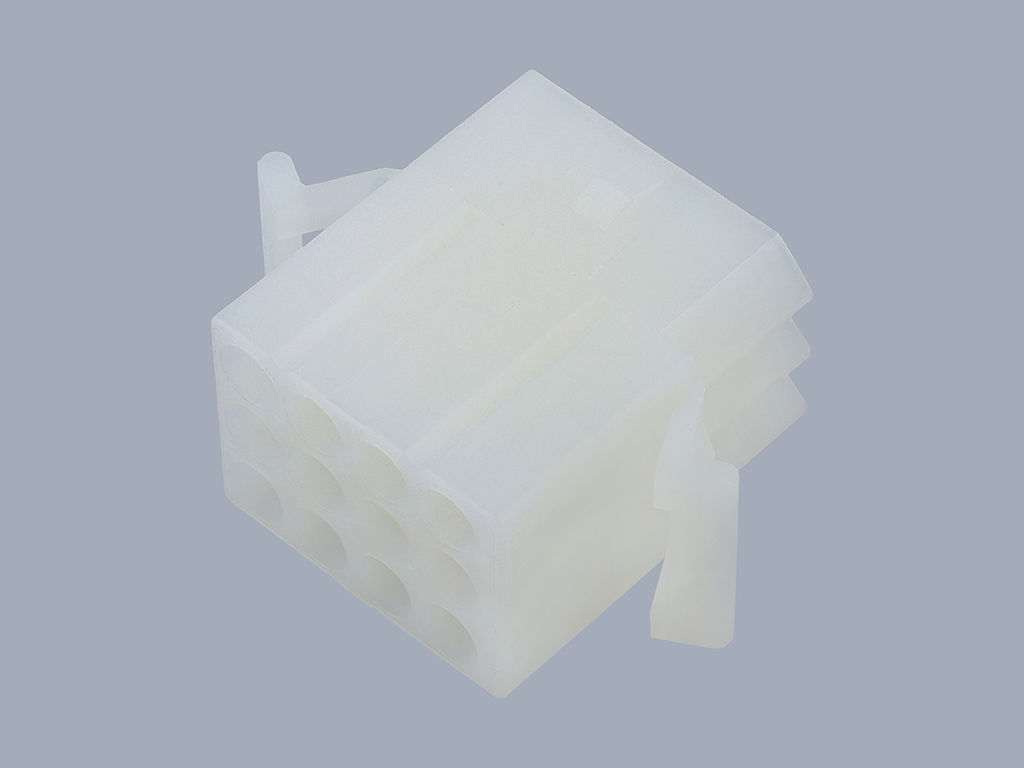

 | Molex 03-09-1125 | 2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 12 Circuits, 3 Rows, Natural |  |
