| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39-00-0089 |
| Series: | 5556 - Mini-Fit |
| Amperage: | 9 A |
| Connector Type: | Mini-Fit |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Mating Cycles: | 30 |
| Contact Termination Plating Thickness: | .762 µm |
| Wire Size: | 16 AWG |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1.8 - 3.1 mm |
| Part Aliases: | 0039000089 5556GS3 |
| SKU: | MOL39-00-0089 |
39-00-0089
| Heilind Number: | MOL39-00-0089 |
| Manufacturer: | Molex |
| Manufacturer Number: | 39-00-0089 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the Mini-Fit Female Crimp Terminal, a reliable and high-performance connectivity solution for your power applications. Constructed with durable Brass material and featuring a Tin contact plating, this terminal ensures excellent conductivity and corrosion resistance. With a voltage rating of 600 V and an amperage of 9 A, it is suitable for demanding environments. The Gold (Au) plating over Brass in the mating area guarantees a secure and low-resistance connection. Designed for 16 AWG wires with a termination method of crimp or compression, it offers easy installation. With a reel packaging for convenience, this terminal is a perfect choice for your Wire-to-Wire or Wire-to-Board connections. Rest assured, it is RoHS compliant, making it a sustainable option for your projects. Upgrade to the Mini-Fit Female Crimp Terminal for reliable power transmission in various applications.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

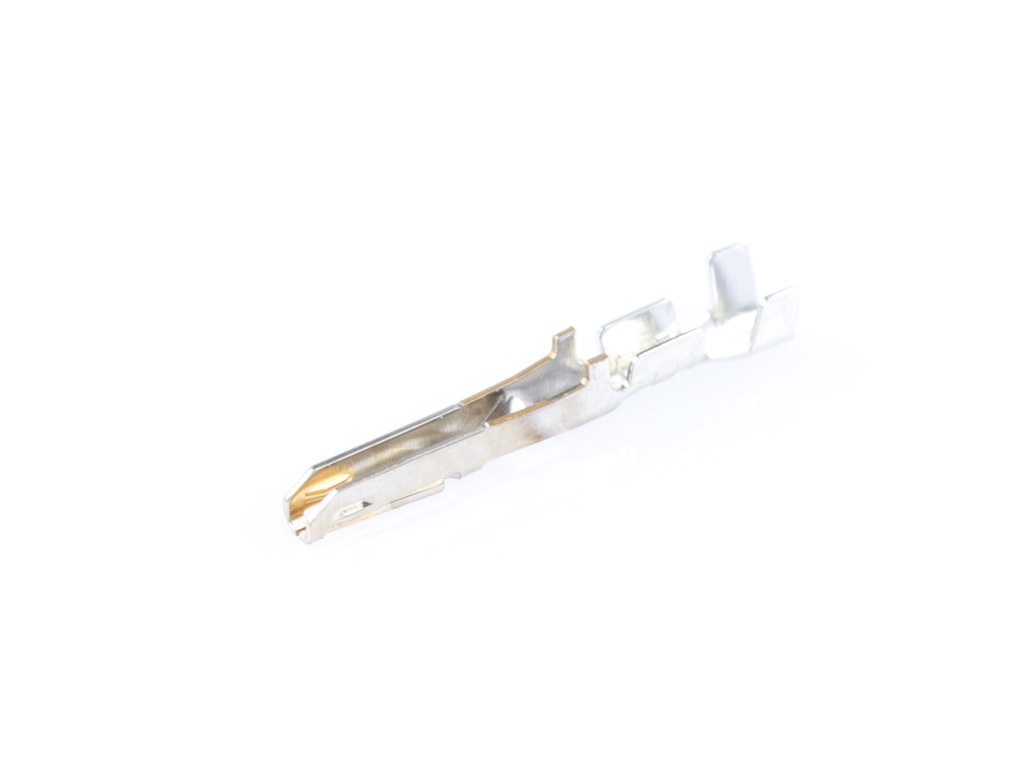

 | Molex 105300-1300 | Nano-Fit Crimp Terminal, Female, 0.76 |  |

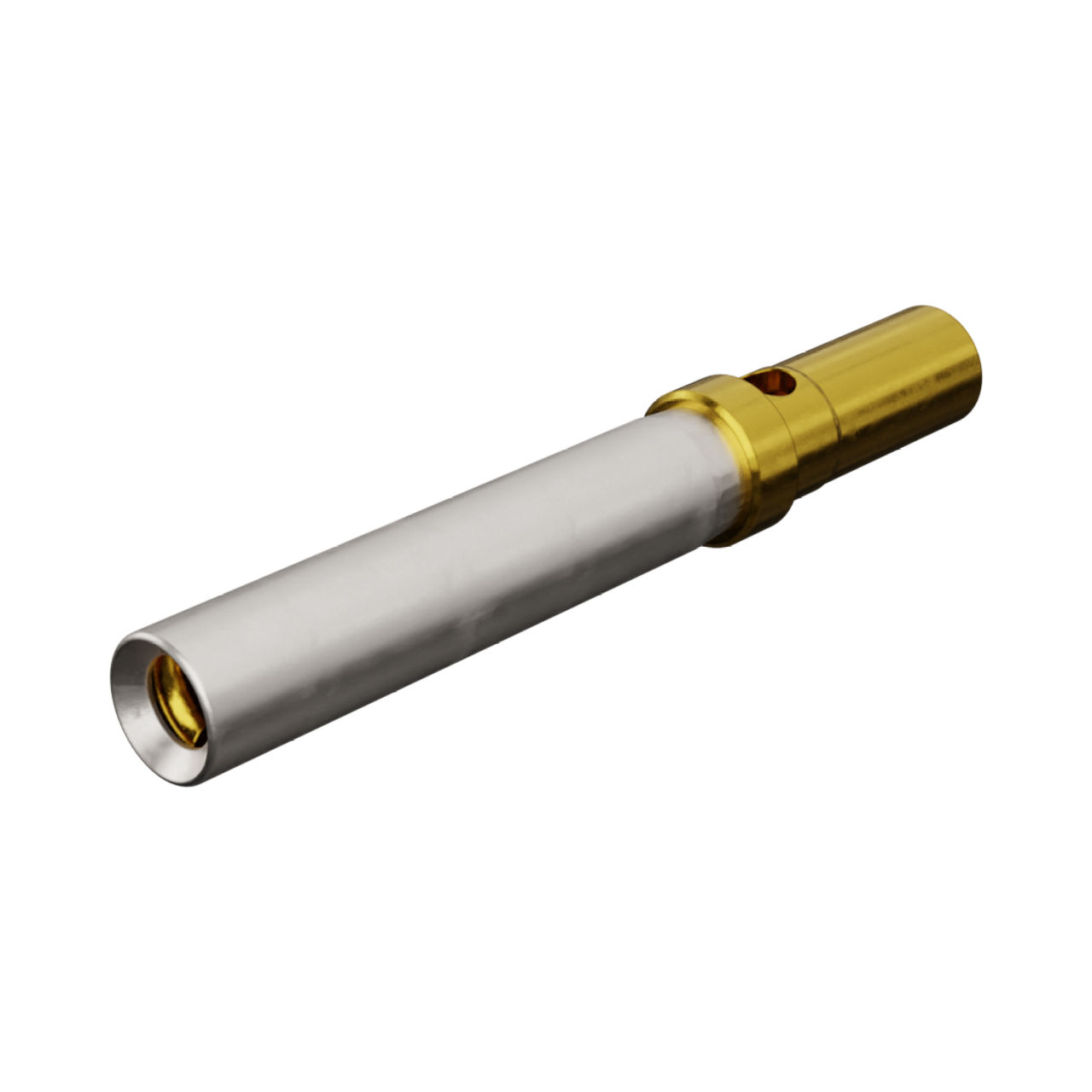

 | Molex 173112-0209 | FCT Machined Contact, Female, Crimp, 0.20µm Gold Plating, 20-24 AWG | |
