| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39-00-0067 |
| Series: | 5558 - Mini-Fit |
| Amperage: | 9 A |
| Connector Type: | Mini-Fit |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .889 µm |
| Mating Cycles: | 30 |
| Contact Termination Plating Thickness: | .914 µm |
| Wire Size: | 22 AWG, 24 AWG, 26 AWG, 28 AWG |
| Connector System: | Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | .9 - 1.8 mm |
| Part Aliases: | 0039000067 5558-PBT2 |
| SKU: | MOL39-00-0067 |
39-00-0067
Specifications
Detailed Description

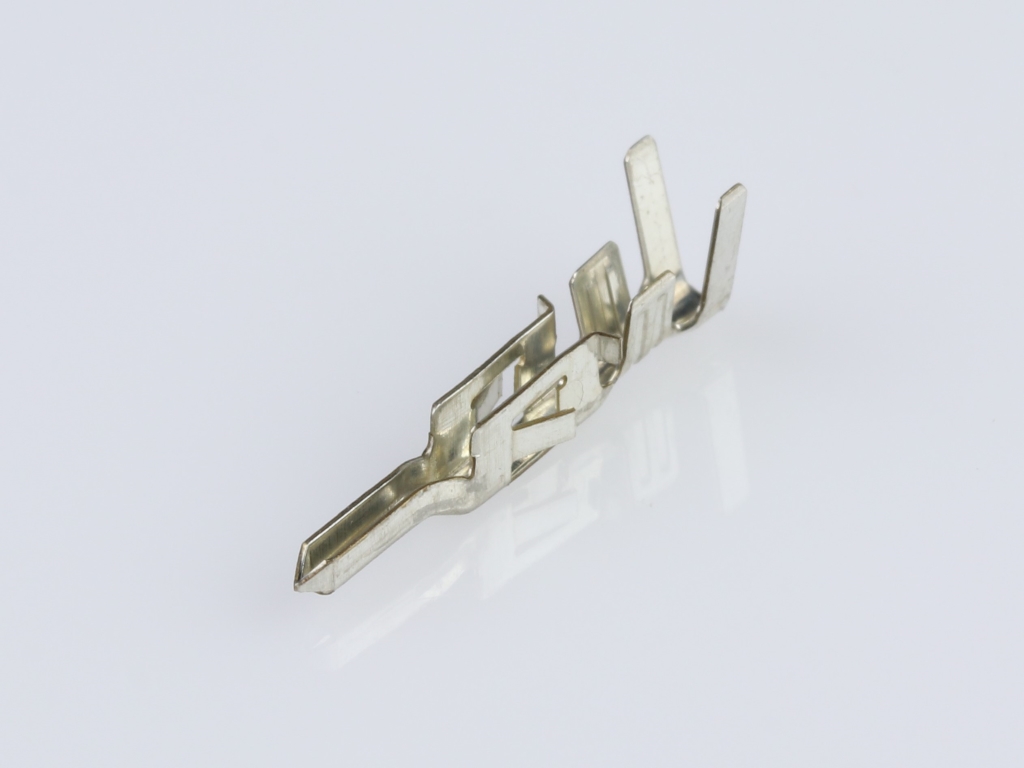

Introducing the Molex Mini-Fit Male Crimp Terminal, a reliable and versatile connector for your power applications. Constructed with Tin (Sn) over Phosphor Bronze, this terminal ensures excellent conductivity and durability. Suitable for 28-22 AWG wires, it offers a secure and efficient connection. With a current rating of 9 A and a voltage tolerance of 600 V, it is perfect for high-power environments. The crimp or compression termination method provides easy installation. Featuring Tin contact plating and a mating cycle of 30, this terminal guarantees long-lasting performance. RoHS compliant and suitable for wire-to-wire systems, it is a must-have for your connectivity needs. Upgrade your projects with the Molex Mini-Fit Male Crimp Terminal.
