35748-0310

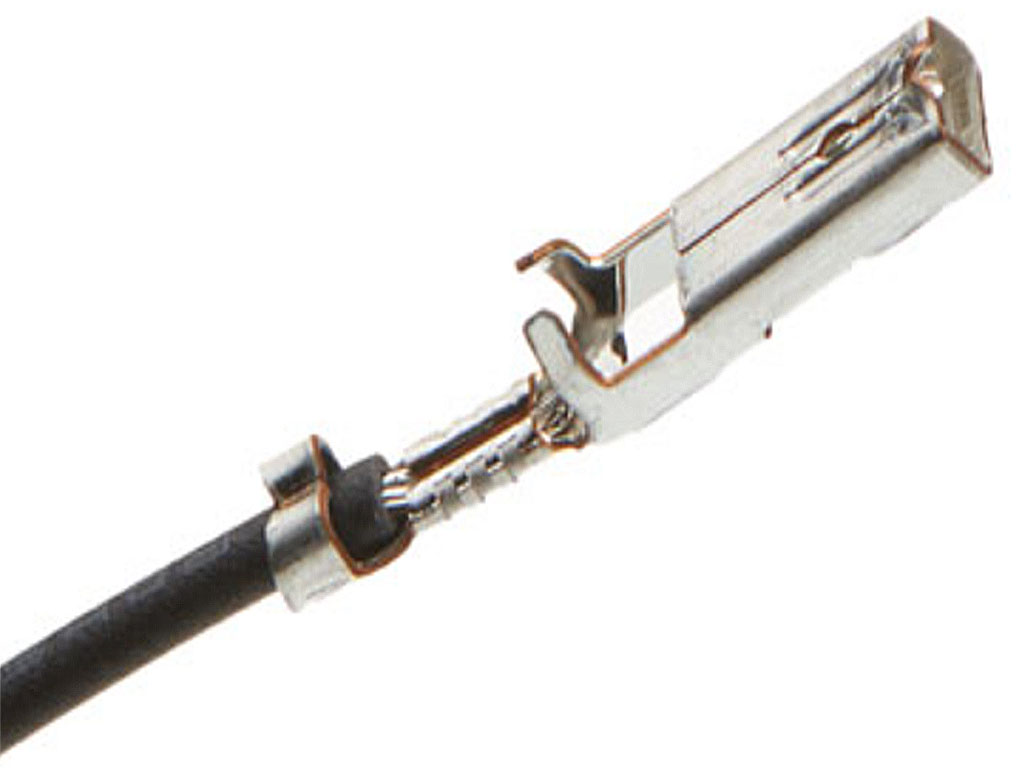

VersaBlade .070 Female Crimp Terminal, 18+18, 20+20 AWG, Type B
Part Aliases: Molex 0357480310
The 35748-0310, a high-quality VersaBlade .070 Female Crimp Terminal designed for reliable power connections. This terminal accommodates 18+18 and 20+20 AWG wires, featuring a Type B configuration for secure attachments. Crafted from durable phosphor bronze with tin plating, it ensures excellent conductivity and corrosion resistance. Suitable for crimp or compression termination methods, it offers versatility in installation. Packaged on a convenient reel, it facilitates efficient assembly processes. With a tin-plated contact mating area and termination, it guarantees a stable connection with a plating thickness of .813 µm. RoHS compliant and suitable for wire-to-wire applications, this connector is a dependable solution for your project needs.
Details
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 35748-0310 |
| Series: | 35748 - VersaBlade |
| Connector Type: | VersaBlade |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Packaging: | Reel |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .813 µm |
| Contact Termination Plating Thickness: | .813 µm |
| Wire Size: | 18 AWG, 20 AWG |
| Connector System: | Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 6 mm |
| Part Aliases: | 0357480310 |
| SKU: | MOL35748-0310 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
