| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 35745-0210 |
| Series: | 35745 - VersaBlade |
| Connector Type: | VersaBlade |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .813 µm |
| Contact Termination Plating Thickness: | .813 µm |
| Wire Size: | 14 AWG, 18 AWG |
| Connector System: | Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.8 mm |
| Part Aliases: | 0357450210 |
| SKU: | MOL35745-0210 |
35745-0210
Specifications
Detailed Description
Introducing the 35745-0210, a high-quality VersaBlade .070 Male Crimp Terminal designed for reliable power connections in your projects. This Type A terminal is suitable for 14-18 AWG wires, featuring a durable brass construction with tin plating for enhanced conductivity and corrosion resistance. Its versatile Wire to Wire connector system allows for easy integration, while the included reel packaging ensures convenient storage and handling. With a compact design and a wire insulation diameter of 3.8 mm, this terminal is perfect for various applications in automotive, industrial, and consumer electronics. Rest assured, it is RoHS compliant, making it a safe and environmentally friendly choice for your projects. Update your connector arsenal with the 35745-0210 for efficient and secure wire terminations.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19-09-1039 | 2.36mm Diameter Standard .093" Pin and Socket Receptacle Housing with Positive Latch, 94V-2, 3 Circuits |  |
 | Molex 19215-0047 | VersaKrimp Butt Splice for 1/0 AWG Wire, Carton | |
 | Molex 35150-0210 | VersaBlade Hybrid Receptacle Housing, with Mounting Ears, 2 Circuits, Natural | |
 | Molex 35150-0292 | VersaBlade Terminal Position Assurance (TPA) Retainer, 6.20mm Pitch, 2 Circuits, Red | |

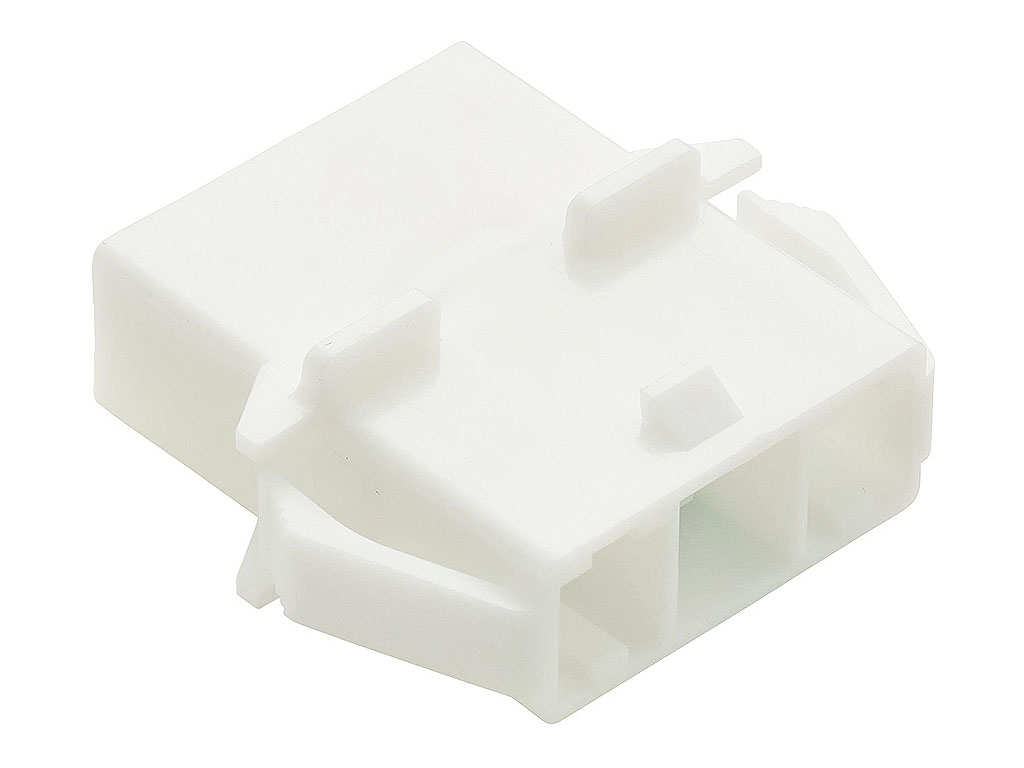

 | Molex 35150-0310 | VersaBlade Hybrid Receptacle Housing, with Mounting Ears, 3 Circuits, Natural | |
 | Molex 35151-0210 | VersaBlade Hybrid Plug Housing, 2 Circuits, Positive Lock, Natural | |
 | Molex 35151-0410 | VersaBlade Hybrid Plug Housing, 4 Circuits, Positive Lock, Natural | |
 | Molex 35151-0414 | VersaBlade Hybrid Plug Housing, 4 Circuits, Positive Lock, Blue | |
 | Molex 35180-0600 | VersaBlade Multi-Module 2-2-2 Hybrid Receptacle Housing, with Mounting Ears, 6 Circuits, Natural | |
 | Molex 35745-0210 | Cut Strip - VersaBlade Male Crimp Terminal, 14-18 AWG, Type A | |
 | Molex 35745-0210 | Loose Piece - VersaBlade Male Crimp Terminal, 14-18 AWG, Type A | |
 | Molex 35746-0210 | VersaBlade Female Crimp Terminal, 18-14 AWG, Type A | |
 | Molex 35747-0210 | VersaBlade Male Crimp Terminal, 18-14 AWG, Type B | |
 | Molex 35965-9213 | VersaBlade Multi-Module Hybrid Plug Housing, 2 Circuits, Positive Lock, Type B, Yellow, Glow-Wire Capable | |
 | Molex 50-84-1025 | 2.13mm Diameter MLX Power Crimp Housing Plug, 2 Circuits, Natural | |
 | Molex 64320-1319 | .635mm, 1.50mm, CMC Receptacle, 48 Circuits, Left Wire Output, Brown Coding, Mat Sealed | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/22/2014 | GCM 10624848 - Tooling / Equipment Transfer. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 35745-0210 |
| Other Names: | 0357450210 |
