35507-0400

Heilind Number:	MOL35507-0400
Manufacturer:	Molex
Manufacturer Number:	35507-0400
Datasheet:	Product Specification
ECAD Model:

Description:

2.00mm Pitch Sherlock Wire-to-Board Housing, Natural, 4 Circuits

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 35507-0400
Color:	Natural
Series:	35507 - Sherlock
Amperage:	2 A
Connector Type:	Sherlock
Gender:	Receptacle
Housing Material:	Polyester
Number of Contacts:	4
Number of Rows:	1
Pitch:	2 mm
Material:	Polyester
Keying:	No
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Signal
Polarized to Mate:	Yes
Connector System:	Wire to Board
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Material Flammability Standard:	94V-0
Part Aliases:	0355070400
Contact Detail:	4
SKU:	MOL35507-0400

Detailed Description

Introducing the 35507-0400, a high-performance 2A Sherlock connector designed for seamless wire-to-board applications. Crafted with durable polyester housing, this connector features 4 contacts in a single row, offering reliable signal transmission. With a compact 2mm pitch and operating temperature range of -40 to 105°C, it ensures optimal performance in diverse environments. Engineered for polarization and secure mating, it boasts RoHS compliance and is in stock for immediate shipping. Trust the 35507-0400 for efficient and dependable connectivity in your projects.

Frequently Bought Together

Product	Part #	Description	Stock

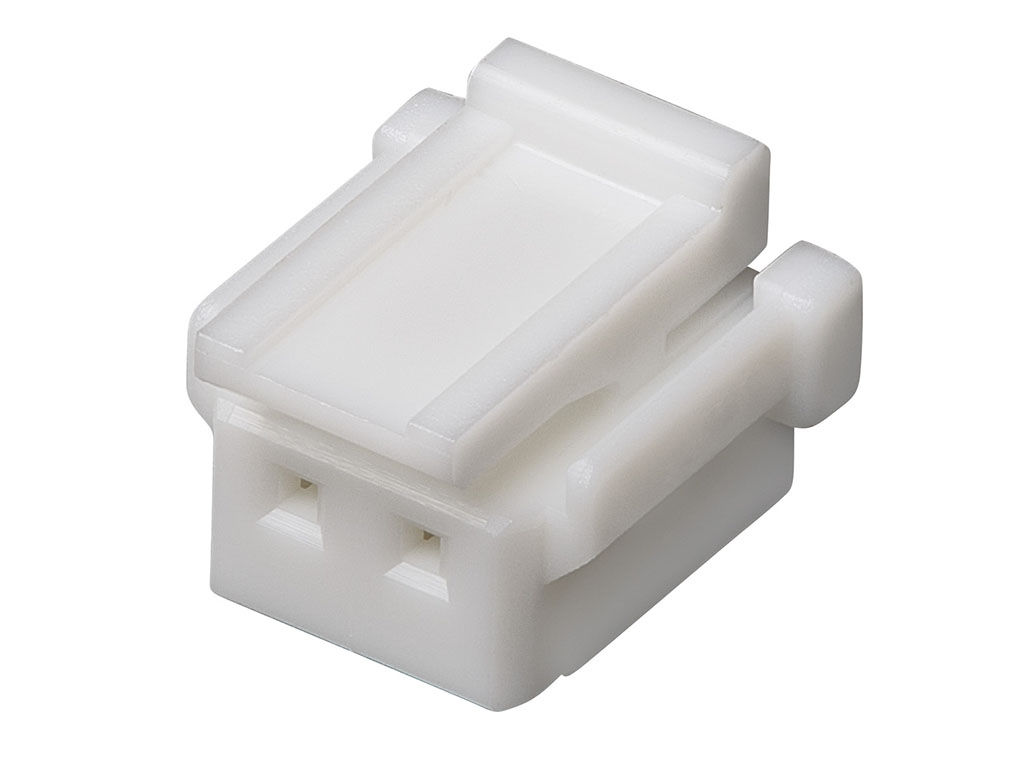

	Molex 35507-0200	2.00mm Pitch Sherlock Wire-to-Board Housing, Natural, 2 Circuits
	Molex 35507-0300	2.00mm Pitch Sherlock Wire-to-Board Housing, Natural, 3 Circuits
	Molex 35507-0500	2.00mm Pitch Sherlock Wire-to-Board Housing, Natural, 5 Circuits
	Molex 35507-0600	2.00mm Pitch Sherlock Wire-to-Board Housing, Natural, 6 Circuits

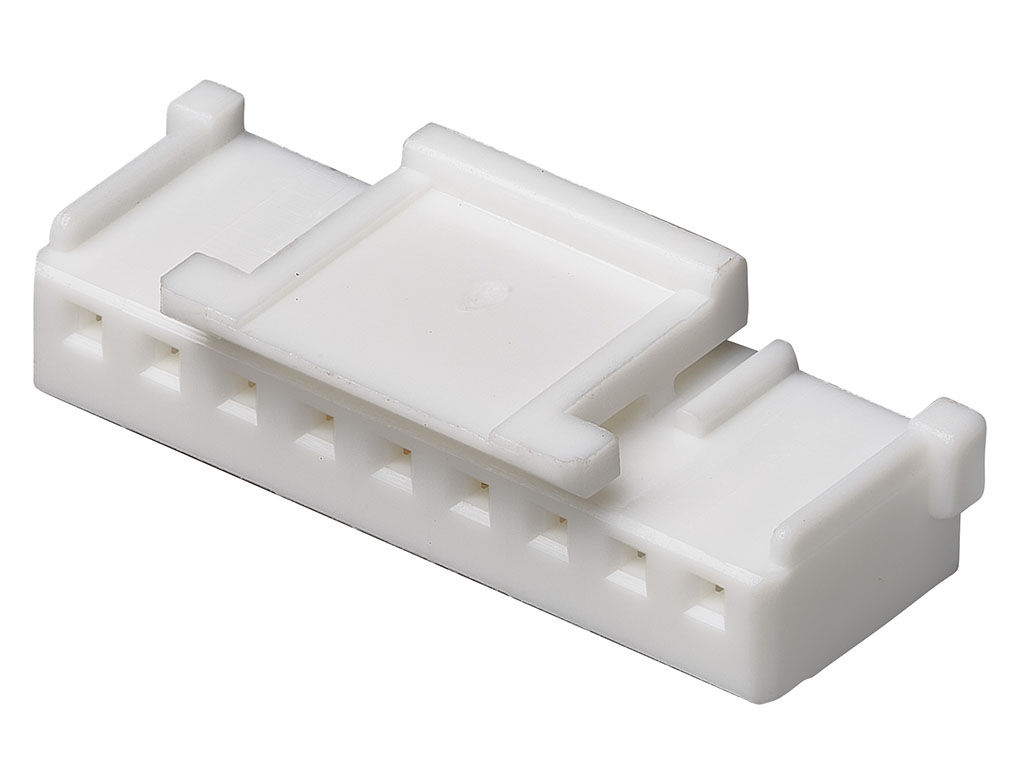

	Molex 35507-0700	2.00mm Pitch Sherlock Wire-to-Board Housing, Natural, 7 Circuits
	Molex 39-01-2020	Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-2, Natural
	Molex 39-01-3043	Mini-Fit Jr. Plug Housing, Dual Row, 4 Circuits, UL 94V-2, without Panel Mounting Ears, Natural
	Molex 39-01-4051	Mini-Fit Jr. Receptacle Housing, Single Row, 5 Circuits, UL 94V-0, Natural
	Molex 43025-0400	Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43030-0003	Micro-Fit 3.0 Crimp Terminal, Female, with Select Gold (Au) Plated Phosphor Bronze Contact, 24-20 AWG, Reel
	Molex 43645-0300	Micro-Fit 3.0 Receptacle Housing, Single Row, 3 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 50-57-9405	SL Crimp Housing, Single Row, Version G, Positive Latch, 5 Circuits, Black
	Molex 501646-1600	2.00mm Pitch iGrid Wire-to-Board Housing, Dual Row, Positive Lock, 16 Circuits
	Molex 501647-1000	2.00mm Pitch iGrid Wire-to-Board Crimp Terminal, Female, 22-26 AWG, Reel
	Molex 50212-8000	2.00mm Pitch Crimp Terminal, Female, 24-30 AWG, Reel
	Molex 50351-8000	2.50mm Pitch Mini-Lock Wire-to-Board and Wire-to-Wire Crimp Terminal, Phosphor Bronze, Reel, for 51102, 51103 and 51163 Housings
	Molex 51021-0200	1.25mm Pitch PicoBlade Wire-to-Wire and Wire-to-Board Housing, Female, 2 Circuits, Natural

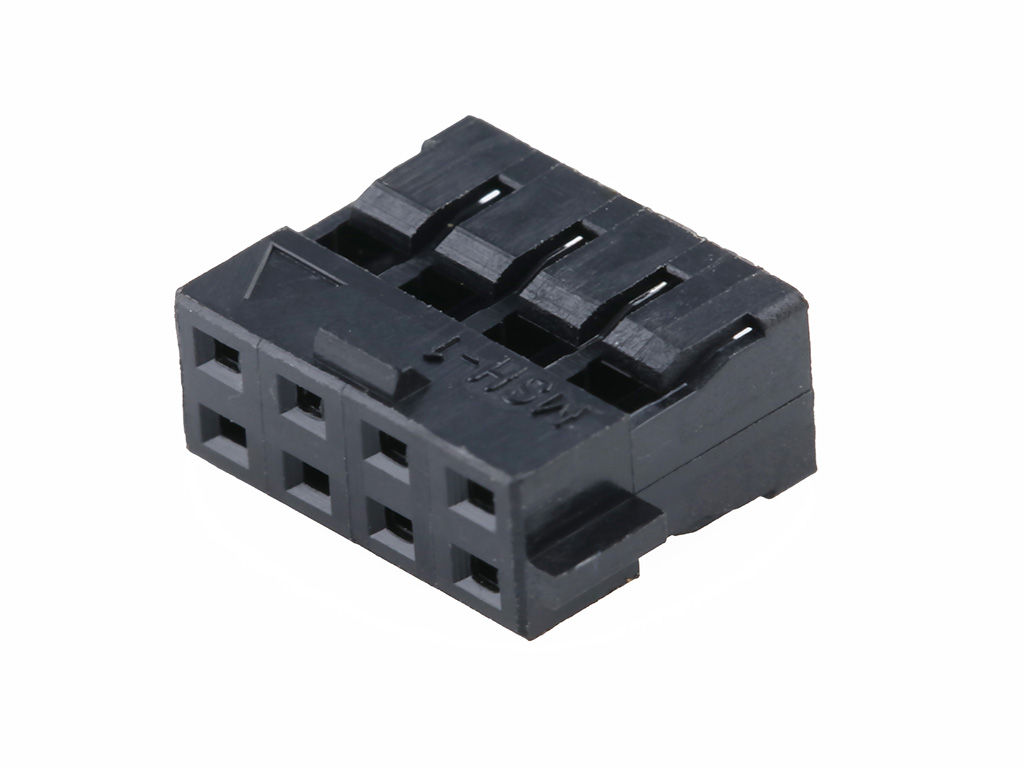

	Molex 51110-0860	2.00mm Pitch, Milli-Grid Receptacle Housing, 8 Circuits, without Center Polarization Key, with Locking Ramp, Lead-Free

Product Change Notice

Effective Date	Description of Change	Download
10/15/2021	510489 - Change Supplier. resin manufacture had claimed Force Majeure to molex at the end of May. no guarantee of recovery time frames from their shanghai plant but their Nansha plant can support the same grade of material in order to support continually molex decided to accept the vendors proposal current material source: Shanghai China New Material Source: Nansha China	Download
08/31/2021	510250 - Equipment Transfer, Production Transfer or Rearrangement. transfer from Molex Gwangju plate in Korea to Ansan plant in Korea due to Gwangju plant closure . molex has decided to consolidate its Ansan and Gwangju plants into a single integrated site in Ansan Plant.	Download
10/31/2019	507613 - Equipment Transfer, Production Transfer or Rearrangement. This letter is to inform you that production of the part(s) identified in this notice is being moved to a different production location.	Download
07/01/2019	506590 - Equipment Transfer, Production Transfer or Rearrangement. This letter is to inform you that production of the part(s) identified in this notice is being moved to a different production location. No changes will be made to the product as a result of this move.	Download
02/01/2016	GCM 10728471 - Tooling / Equipment Transfer. The purpose of this letter is to inform you that 511030600, 511030800, 511030900, 511031000, 511031200, 50375023, 351550300 and 355070400 will be transferred from Molex Korea Ansan plant to Molex Korea Gwangju plant to build a more efficient production and solve capability flexibility of Ansan plant. These products are not affected by transferring of manufacturing site due to no risk as the same tool and material spec. will be used in Gwangju plant. The mass production start date at Gwangju plant is scheduled on February 1 of 2016. Implementation Date may be changed due to customer demand and production situation.	Download
02/01/2016	GCM 10742376 - Supplier Changes To Raw Material. The purpose of this letter is to notice customer that resin supplier will remove the registration from UL#E45587 and unify into UL#E207780. Affected series are 35155, 35156, 35507. There is no change in design and process for Molex. No change of product fit, form, function.	Download
04/15/2015	GCM 10680933 - Tooling / Equipment Transfer.	Download
01/20/2014	GCM 10615842 - Tooling / Equipment Transfer.	Download
