34900-6143

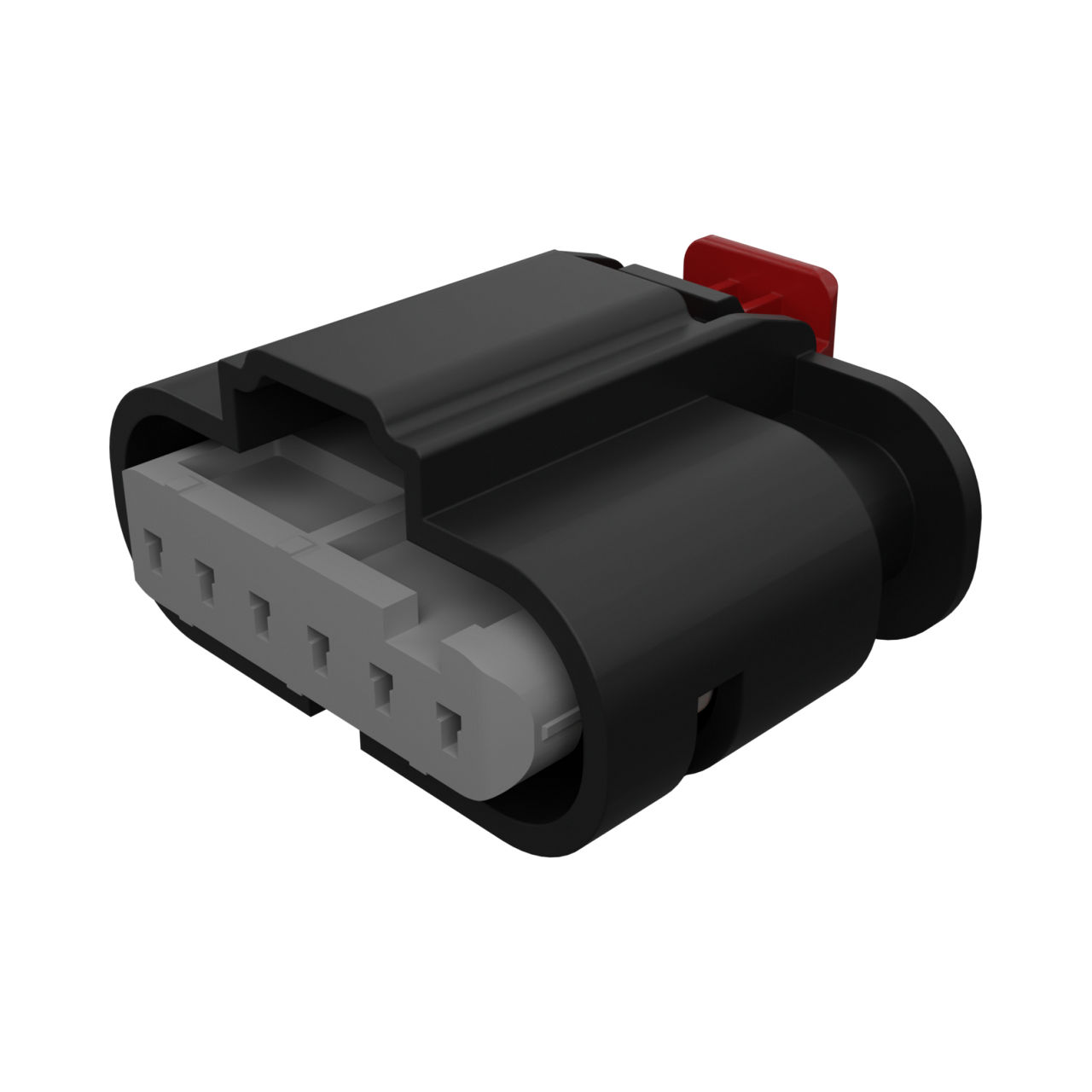

MXP120 Sealed Receptacle, 6 Circuit, Black Housing with Long Shroud (T3-V2-S3 with Backshell, T3-V2-S2 without Backshell), Key D, Stone Gray Insert
Part Aliases: Molex 0349006143
The MXP120 Sealed Receptacle, a high-performance connector designed for reliable power and signal transmission in demanding environments. With 6 circuits and a rugged black housing featuring a long shroud, this connector ensures secure connections in industrial applications. The key D and stone gray insert provide easy identification and error-free mating. Operating flawlessly in a wide temperature range from -40 to 125 °C, this connector is perfect for harsh conditions. Its wire-to-wire termination and locking feature guarantee stable connections, while its compact 4mm pitch saves valuable space. Trust the MXP120 for efficient and durable connectivity in your projects. ( 34900-6143)
Details
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 34900-6143 |
| Color: | Black |
| Series: | 34900 |
| Amperage: | 13 A |
| Connector Type: | MXP120 Sealed |
| Gender: | Receptacle |
| Number of Contacts: | 6 |
| Number of Rows: | 1 |
| Pitch: | 4 mm |
| Material: | SPS/Nylon |
| Keying: | Yes |
| Polarization: | D |
| Packaging: | Bag |
| Operating Temperature Range: | -40 - 125 °C |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Wire |
| Termination Pitch: | 4 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Product Name: | MXP120 Sealed |
| Part Aliases: | 0349006143 |
| SKU: | MOL34900-6143 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 05/02/2025 | 516742 - Retraction of 513492. This retraction is to annunce that this PCN “513492” did not take place and Molex continues with the same compounder. | Download |
