34900-6142

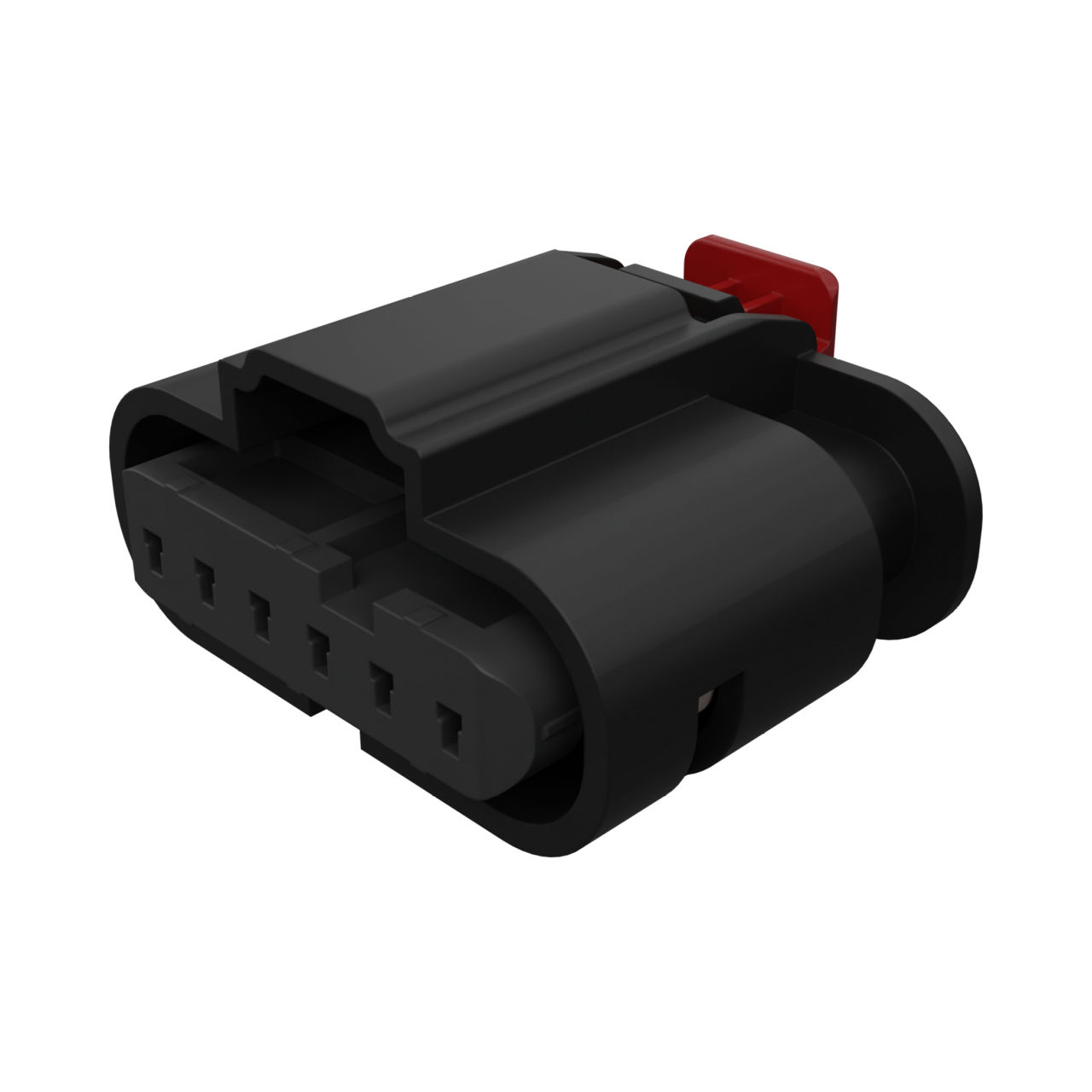

MXP120 Sealed Receptacle, 6 Circuit, Black Housing with Long Shroud (T3-V2-S3 with Backshell, T3-V2-S2 without Backshell), Key C, Dark Gray Insert
Part Aliases: Molex 0349006142
The MXP120 Sealed Receptacle, a high-performance connector designed for reliable power and signal transmission in demanding environments. With 6 circuits and a rugged black housing featuring a long shroud, this connector ensures secure and protected connections. The dark gray insert, along with keying and polarization features, guarantees proper alignment and mating. Operating efficiently in a wide temperature range from -40 to 125 °C, this connector is ideal for various industrial applications. Its wire-to-wire connector system and 4 mm pitch offer easy installation, while its durable SPS/Nylon construction and lock to mating part feature provide added security. RoHS non-compliant.
Details
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 34900-6142 |
| Color: | Black |
| Series: | 34900 |
| Amperage: | 13 A |
| Connector Type: | MXP120 Sealed |
| Gender: | Receptacle |
| Number of Contacts: | 6 |
| Number of Rows: | 1 |
| Pitch: | 4 mm |
| Material: | SPS/Nylon |
| Keying: | Yes |
| Polarization: | C |
| Packaging: | Bag |
| Operating Temperature Range: | -40 - 125 °C |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Wire |
| Termination Pitch: | 4 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Product Name: | MXP120 Sealed |
| Part Aliases: | 0349006142 |
| SKU: | MOL34900-6142 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 05/02/2025 | 516742 - Retraction of 513492. This retraction is to annunce that this PCN “513492” did not take place and Molex continues with the same compounder. | Download |
| 07/21/2023 | 513492 - Change Supplier. This letter is to inform you that in order to re-balance global supply chains, Molex will qualify a new compounder location to be used by the existing resin supplier. | Download |
