34899-6122

MOL34899-6122
Heilind Number:MOL34899-6122
Manufacturer:Molex
Manufacturer Number:34899-6122
Datasheet:Drawing
ECAD Model:
3D Model

Description:

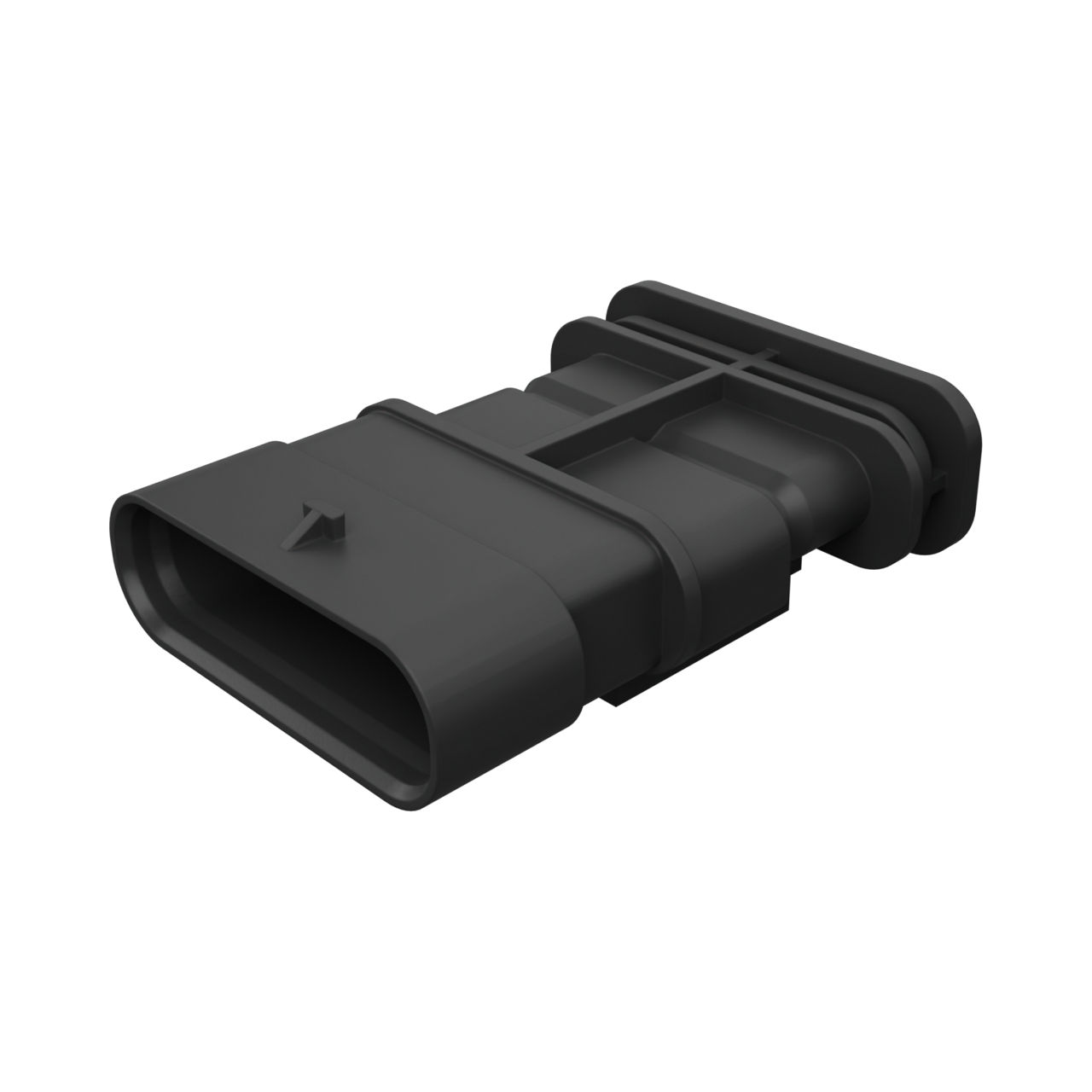

MXP120 Sealed Male Blade Connector with 11.00mm Clip-Slot, 6 Circuit, Dark Gray Housing (T3-V2-S3 with Backshell, T3-V2-S2 without Backshell), Backshell Interface Option 2, Key C

More >>

Specifications

AttributeValue
Product Category:
Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:Molex
Manufacturer Part Number:Molex 34899-6122
Color:Gray (Dark)
Series:34899 - MXP120 Sealed
Amperage:13 A
Connector Type:MXP120 Sealed
Gender:Plug
Number of Contacts:6
Number of Rows:1
Pitch:4 mm
Material:SPS/Nylon
Keying:Yes
Polarization:C
Packaging:Bag
Circuit Application:Body Electronics, Sealed
Polarized to Mate:Yes
Connector System:Wire to Wire
Mates With:MXP120 Female Receptacle Link:34900
Termination Pitch:4 mm
Glow Wire Capable:No
Lock to Mating Part:Yes
Product Name:MXP120 Sealed
Part Aliases:0348996122
SKU:MOL34899-6122

Detailed Description

Introducing the MXP120 Sealed Male Blade Connector, a versatile and reliable solution for your wiring needs. This connector features a 6-circuit design with a dark gray housing, suitable for a variety of applications in Body Electronics and other sealed environments. With a rating of 13 A, it ensures efficient power delivery, while the SPS/Nylon construction guarantees durability. The connector is polarized with Key C for easy and secure mating, and is RoHS compliant for environmentally friendly usage. Whether you're in need of a high-performance connector for automotive, industrial, or other applications, the MXP120 is the perfect choice.
