| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 34899-6120 |
| Color: | Black |
| Series: | 34899 - MXP120 Sealed |
| Amperage: | 13 A |
| Connector Type: | MXP120 Sealed |
| Gender: | Plug |
| Number of Contacts: | 6 |
| Number of Rows: | 1 |
| Pitch: | 4 mm |
| Material: | SPS/Nylon |
| Keying: | Yes |
| Polarization: | A |
| Packaging: | Bag |
| Circuit Application: | Body Electronics, Sealed |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Wire |
| Mates With: | MXP120 Female Receptacle Link:34900 |
| Termination Pitch: | 4 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Product Name: | MXP120 Sealed |
| Part Aliases: | 0348996120 |
| SKU: | MOL34899-6120 |
34899-6120
| Heilind Number: | MOL34899-6120 |
| Manufacturer: | Molex |
| Manufacturer Number: | 34899-6120 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:

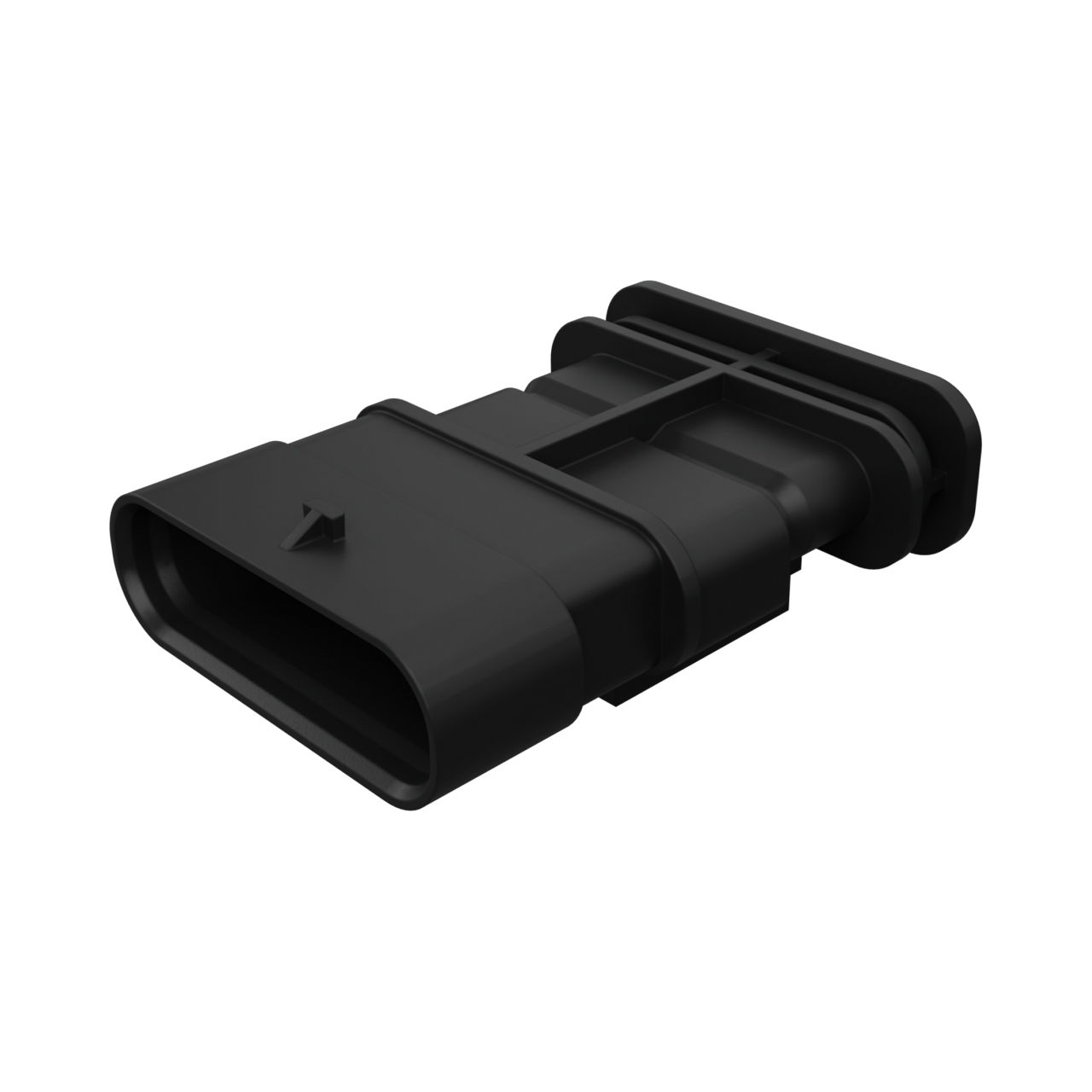

MXP120 Sealed Male Blade Connector with 11.00mm Clip-Slot, 6 Circuit, Black Housing (T3-V2-S3 with Backshell, T3-V2-S2 without Backshell), Backshell Interface Option 2, Key A
More >>Specifications
Detailed Description
The MXP120 Sealed Male Blade Connector is a reliable and high-performance solution for your automotive or industrial connectivity needs. Featuring a 6-circuit design and a durable black housing, this connector is perfect for use in harsh environments. With a current rating of 13 A, it ensures efficient power delivery. The 11.00mm clip-slot allows for secure and easy installation, while the backshell interface option 2 adds an extra layer of protection. With keying and polarization features, you can be confident in the proper mating alignment. RoHS compliant and with a termination pitch of 4 mm, this connector is not only environmentally friendly but also easy to integrate into your design. Trust the MXP120 for seamless wire-to-wire connections in your application.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 05/02/2025 | 516742 - Retraction of 513492. This retraction is to annunce that this PCN “513492” did not take place and Molex continues with the same compounder. | Download | |||
| 07/21/2023 | 513492 - Change Supplier. This letter is to inform you that in order to re-balance global supply chains, Molex will qualify a new compounder location to be used by the existing resin supplier. | Download | |||
| 04/20/2021 | 509657 - Manufacturing Process Change. in order to better improve manufacturing capabilities, GM1.2 1X2 and 1X6 bld will be converted to automatic assembly and detection this change will not have any impact to fit form or function. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 34899-6120 |
| Other Names: | 0348996120 |
