34899-6091

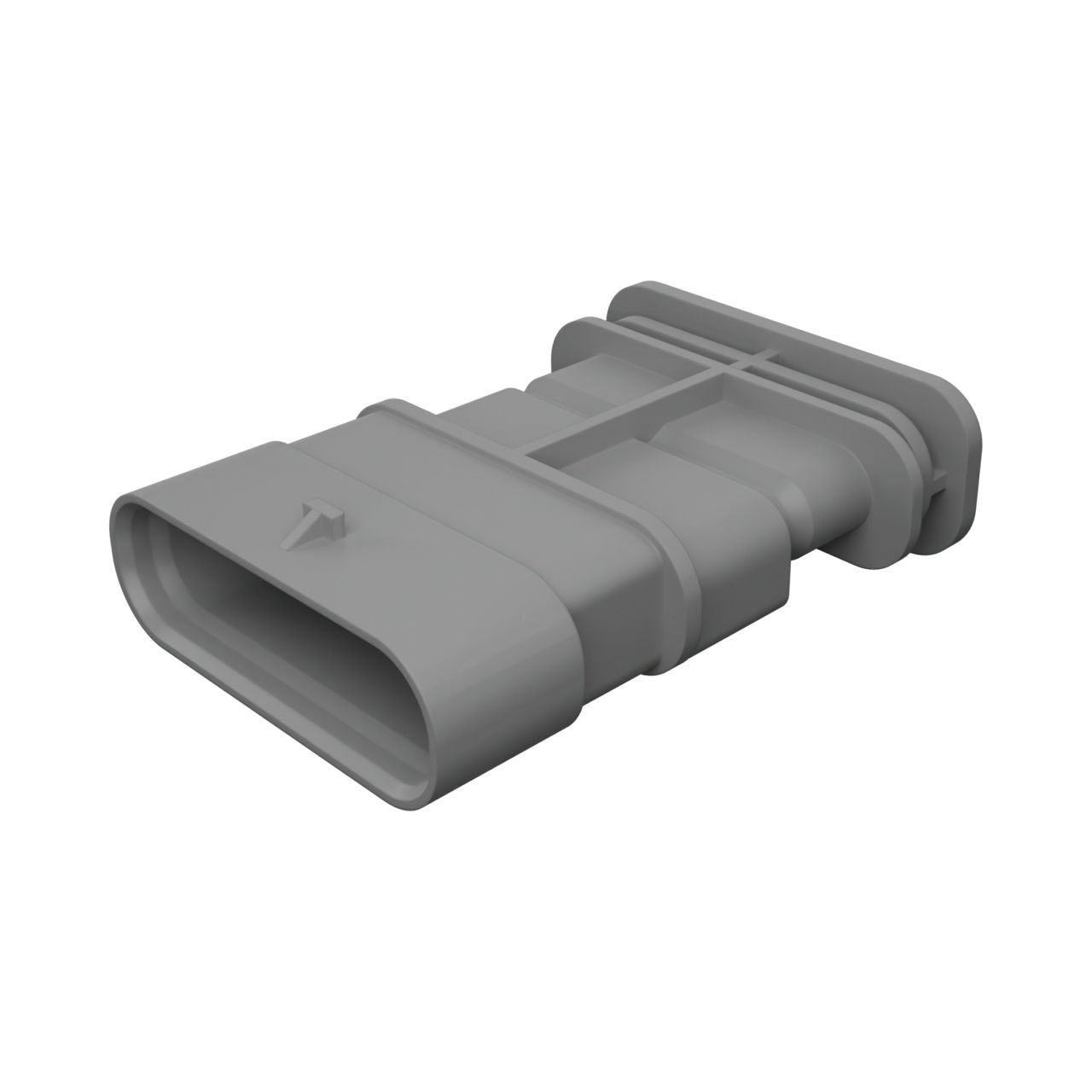

MXP120 Sealed Male Blade Connector with 7.00mm Clip-Slot, 6 Circuit, Light Gray Housing (T3-V2-S3 with Backshell, T3-V2-S2 without Backshell), Backshell Interface Option 2, Key B
Part Aliases: Molex 0348996091
The MXP120 Sealed Male Blade Connector with 7.00mm Clip-Slot, a versatile and reliable solution for your automotive and industrial connectivity needs. This connector features a durable Light Gray Housing (T3-V2-S3 with Backshell, T3-V2-S2 without Backshell) and offers 6 circuits for enhanced functionality. With a current rating of 13 A, it ensures efficient power transmission. The SPS/Nylon construction and backshell interface option 2 guarantee robust performance, even in harsh environments. Engineered for seamless integration, this connector is polarized with key B and is compatible with MXP120 Female Receptacle Link:34900. RoHS compliant and featuring a termination pitch of 4 mm, it is the perfect choice for your high-reliability applications. Trust the MXP120 for secure and efficient wire-to-wire connections in your systems.
Details
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 34899-6091 |
| Color: | Gray (Light) |
| Series: | 34899 - MXP120 Sealed |
| Amperage: | 13 A |
| Connector Type: | MXP120 Sealed |
| Gender: | Plug |
| Number of Contacts: | 6 |
| Number of Rows: | 1 |
| Pitch: | 4 mm |
| Material: | SPS/Nylon |
| Keying: | Yes |
| Polarization: | B |
| Packaging: | Bag |
| Circuit Application: | Body Electronics, Sealed |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Wire |
| Mates With: | MXP120 Female Receptacle Link:34900 |
| Termination Pitch: | 4 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Product Name: | MXP120 Sealed |
| Part Aliases: | 0348996091 |
| SKU: | MOL34899-6091 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
