| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 34899-4084 |
| Color: | Gray (Dark) |
| Series: | 34899 - MXP120 Sealed |
| Amperage: | 13 A |
| Connector Type: | MXP120 Sealed |
| Gender: | Plug |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Pitch: | 4 mm |
| Material: | SPS/Nylon |
| Keying: | Yes |
| Polarization: | E |
| Packaging: | Bag |
| Circuit Application: | Body Electronics, Power Train, Sealed |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Wire |
| Mates With: | MXP120 Female Receptacle Link:34900 |
| Termination Pitch: | 4 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Product Name: | MXP120 Sealed |
| Part Aliases: | 0348994084 |
| SKU: | MOL34899-4084 |
34899-4084
| Heilind Number: | MOL34899-4084 |
| Manufacturer: | Molex |
| Manufacturer Number: | 34899-4084 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:

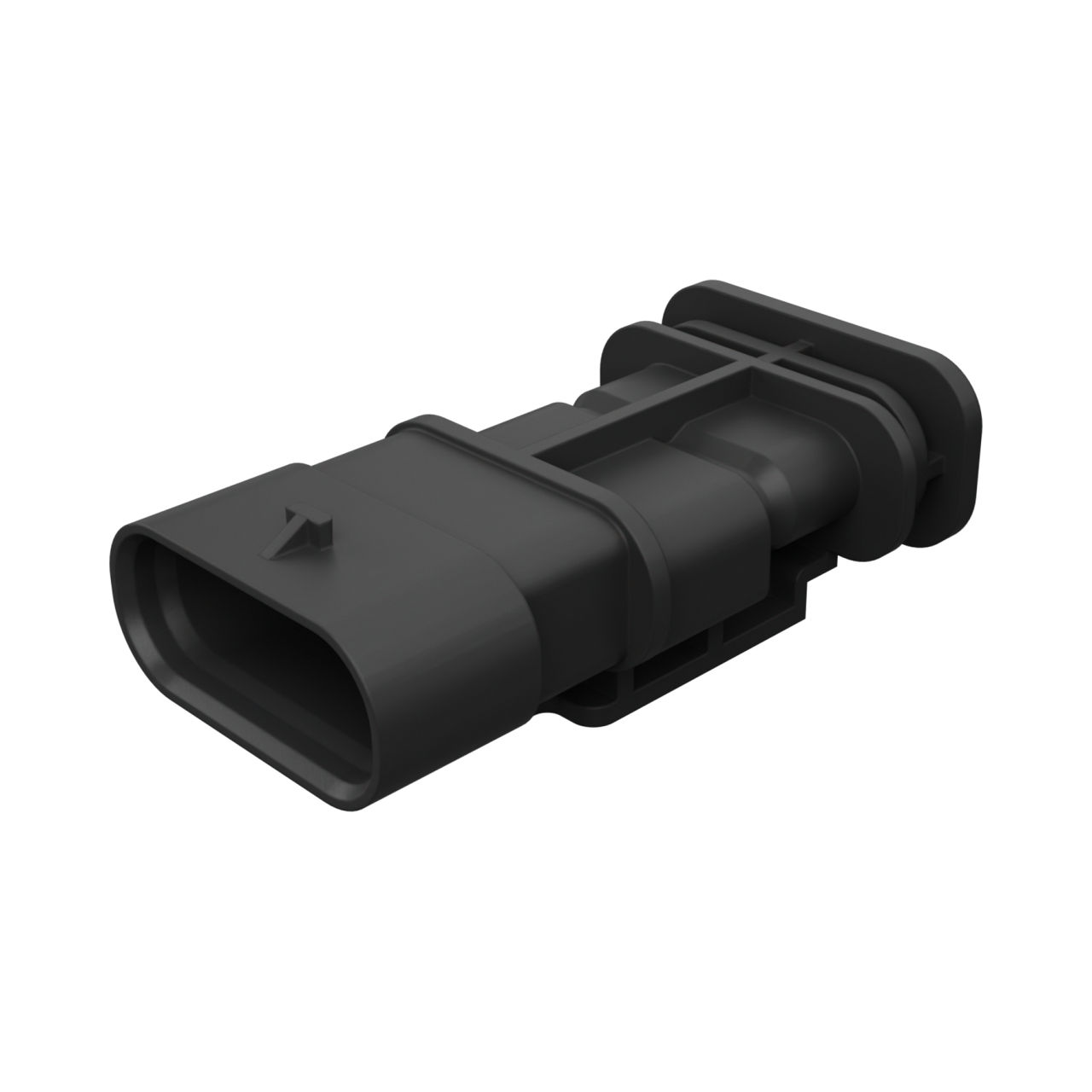

MXP120 Sealed Male Blade Connector with 7.00mm Clip-Slot, 4 Circuit, Dark Gray Housing (T3-V2-S3 / T4-V4-S3 with Backshell, T3-V2-S2 /T4-V4-S2 without Backshell), Backshell Interface Option 2, Key E
More >>Specifications
Detailed Description
Introducing the MXP120 Sealed Male Blade Connector, a high-performance solution for your automotive and industrial connectivity needs. Featuring a durable dark gray housing with a 7.00mm clip-slot, this connector is designed for secure and reliable power transmission in harsh environments. With 4 circuits and a current rating of 13A, it is ideal for use in body electronics, powertrain, and sealed circuit applications. The SPS/Nylon construction and backshell interface option 2 ensure robust protection against moisture and debris, while the keying and polarization features guarantee proper mating alignment. Packaged in a convenient bag, the MXP120 is RoHS compliant and guaranteed to meet your stringent quality standards. Upgrade your connectivity system with the MXP120 Sealed Male Blade Connector.
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 34899-4084 |
| Other Names: | 0348994084 |
