34899-3111

Heilind Number:	MOL34899-3111
Manufacturer:	Molex
Manufacturer Number:	34899-3111
Datasheet:	RoHS Certificate of Compliance
ECAD Model:

Description:

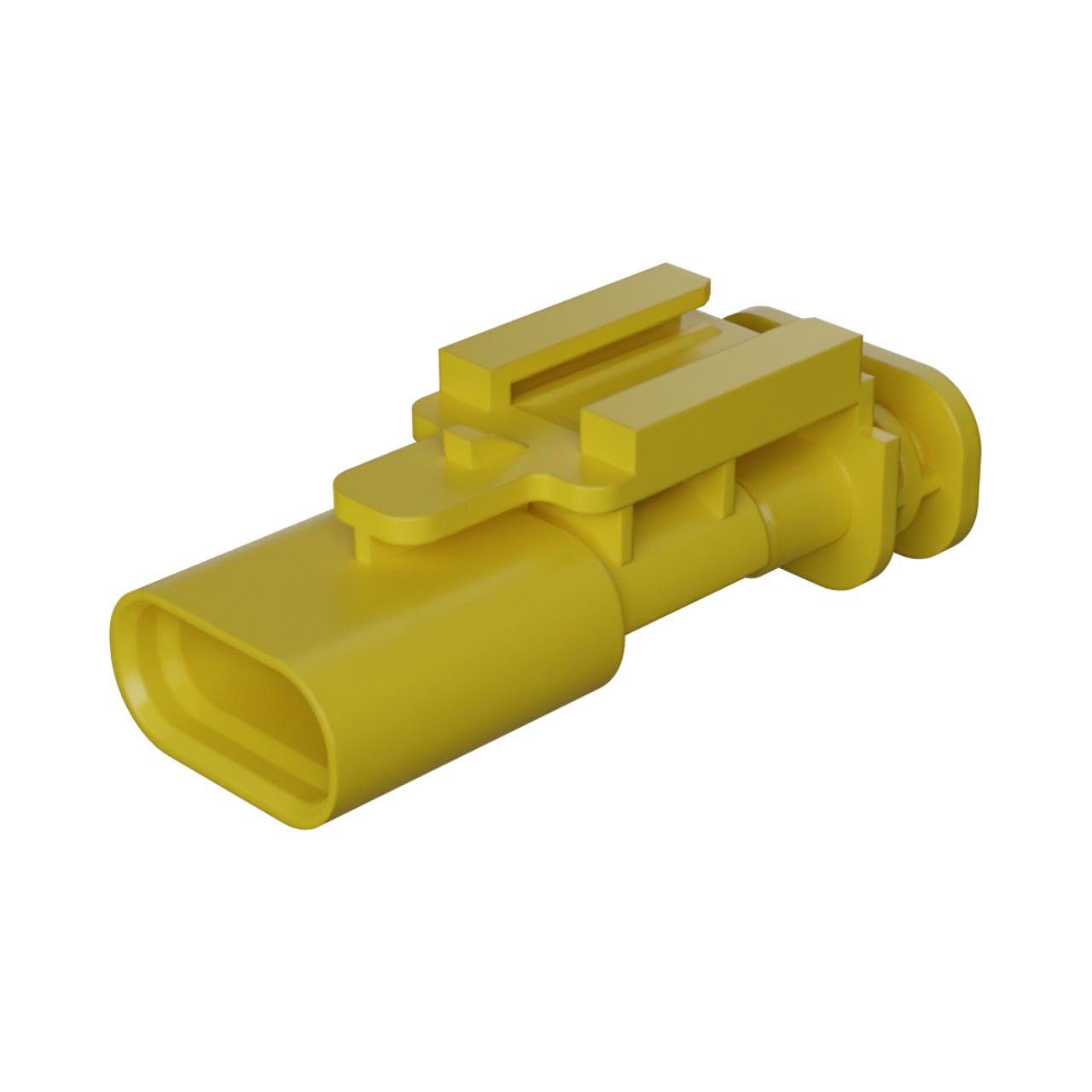

MXP120 Sealed Male Blade Connector with 11.00mm Clip-Slot, 3 Circuit, Yellow SIR Housing (T3-V2-S2 - 125Â°C on-engine vibration), Wire Dress Cover Interface Option 2, Key B

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 34899-3111
Color:	Yellow
Series:	34899 - MXP120 Sealed
Amperage:	13 A
Connector Type:	MXP120 Sealed
Gender:	Plug
Number of Contacts:	3
Number of Rows:	1
Pitch:	4 mm
Material:	SPS/Nylon
Keying:	Yes
Polarization:	B
Packaging:	Bag
Operating Temperature Range:	-40 - 125 °C
Polarized to Mate:	Yes
Connector System:	Wire to Wire
Termination Pitch:	4 mm
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Product Name:	MXP120 Sealed
Part Aliases:	0348993111
SKU:	MOL34899-3111

Detailed Description

Introducing the MXP120 Sealed Male Blade Connector, a high-performance solution for your connectivity needs. This connector features a durable SPS/Nylon construction and is rated for temperatures ranging from -40 to 125°C, making it ideal for a wide range of applications. With a 3-circuit design and a current rating of 13A, it offers reliable power delivery. The yellow housing is not only visually striking but also offers enhanced visibility in crowded electronic setups. Featuring a wire dress cover interface option 2 and key B polarization, this connector ensures easy and secure installation. RoHS compliant and with a lock to mating part feature, it guarantees both environmental responsibility and reliable performance. Upgrade your connectivity with the MXP120 Sealed Male Blade Connector.
