| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 34792-0040 |
| Color: | Black |
| Series: | 34792 - Mini50 |
| Amperage: | 4 A |
| Connector Type: | Mini50 |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 2 mm |
| Voltage: | 500 V DC |
| Material: | Polyester Alloy |
| Orientation: | Vertical |
| Keying: | Yes |
| Tail Length: | 2.9 mm |
| Packaging: | Tray |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Signal |
| Contact Mating Area Plating: | Tin over Nickel |
| Number of Contacts Loaded: | 4 |
| PCB Locator: | Yes |
| Polarized to PCB: | Yes |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin over Nickel |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Breakaway: | No |
| Make First / Break Last: | No |
| Product Name: | Mini50 |
| Part Aliases: | 0347920040 |
| SKU: | MOL34792-0040 |
34792-0040
| Heilind Number: | MOL34792-0040 |
| Manufacturer: | Molex |
| Manufacturer Number: | 34792-0040 |
| Datasheet: | Product Literature |
| ECAD Model: | |
Description:
Mini50 Unsealed Vertical Header, Single Row, 4 Circuit, Polarization Option A, Black, Tray
More >>Specifications
Detailed Description
Introducing the 34792-0040 Mini50 Unsealed Vertical Header, a high-performance connectivity solution for your PCB applications. This single-row header features four circuits with Polarization Option A for secure mating. Crafted from durable black Polyester Alloy with brass contacts, it offers reliable signal transmission in a straight body orientation. With a 2mm pitch and a maximum voltage of 500V DC, it meets the demands of various electronic projects. Designed for through-hole termination, it ensures easy installation on your PCB. RoHS compliant and operating temperature range of -40 to 105°C, this header guarantees both safety and performance. Perfect for wire-to-board connections, it comes with a tray packaging for convenience. Upgrade your PCB design with the 34792-0040 Mini50 header for efficient and secure connectivity.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105309-1106 | Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Single Row, 6 Circuits, with Kinked Pins, Tin (Sn) Plating, Black |  |

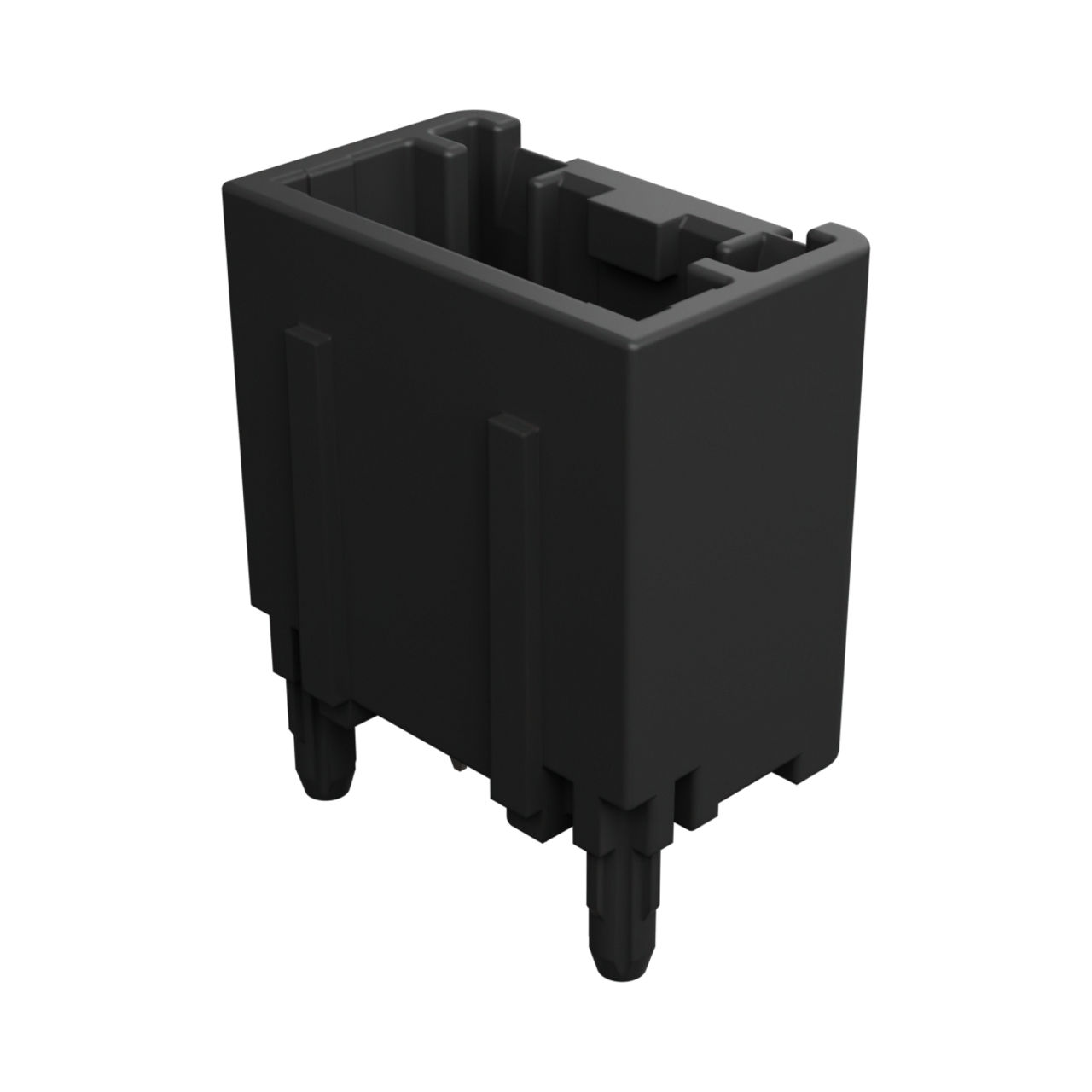

 | Molex 34792-0042 | Mini50 Unsealed Vertical Header, Single Row, 4 Circuit, Polarization Option C, Dark Gray, Tray | |
 | Molex 34792-0082 | MINI50 VHDR 8CKT DKGY POL C TR SNGL RW VERT HDR | |

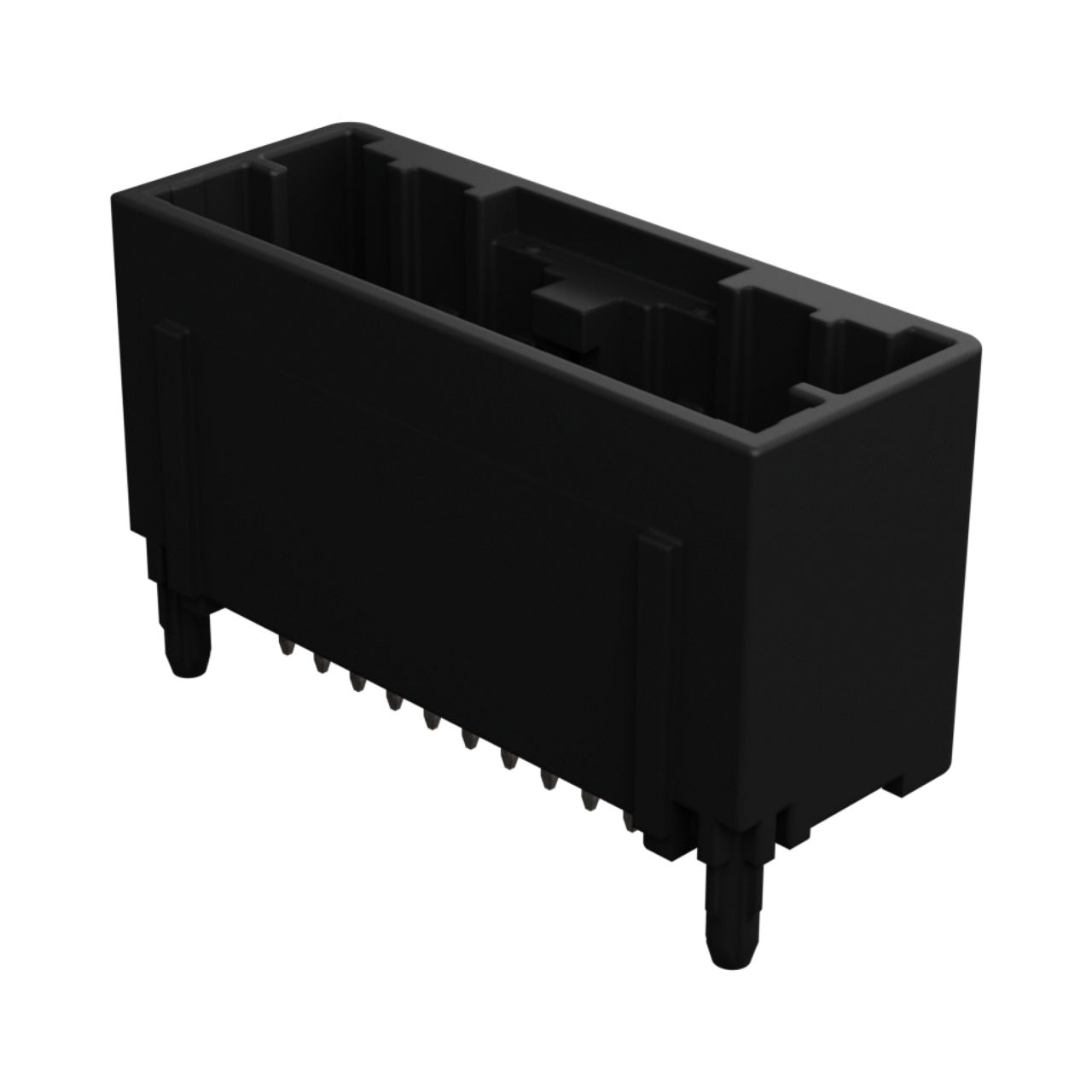

 | Molex 34825-0200 | Mini50 Unsealed Vertical Header, Dual Row, 20 Circuit, Polarization Option A, Black, Tray | |
