| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 34083-3001 |
| Series: | 34083 - MX150 |
| Connector Type: | MX150 |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Performance Alloy (HPA) |
| Contact Plating: | Tin |
| Voltage: | 14 V DC |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .508 µm |
| Contact Termination Plating Thickness: | .508 µm |
| Wire Size: | 14 AWG, 16 AWG, 1.5 mm² |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 2.7 mm |
| Part Aliases: | 0340833001 |
| SKU: | MOL34083-3001 |
34083-3001
Specifications
Detailed Description

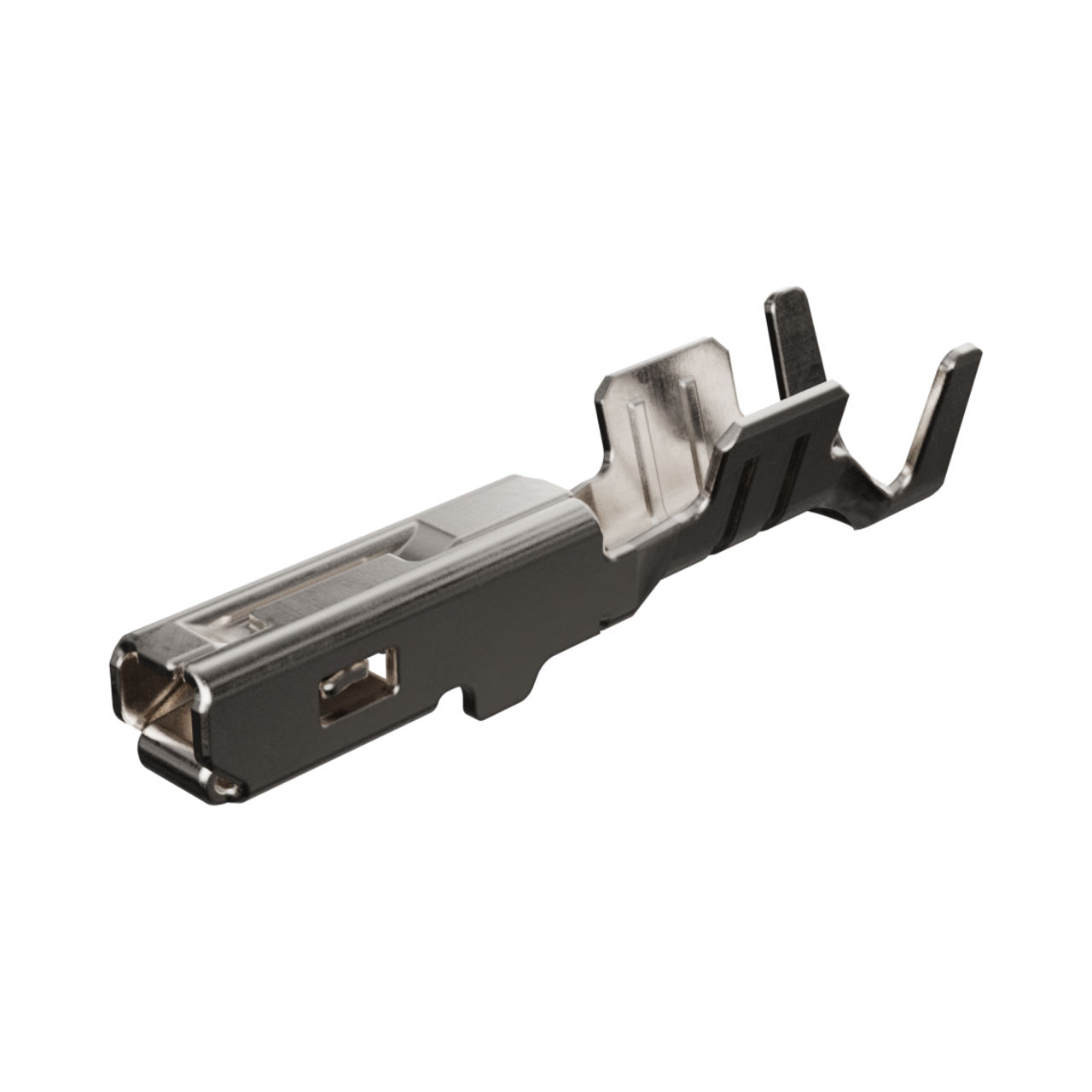

Introducing the MX150 Female Cable Seal Terminal, a reliable solution for power applications in the automotive industry. With a durable tin plating and constructed from high-performance alloy (HPA), this terminal ensures optimal conductivity and longevity, even in harsh operating conditions. Suitable for 14V DC systems, it accommodates 14-16 AWG wire sizes with ease. The crimp or compression termination method offers secure and efficient installation, while the left reel payoff design streamlines assembly processes. ROHS compliant and with a thin tin plating for enhanced performance, the MX150 is a top choice for wire-to-wire and wire-to-board connections in automotive applications. Available for immediate shipping, this product is a must-have for any project requiring high-quality connectors.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 33012-3002 | MX150 Female Terminal Sealed, Tin Plating, 18 and 20 AWG, Left Reel Payoff |  |
 | Molex 34083-3002 | MX150 Female Cable Seal Terminal, Tin Plating, 18 and 20 AWG, Left Reel Payoff | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 01/31/2026 | 517048 - Equipment/ Production Transfer. manufacturing location transfer that have been used to impacted parts. No changes will be made to product as part of this change. | Download | |||
| 01/20/2017 | 501095 - Supplier Change. This letter is to inform you that Molex is adding a new supplier or the supplier is making a change affecting the part(s) identified in this notice. There will be no negative impact to product performance as a result of this change. | Download | |||
| 12/12/2016 | 501042 - Capacity change or tool replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling. | Download | |||
| 06/05/2015 | GCM 10678251 - New, Modified, Or Replacement Tooling. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 34083-3001 |
| Other Names: | 0340833001 |
