| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 34081-3004 |
| Series: | 34081 - MX150 |
| Connector Type: | MX150 |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Performance Alloy (HPA) |
| Contact Plating: | Gold |
| Voltage: | 14 V DC |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 18 AWG, 20 AWG, .75 - 1 mm² |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 2.54 mm |
| Part Aliases: | 0340813004 |
| SKU: | MOL34081-3004 |
34081-3004
| Heilind Number: | MOL34081-3004 |
| Manufacturer: | Molex |
| Manufacturer Number: | 34081-3004 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Specifications
Detailed Description

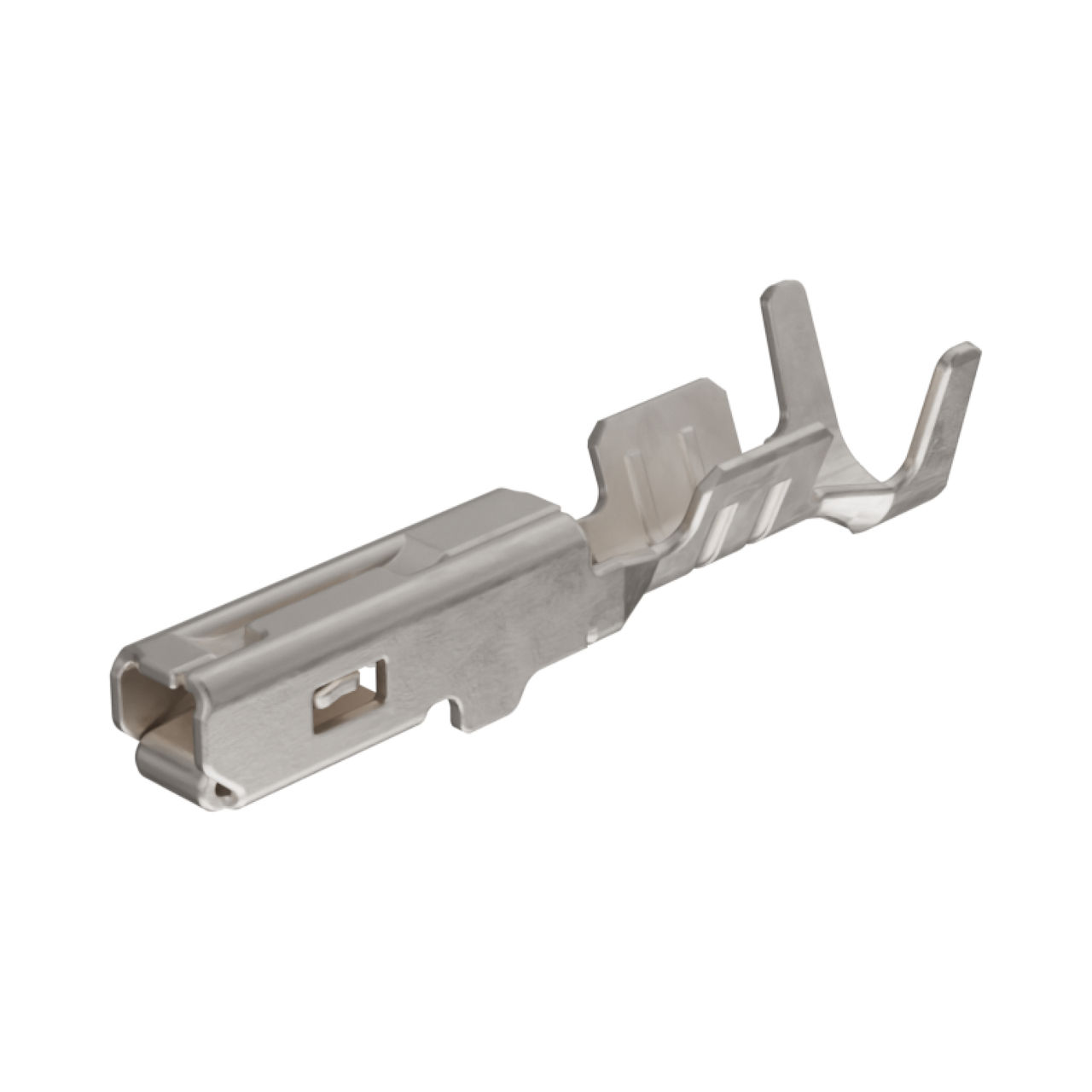

Introducing the MX150 Female Cable Seal Terminal, a high-performance connectivity solution for automotive applications. This terminal, with gold plating, is designed for 18 and 20 AWG wires, providing reliable power transmission with a voltage rating of 14 V DC. Its left reel payoff design ensures efficient assembly processes. Crafted from High Performance Alloy (HPA) with gold contact plating, this terminal guarantees superior conductivity and corrosion resistance. With a wire insulation diameter of 2.54 mm, it accommodates securely insulated connections. RoHS compliant and suitable for wire-to-wire or wire-to-board configurations, the MX150 terminal is a dependable choice for demanding automotive environments.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 09/16/2021 | 510314 - Change Supplier. molex has been approved by all customer for qualified additional sourcces for C19025 raw material for MC150 terminals and has been using these addition sources for several year we are now expanding the use of these additional sources across a broader range of MX150 PN to include the cable seal terminals and Au/Ag terminals. In addition we are qualifying additional mills to produce within our supply base to allow a better flow of raw material. | Download | |||
| 08/01/2020 | 508485 - Warehouse transfer. moving from Lincoln (duns# 967495487) to Bolingbrook (Duns# 103340709) | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 34081-3004 |
| Other Names: | 0340813004 |
