34081-2004

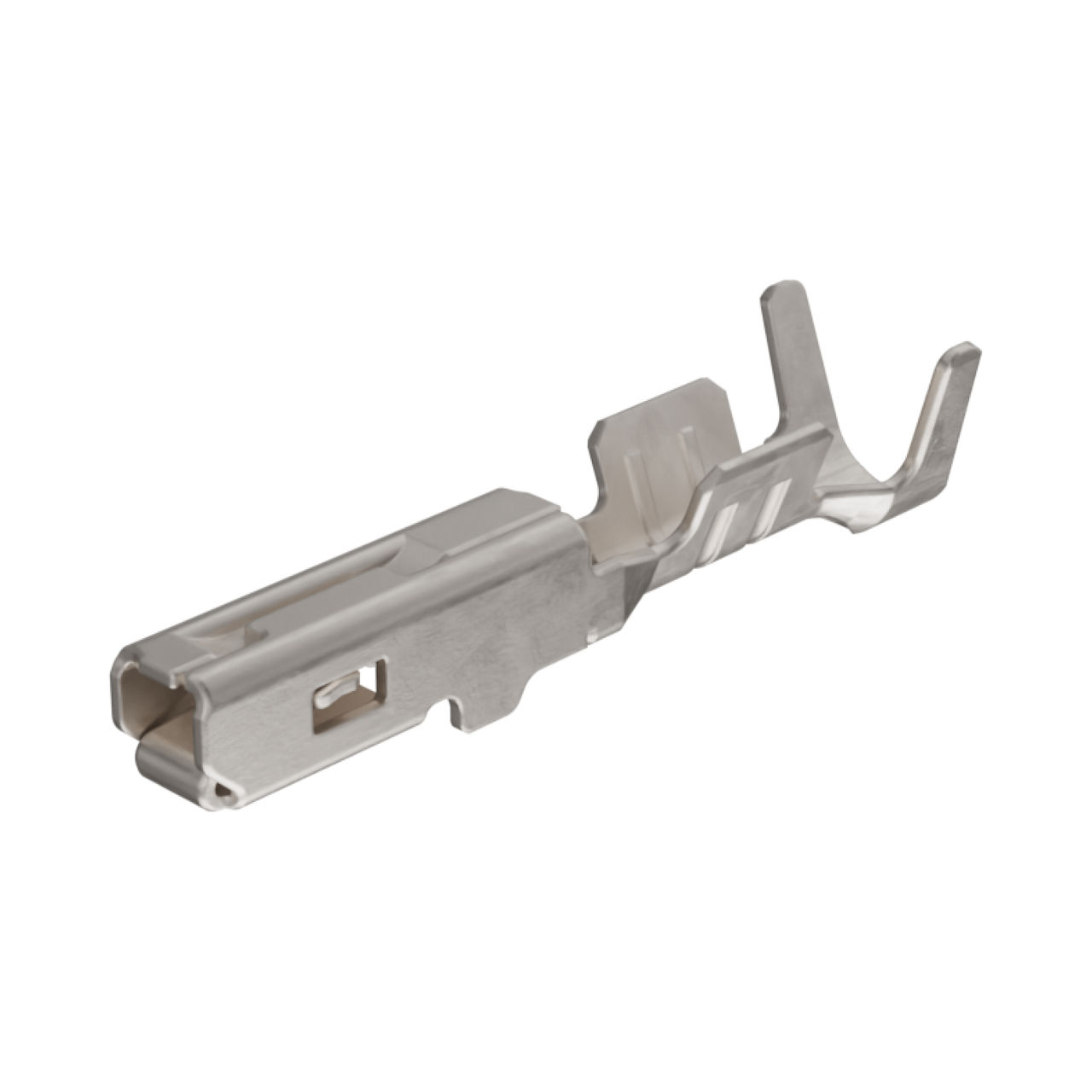

MX150 Female Cable Seal Terminal, Gold Plating, 18 and 20 AWG, Right Reel Payoff
Part Aliases: Molex 0340812004
The MX150 Female Cable Seal Terminal, a high-performance connectivity solution for automotive applications. This terminal, featuring durable gold plating, is designed for 18 and 20 AWG wires, ensuring a secure and reliable connection. With a convenient right reel payoff design, it streamlines installation processes. The versatile MX150 series connector type accommodates both wire-to-wire and wire-to-board connections, offering flexibility in usage. Crafted with a High-Performance Alloy (HPA) contact material and gold plating, it guarantees excellent conductivity and corrosion resistance. Rated for 14 V DC, this terminal is ideal for power circuit applications. With RoHS compliance and tin termination plating, it meets international standards for environmental sustainability. Upgrade your automotive connectivity with the MX150 Female Cable Seal Terminal.
Details
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 34081-2004 |
| Series: | 34081 - MX150 |
| Connector Type: | MX150 |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Performance Alloy (HPA) |
| Contact Plating: | Gold |
| Voltage: | 14 V DC |
| Packaging: | Reel |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 18 AWG, 20 AWG, .75 - 1 mm² |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 2.54 mm |
| Product Name: | MX150 |
| Part Aliases: | 0340812004 |
| SKU: | MOL34081-2004 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
