33482-2154

ICC Number:	MOL33482-2154
Manufacturer:	Molex
Manufacturer Number:	33482-2154
Datasheet:	Datasheet
ECAD Model:

Description:

MX150 Mat-Sealed Male Connector Assembly, Dual Row, 20 Circuits, Keying Option C, without Connector Position Assurance, Dark Gray

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 33482-2154
Color:	Gray (Dark)
Series:	33482 - MX150
Connector Type:	MX150
Gender:	Plug
Number of Contacts:	20
Number of Rows:	2
Pitch:	3.5 mm
Material:	Modified Polystyrene Alloy
Keying:	Yes
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Wire
Mates With:	Link:33472 Female Dual Row Sealed Connector
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Part Aliases:	0334822154
SKU:	MOL33482-2154

Detailed Description

Introducing the MX150 Sealed Male Connector, a high-performance solution for power circuit applications. With 20 circuits arranged in a dual row configuration and featuring Polarization C for secure mating, this connector ensures reliable connectivity in demanding environments. Crafted from durable Modified Polystyrene Alloy in a sleek Dark Gray finish, it offers both robustness and aesthetics. Designed for wire-to-wire connection, it mates seamlessly with the 33472 Female Dual Row Sealed Connector. RoHS compliant and featuring a lock to the mating part, this connector guarantees both environmental responsibility and secure assembly. With its superior quality and performance, the MX150 is the perfect choice for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock

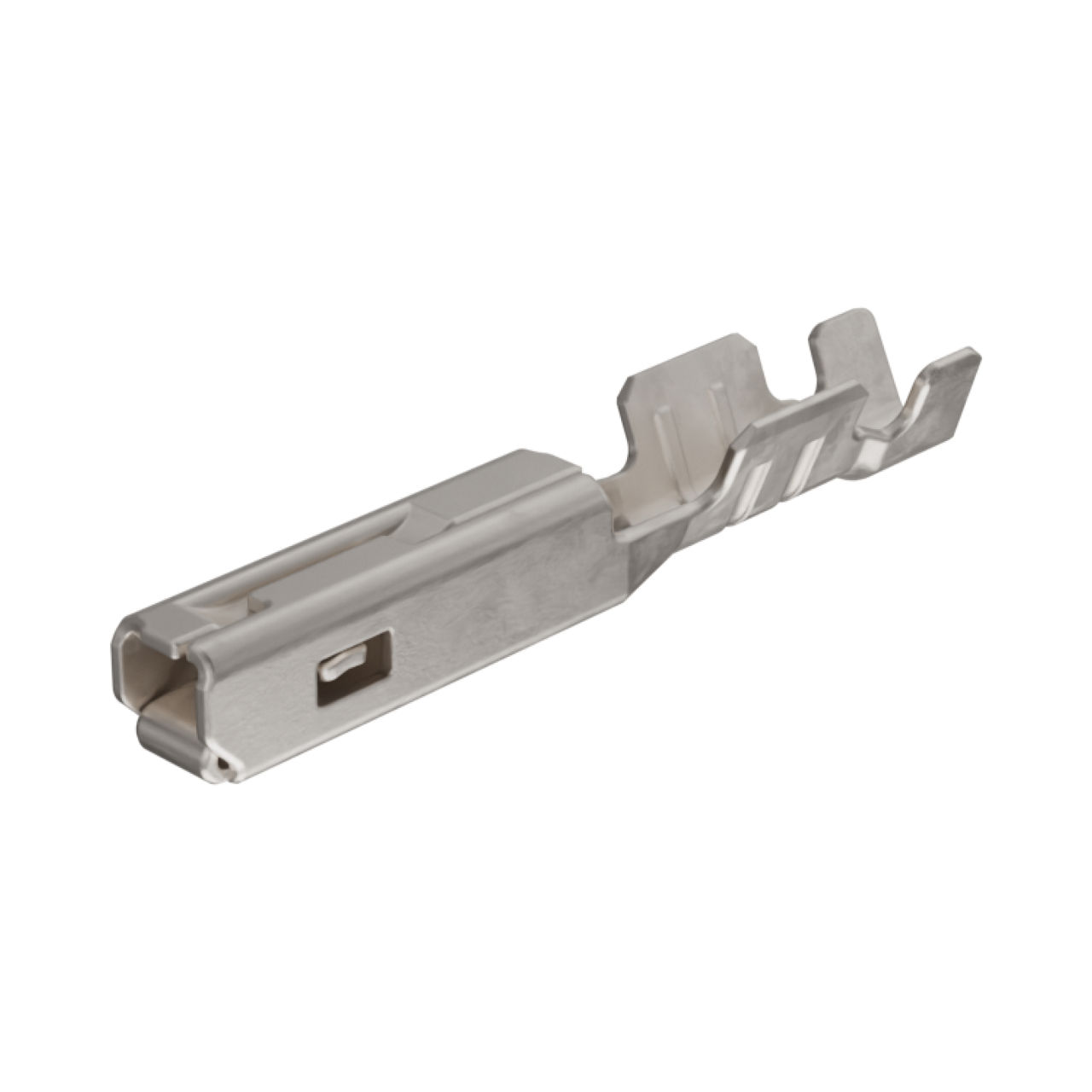

	Molex 33001-2004	MX150 Female Terminal for Mat-Sealed Connectors, Gold Plating, 20-18 AWG, Right Reel Payoff

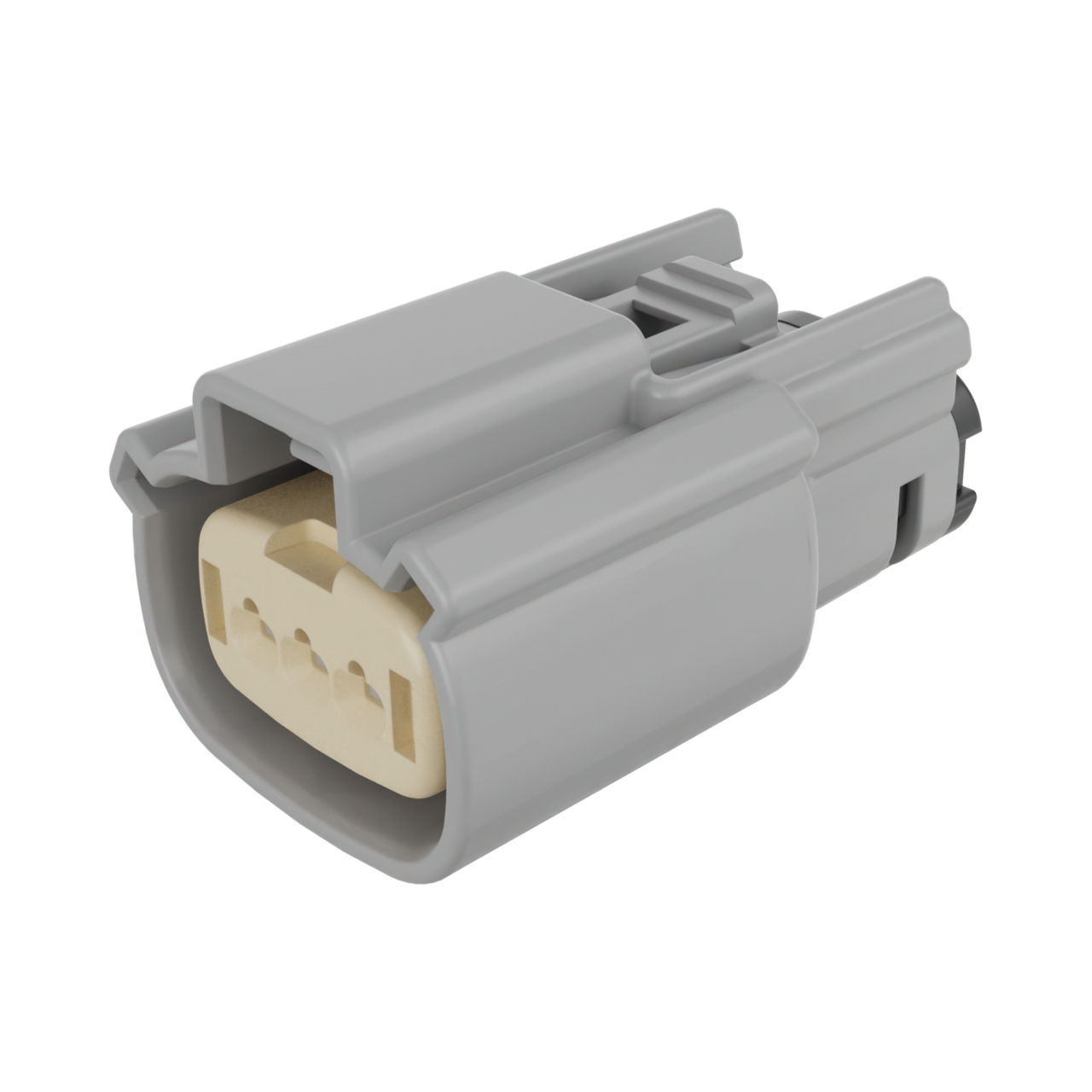

	Molex 33471-3302	MX150 Mat-Sealed Female Connector Assembly, Single Row, 3 Circuits, Keying Option B, Light Gray
	Molex 39-00-0081	Mini-Fit Male Crimp Terminal, Tin (Sn) over Copper Plated Brass, Double 22+20, 22+18, 20+20 or Single 16 AWG, Reel

Product Change Notice

Effective Date	Description of Change	Download
05/02/2025	516742 - Retraction of 513492. This retraction is to annunce that this PCN “513492” did not take place and Molex continues with the same compounder.	Download
05/15/2024	514415 - Equipment Transfer, Production Transfer or Rearrangement. This notification is to inform you of molds and Assy line transfer that have been issued to manufacture the affected part(s). This PCN is due to where the demand is located and desire to local to local supply. The molds and Assy line have been moved to another location/site/facility from Chengdu to Guad 2. We are starting these transfers in later Q2 2024. No product changes will be made as part of this change.	Download
07/21/2023	513492 - Change Supplier. This letter is to inform you that in order to re-balance global supply chains, Molex will qualify a new compounder location to be used by the existing resin supplier.	Download
10/21/2022	512766 - Retraction of PCN 512372 Equipment Transfer. this PCN is a partial retraction to previous PCN 512372 communicated July 22, 2022. "production transfer to guadalajara 2 reason for partial retraction is that the attached part numbers will remain in current MFG location	Download
10/07/2022	512372 - Equipment Transfer, Production Transfer or Rearrangement. This notification is to inform you about an equipment transfer that has been used to manufacture impacted part(s). Equipment has been moved to different site/ location/ premises. No changes will be made to product part, fit nor function as part of this change.	Download
01/30/2016	GCM 10736272 - New, Modified, Or Replacement Tooling. The purpose of this letter is to inform you that Molex Chengdu will copy a new assembly line for MX150 Mat Seal Dual Row Blade Connectors,this change is to add the capacity for the increased demand. This is strictly capacity tooling will no design change.	Download
