33472-0602

Heilind Number:	MOL33472-0602
Manufacturer:	Molex
Manufacturer Number:	33472-0602
Datasheet:	Drawing
ECAD Model:

Description:

MX150 Sealed Female Connector, Dual Row, 6 Circuits, Polarization B, without Connector Position Assurance, Light Gray

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 33472-0602
Color:	Gray (Light), Natural
Series:	33472 - MX150
Connector Type:	MX150
Gender:	Receptacle
Number of Contacts:	6
Number of Rows:	2
Pitch:	3.5 mm
Material:	Modified Polystyrene Alloy
Keying:	Yes
Polarization:	B
Operating Temperature Range:	-40 - 125 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board, Wire to Wire
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Part Aliases:	0334720602
SKU:	MOL33472-0602

Detailed Description

Introducing the 33472-0602, a high-performance MX150 Sealed Female Connector designed for robust power applications. This dual-row connector features 6 circuits, with Polarization B for secure mating. Crafted from a durable Modified Polystyrene Alloy, it operates flawlessly in extreme temperatures ranging from -40 to 125 °C. Engineered for reliability, it does not have Connector Position Assurance but includes a lock to the mating part for added security. With its compact 3.5mm pitch and light gray housing, this connector is not only RoHS compliant but also versatile, suitable for both Wire to Wire and Wire to Board connections. Trust the MX150 for your connectivity needs, whether in industrial or automotive environments.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 19003-0001	InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?), Box, Tab 6.35 x 0.81mm

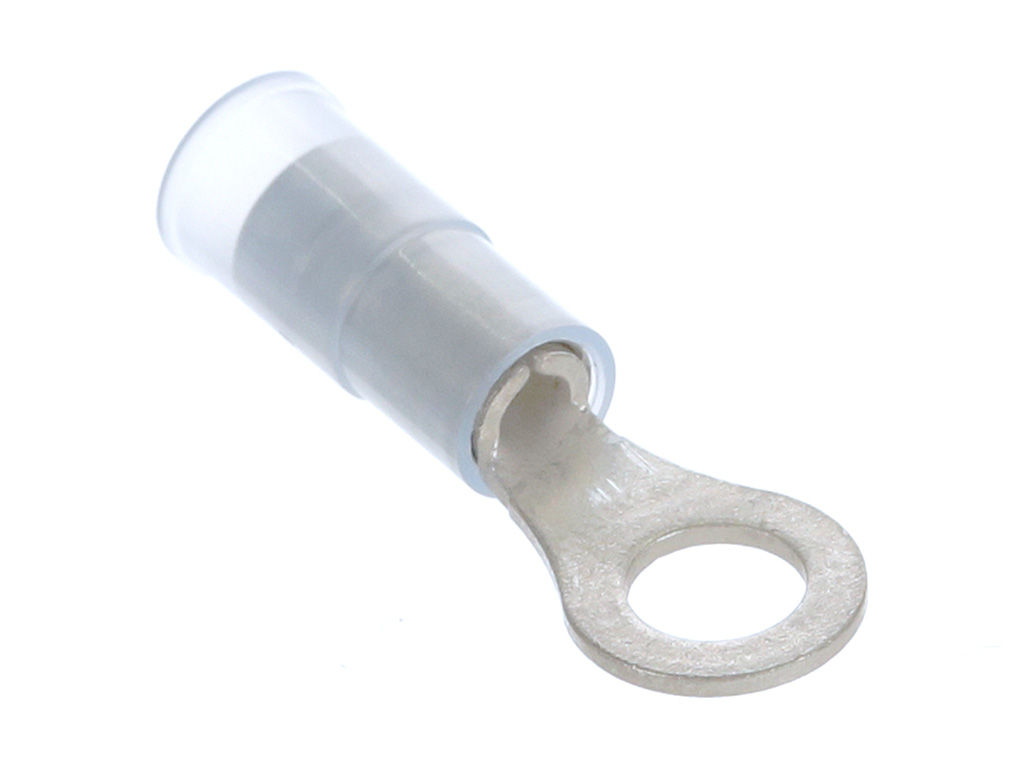

	Molex 19057-0102	RING AVIKRIMP (B-539-10)
	Molex 19073-0083	Avikrimp Ring Tongue Terminal for 14 to 16 AWG Wire, Stud Size 6 (M3.5), Length 22.48mm
	Molex 19418-0014	MX150L 10 Circuit Receptacle for 18-22 AWG Wire, with CPA, Black
	Molex 19419-0015	MX150L 10 Circuit Plug for 18-22 AWG Wire
	Molex 19433-0013	MX150L 2 Circuit Plug for 10-12 AWG Wire
	Molex 33472-0601	MX150 Sealed Female Connector, Dual Row, 6 Circuits, Polarization A, without Connector Position Assurance, Black
	Molex 33472-1606	MX150 Sealed Female Connector, Dual Row, 16 Circuits, Polarization A, with Connector Position Assurance, Black
	Molex 33472-2002	MX150 Sealed Female Connector, Dual Row, 20 Circuits, Polarization B, without Connector Position Assurance, Light Gray
	Molex 33482-3602	MX150 Sealed Male Connector, Dual Row, 6 Circuits, Polarization B, without Connector Position Assurance, Light Gray
	Molex 34950-0610	MX150 Backshell, Blade Sealed Assembly, 6 Circuit with Rib

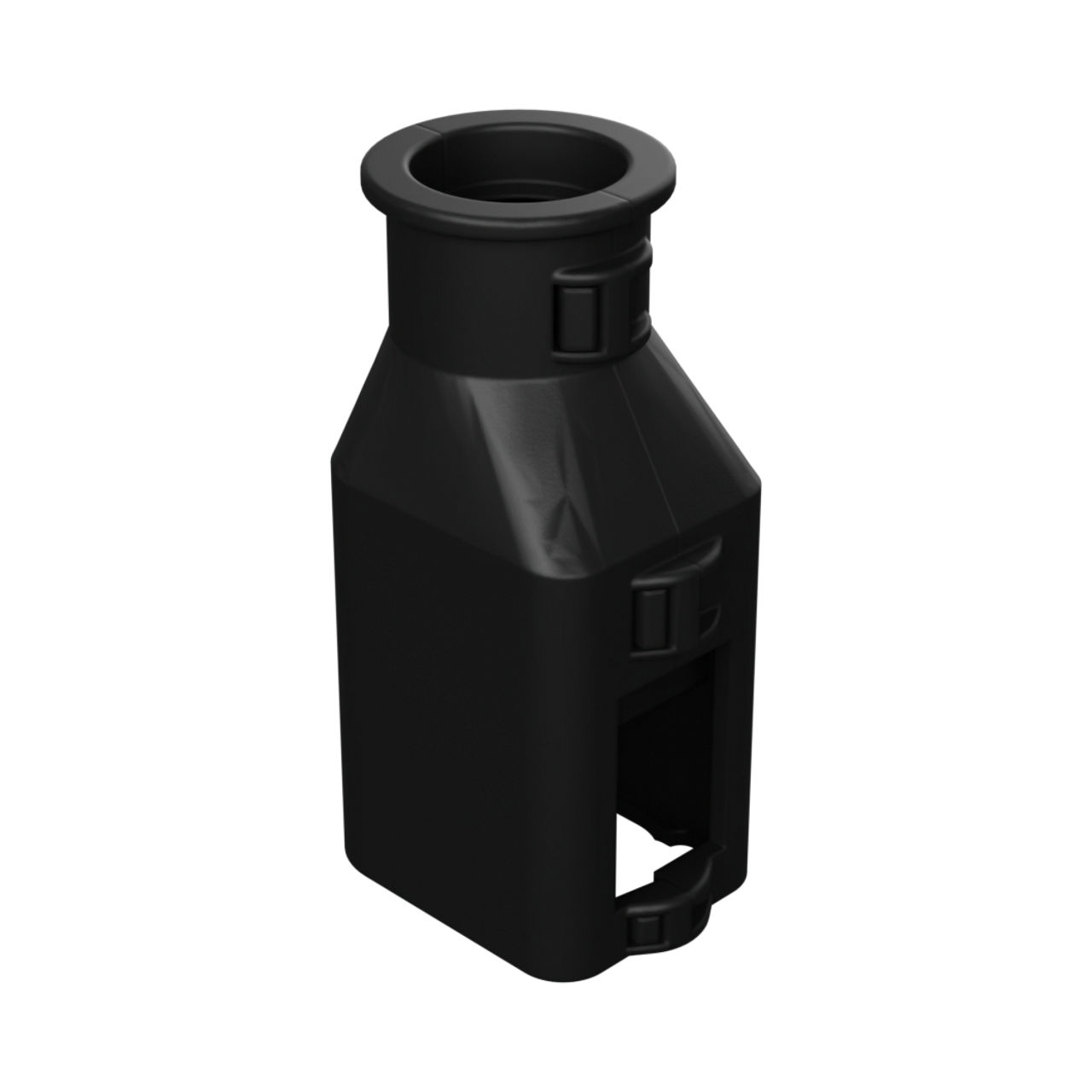

	Molex 34951-0610	MX150 Backshell, Receptacle, 6 Circuit with Rib
	Molex 43025-0800	Micro-Fit 3.0 Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 52213-0211	Mizu-P25 2.50mm Pitch Waterproof Wire-to-Wire Receptacle Housing, 2 Circuits, Black

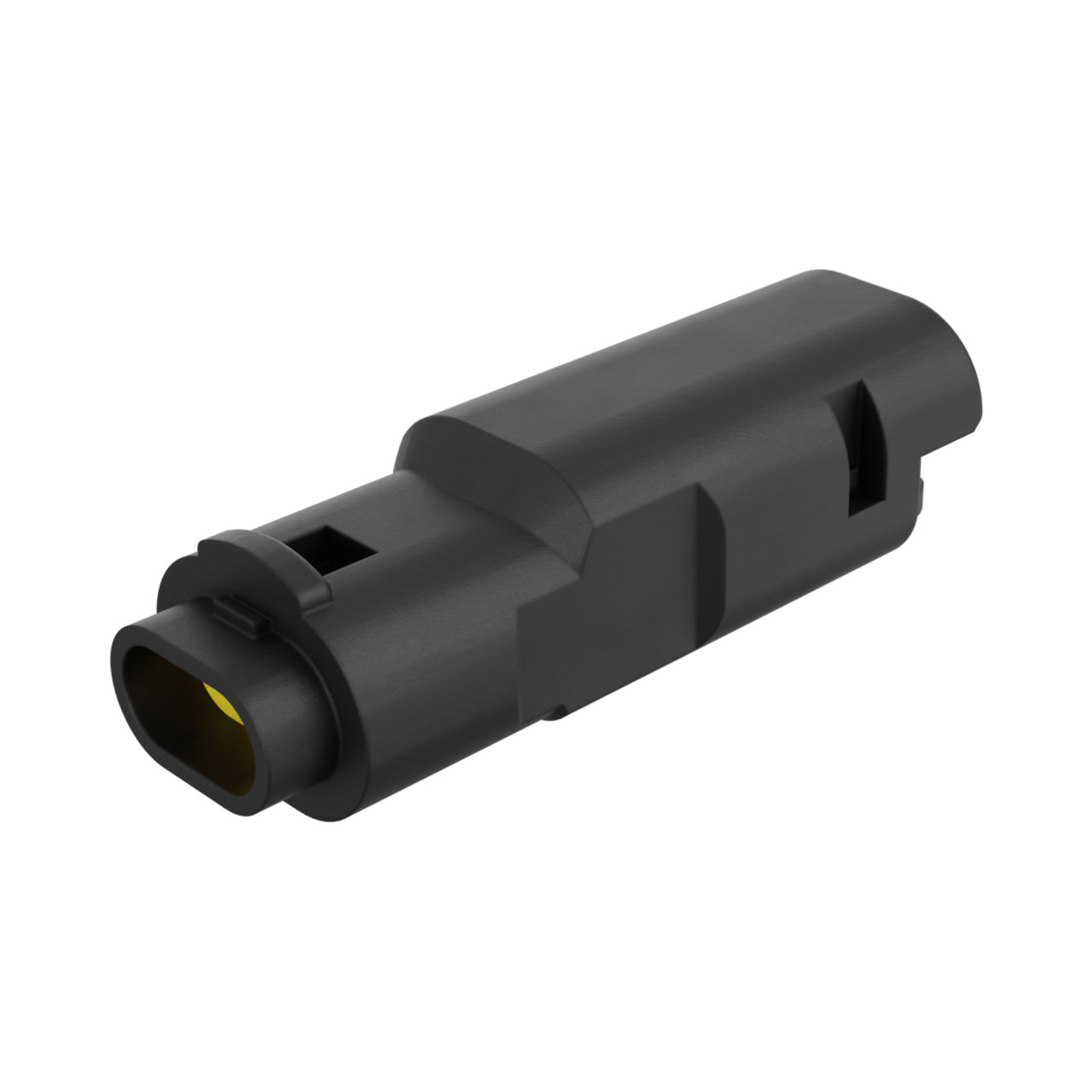

	Molex 52266-0211	Mizu-P25 2.50mm Pitch Waterproof Wire-to-Wire Plug Housing, 2 Circuits
