| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 33011-3004 |
| Series: | 33011 - MX150 |
| Connector Type: | MX150 |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Performance Alloy (HPA) |
| Contact Plating: | Silver |
| Voltage: | 14 V DC |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Silver |
| Contact Mating Area Plating Thickness: | .762 µm |
| Contact Termination Plating Thickness: | .508 µm |
| Wire Size: | .35 - .5 mm² |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1.7 mm |
| Part Aliases: | 0330113004 |
| SKU: | MOL33011-3004 |
33011-3004
Specifications
Detailed Description

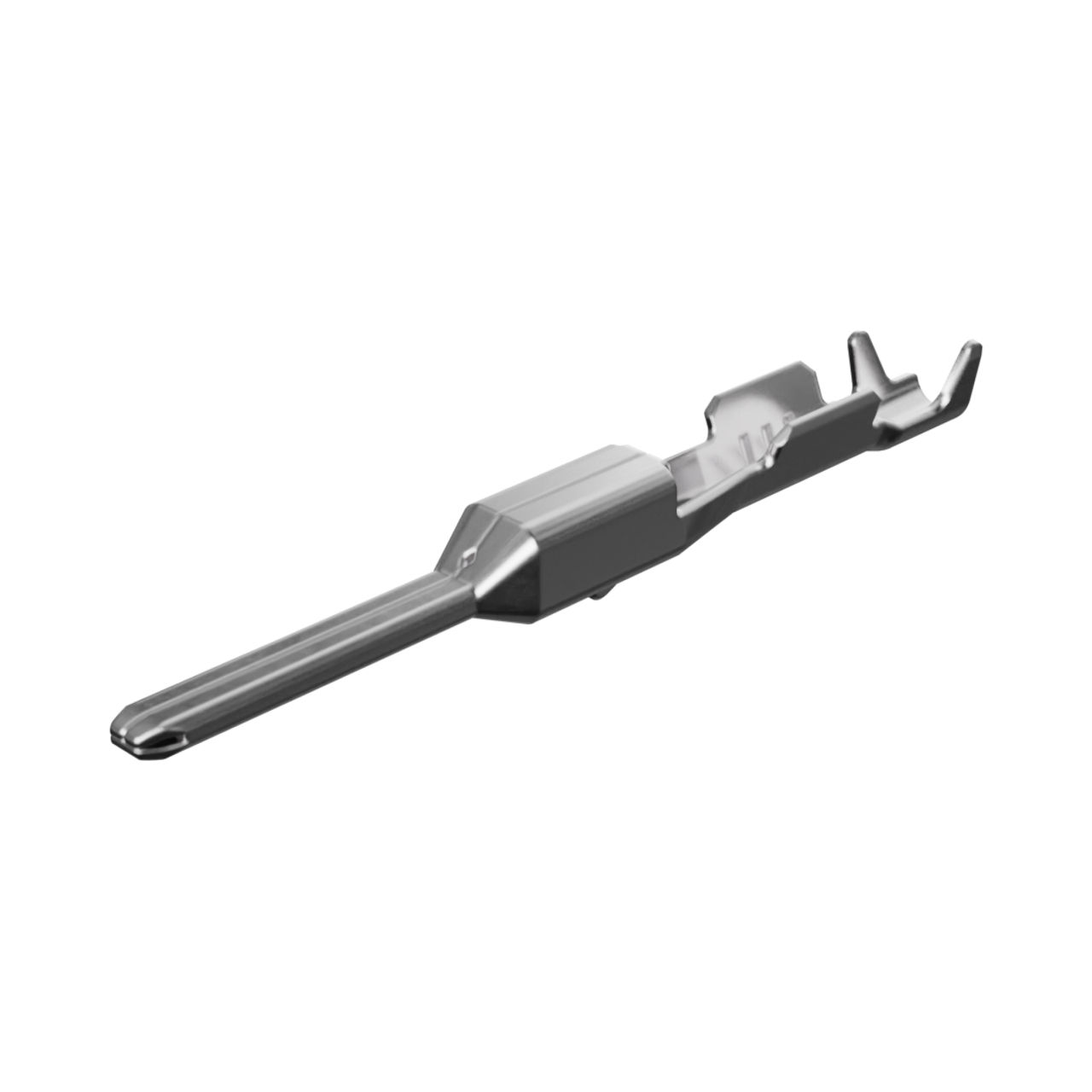

Introducing the 33011-3004, a high-performance MX150 Male Terminal designed for reliable power connections in automotive applications. With silver plating and a Grip Code M3 for enhanced durability, this terminal is perfect for use in sealed environments. The contact material thickness of 0.30mm ensures a secure connection, while accommodating wire sizes ranging from 0.35 to 0.5 mm². With a voltage rating of 14 V DC and ROHS compliance, this terminal meets industry standards for safety and performance. Whether for wire-to-wire or wire-to-board connections, the MX150 Male Terminal guarantees efficient power transmission in any automotive system. Available for immediate shipment.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 33482-2423 |  | |
 | Molex 33482-3673 | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/14/2017 | 501651 - Capacity change or tool replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling. | Download | |||
| 06/05/2015 | GCM 10678251 - New, Modified, Or Replacement Tooling. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 33011-3004 |
| Other Names: | 0330113004 |
