| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 33011-1008 |
| Series: | 33011 - MX150 |
| Connector Type: | MX150 |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Performance Alloy (HPA) |
| Contact Plating: | Gold |
| Voltage: | 14 V DC |
| Packaging: | Reel |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Wire Size: | .35 - .5 mm² |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1.7 mm |
| Product Name: | MX150 |
| Part Aliases: | 0330111008 |
| SKU: | MOL33011-1008 |
33011-1008
Specifications
Detailed Description

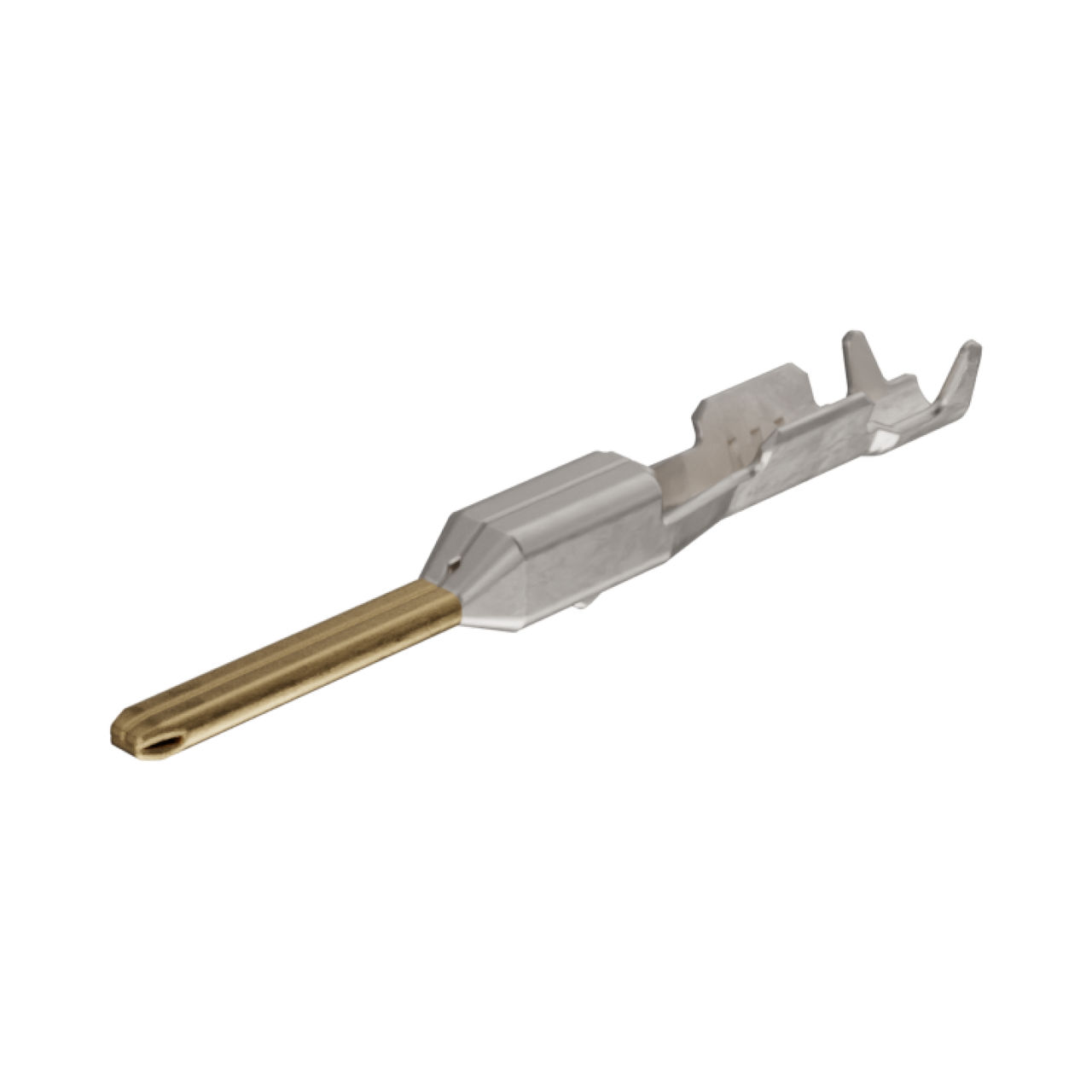

The MX150 Male Terminal is a high-performance connector designed for use in automotive applications. Featuring gold plating and a Grip Code M3, this terminal ensures reliable conductivity and durability in harsh operating conditions. Its right reel payoff design allows for efficient and convenient installation. With a contact material thickness of 0.30mm, it is ideal for use in sealed applications. The MX150 is the preferred terminal for use with 0.35-0.50mm wires, making it a versatile and essential component in automotive electrical systems. RoHS compliant and with a voltage rating of 14 V DC, this terminal meets industry standards for safety and environmental responsibility. Available in stock, it is ready for immediate deployment in automotive manufacturing processes.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 33482-2423 |  | |
 | Molex 33482-3673 | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 10/03/2016 | 501151 - Capacity change or tool replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 33011-1008 |
| Other Names: | 0330111008 |
