| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 33011-1004 |
| Series: | 33011 - MX150 |
| Connector Type: | MX150 |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Performance Alloy (HPA) |
| Contact Plating: | Gold |
| Voltage: | 14 V DC |
| Packaging: | Reel |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 16 AWG, 18 AWG, 20 AWG, .75 - 1 mm² |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 2.54 mm |
| Product Name: | MX150 |
| Part Aliases: | 0330111004 |
| SKU: | MOL33011-1004 |
33011-1004
| Heilind Number: | MOL33011-1004 |
| Manufacturer: | Molex |
| Manufacturer Number: | 33011-1004 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description

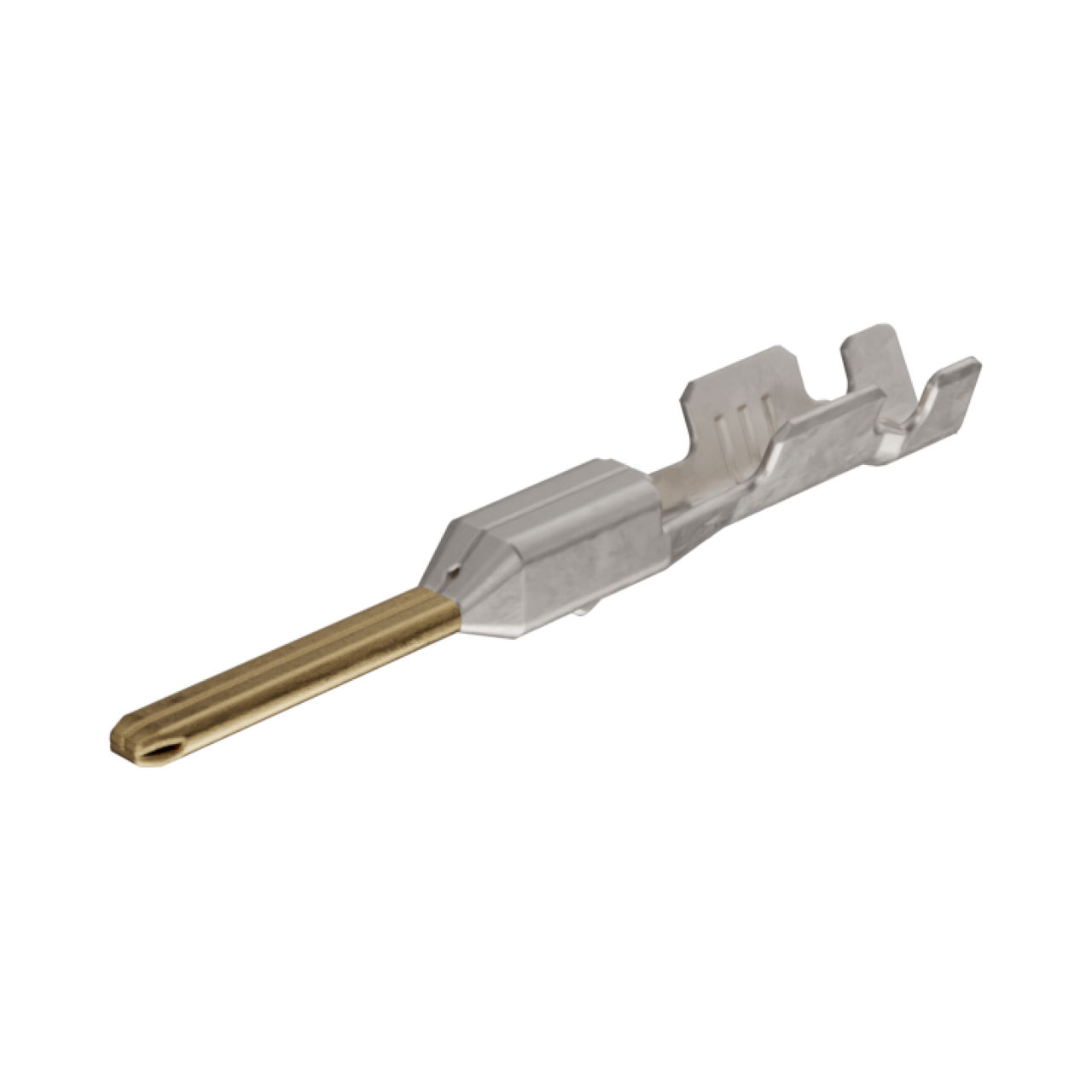

Introducing the MX150 Male Terminal, a high-performance connector designed for power applications in the automotive industry. Featuring gold plating for enhanced conductivity and durability, this terminal is suitable for use with 16, 18, and 20 AWG wires. The right reel payoff design ensures convenient handling during assembly. With a voltage rating of 14 V DC, it meets the demands of automotive power systems. The crimp or compression termination method offers secure and reliable connections. Constructed with a High Performance Alloy (HPA) contact material, plated with gold for superior corrosion resistance, this terminal guarantees long-lasting performance. RoHS compliant and available for immediate shipping, the MX150 is the perfect solution for your automotive connector needs.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 33482-2423 |  | |
 | Molex 33482-3673 | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 10/03/2016 | 501151 - Capacity change or tool replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling. | Download | |||
| 06/05/2015 | GCM 10678251 - New, Modified, Or Replacement Tooling. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 33011-1004 |
| Other Names: | 0330111004 |
