| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 33011-0008 |
| Series: | 33011 - MX150 |
| Connector Type: | MX150 |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Performance Alloy (HPA) |
| Contact Plating: | Gold |
| Voltage: | 14 V DC |
| Packaging: | Reel |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Wire Size: | .35 - .5 mm² |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1.7 mm |
| Product Name: | MX150 |
| Part Aliases: | 0330110008 |
| SKU: | MOL33011-0008 |
33011-0008
| Heilind Number: | MOL33011-0008 |
| Manufacturer: | Molex |
| Manufacturer Number: | 33011-0008 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:

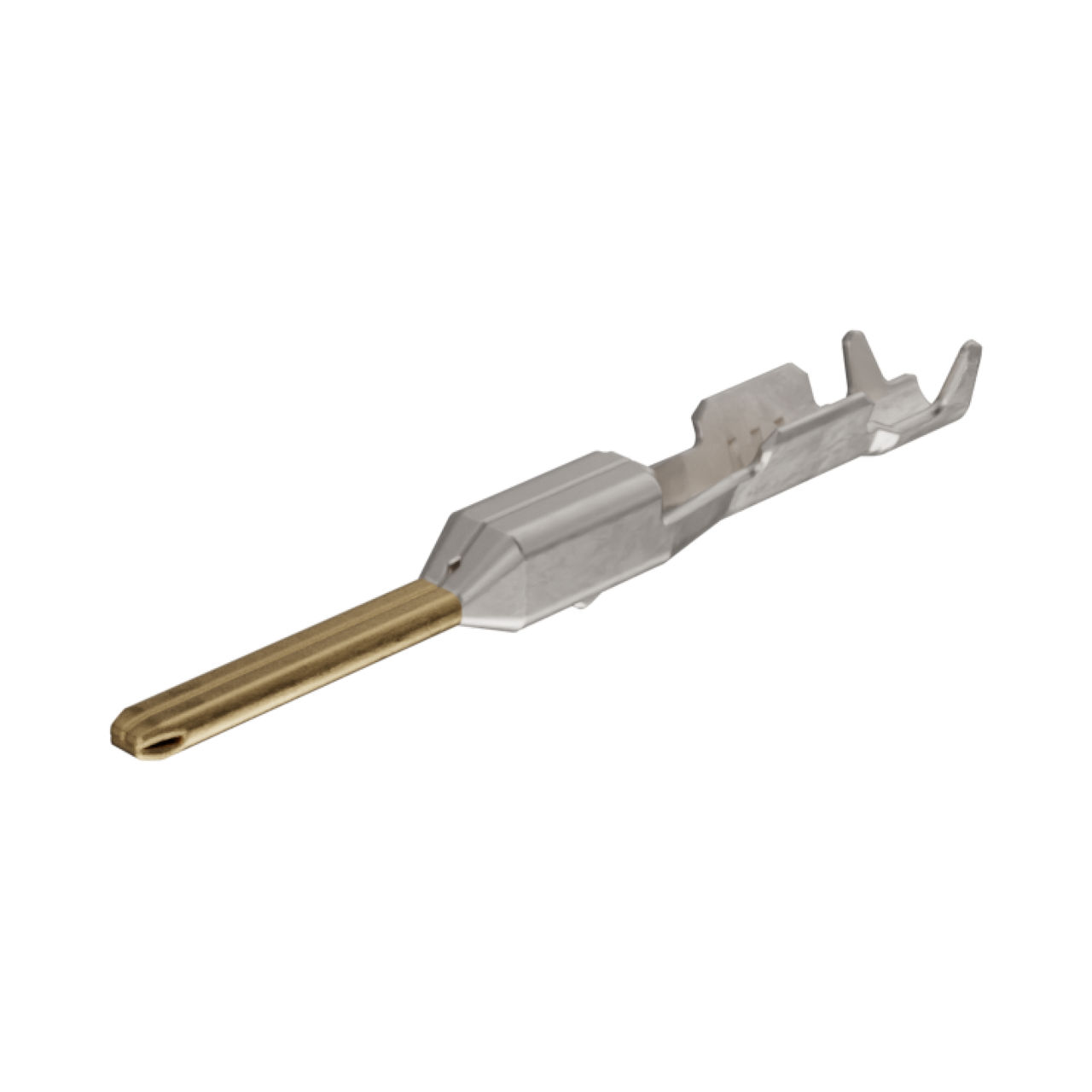

MX150 Male Terminal, Gold Plating, Grip Code M3, Left Reel Payoff, Contact Material Thickness 0.30mm , Preferred Terminal for use in Sealed Application with 0.35-0.50mm
More >>Specifications
Detailed Description
The MX150 Male Terminal is a high-performance connector designed for use in automotive applications, featuring gold plating for optimal conductivity. With a Grip Code M3 and Left Reel Payoff configuration, it offers ease of installation. Constructed from High Performance Alloy (HPA) with a contact material thickness of 0.30mm, this terminal is durable and reliable, even in sealed environments. Suitable for wire sizes ranging from 0.35 to 0.5 mm², it is ideal for power circuit applications, with a voltage rating of 14 V DC. RoHS compliant and available in bulk packaging on reels, the MX150 is a versatile and cost-effective solution for your automotive connector needs.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 33482-2423 |  | |
 | Molex 33482-3673 | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 06/05/2015 | GCM 10678251 - New, Modified, Or Replacement Tooling. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 33011-0008 |
| Other Names: | 0330110008 |
